apply a filter to the curve loaded from a file using a tcl script

Atul Hande_22365

Hello All,

I am plotting a curve from a file using the code below , i want to filter the same curve immediately do we have any easy way to do that

filter formula looks somewhat like this : iso6487(0.001*trim_depvect(p1w1c3.x,p1w1c3.y),p1w1c3.y,60)



pw_cv1_x SetType "file"
pw_cv1_y SetType "file"

pw_cv1_x SetFilename $input_file
pw_cv1_y SetFilename $input_file

pw_cv1_x SetDataType $X_Type
pw_cv1_x SetRequest $X_Request
pw_cv1_x SetComponent $X_Component

pw_cv1_y SetDataType $Y_Type
pw_cv1_y SetRequest $Y_Request
pw_cv1_y SetComponent $Y_Component

#pw_cv1_$ui SetName "peel_Target"

pwcl_$ui Recalculate
pwcl_$ui Autoscale
pwcl_$ui Draw

Adriano Koga_20259

Hi,

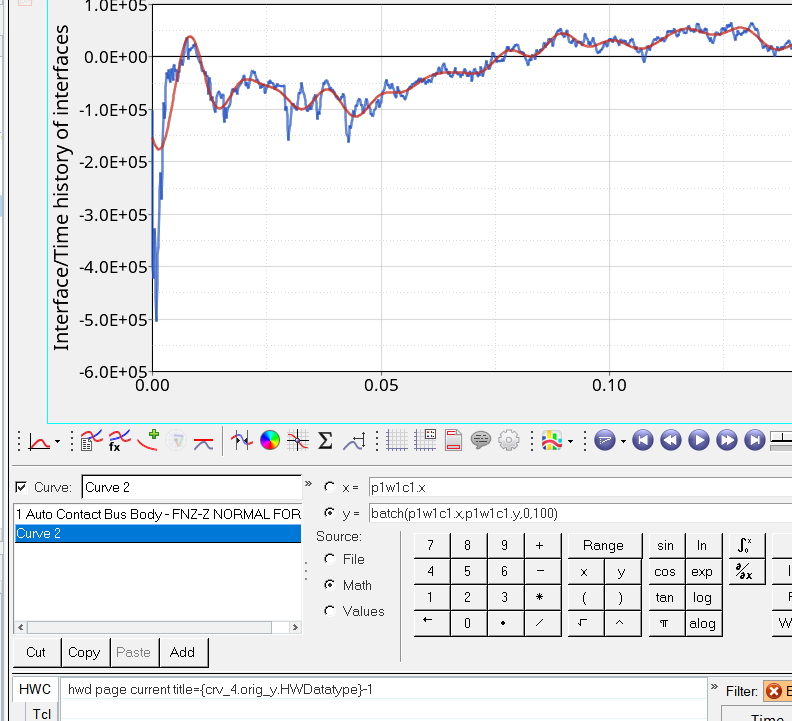

in this case you need to change the SetType to Math, and then set expressions for X and  Y, just like you would need manually. Add another curve, SetType to Math, then use SetExpression to assign the X and the Y expressions for your script.

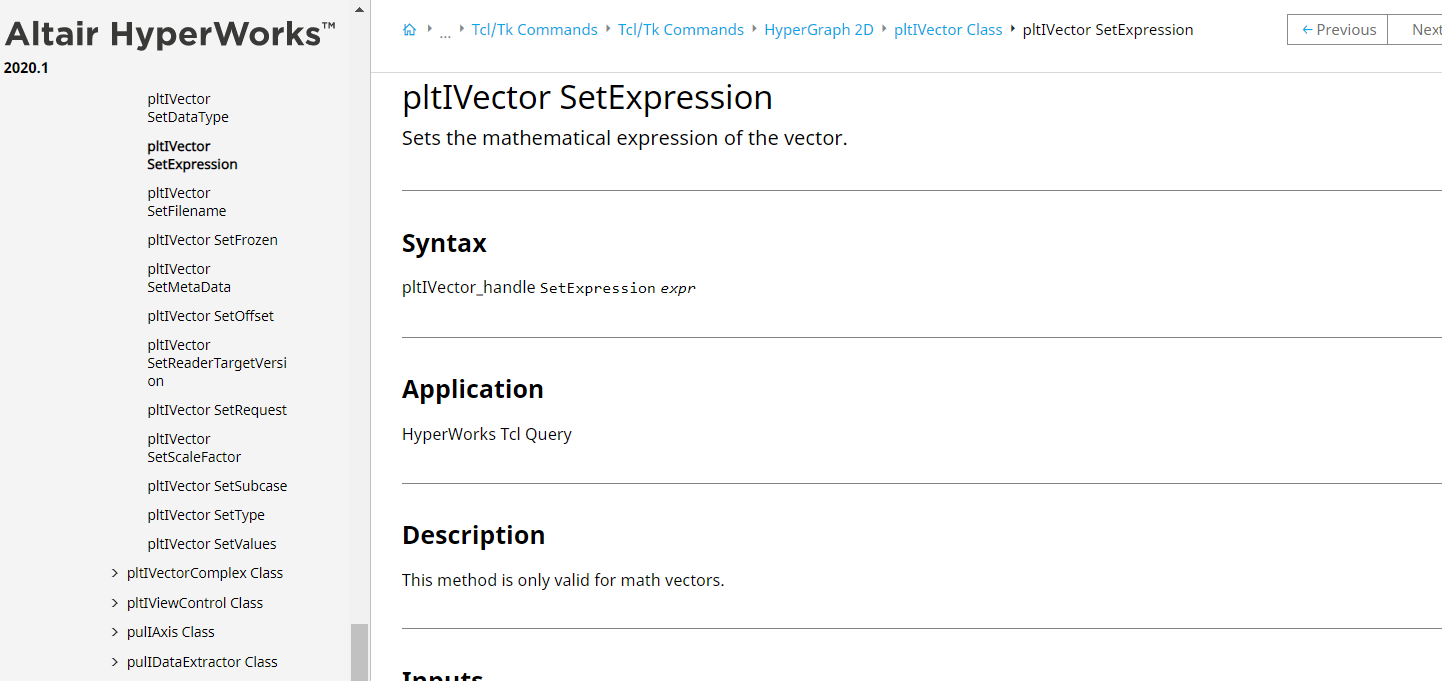

Take a look at the help for SetExpression command for the vector Object. (take a look at the HWDesktop Reference Guide)
