Limitation in choosing the nodes in Hypergraph plot

In Hypergraph, is there a limitation for the no. of nodes to be selected for plotting the magnitude of ERP output.

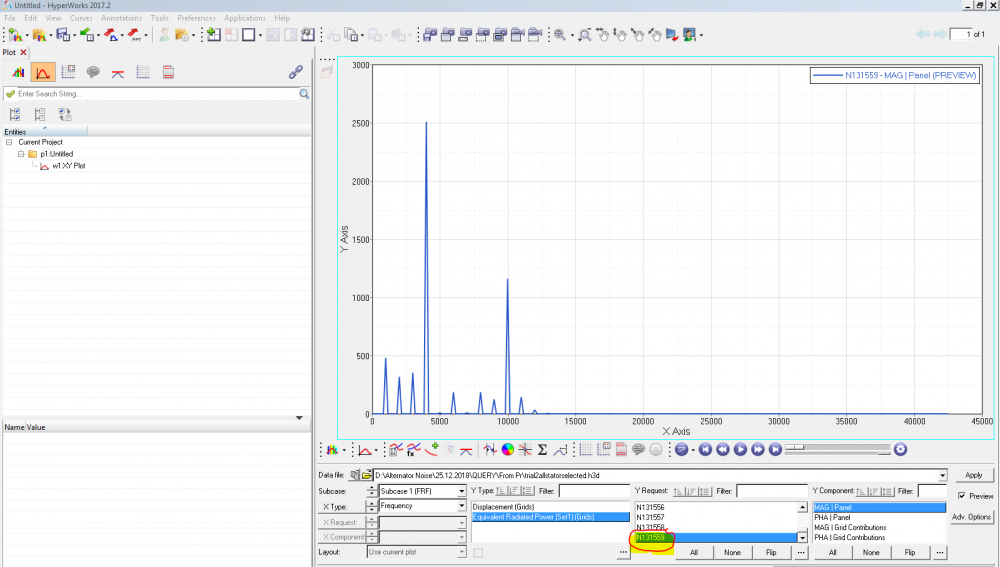

Attached the snapshot and highlighted the region for understanding.

Total nodes in model = 600000

No, of node lists shown = N1 to N131559

Regards,

Karthik

<?xml version="1.0" encoding="UTF-8"?>

Find more posts tagged with

English

HyperGraph

Snapshot is missing..Which version of HyperGraph you are using?

Hi Rahul,

Snapshot attached already in edit.

Version 2017.

ERP panel results are output to punch format.Please try loading .pch files for same.

Thanks.

I am able to get it. Is there a way to obtain the numerical values for the graph data?

Regards,

Karthik

Export > Curve> CSV

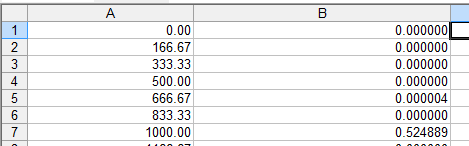

The csv data displays a diff value when compared to the plot.

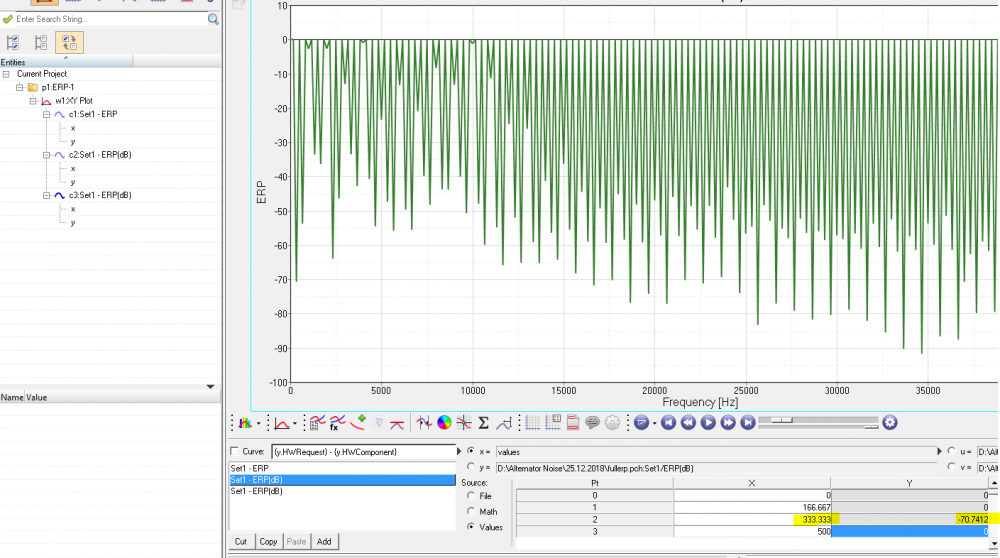

For example for 333 Hz, 70 db is there in the plot, whereas the csv data yields 0?

Regards,

Karthik

<?xml version="1.0" encoding="UTF-8"?>

How about exporting as XY data in .dat format.
