Option in Hypergraph for picking selective components

karth

Hi,

In hyperview window, selective components of an assembly can be made seen and all others hidden.

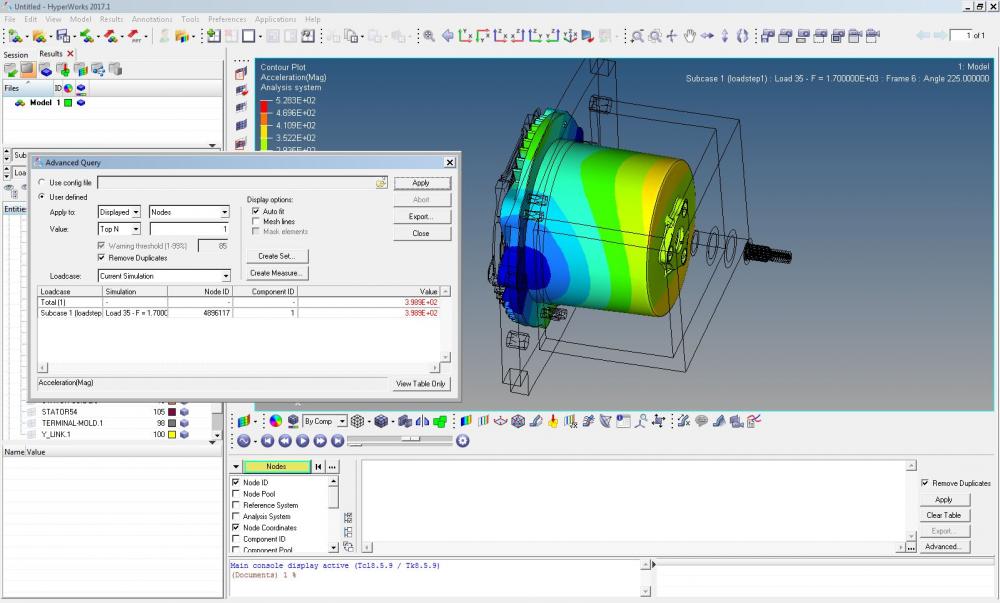

And then the required outputs and their max. values  can be taken for those selected components only.(Reference:Attached image)



Is there a similar option available for hypergraph. Because, in hypergraph, the output is being shown considering all the components?



Thanks.



<?xml version="1.0" encoding="UTF-8"?>

Rahul Rajan_21763

Did you try measure panel in Hyperview to plot curve in Hypergraph.
