Skew quality in Volume mesh

alpha_21885

Hi,

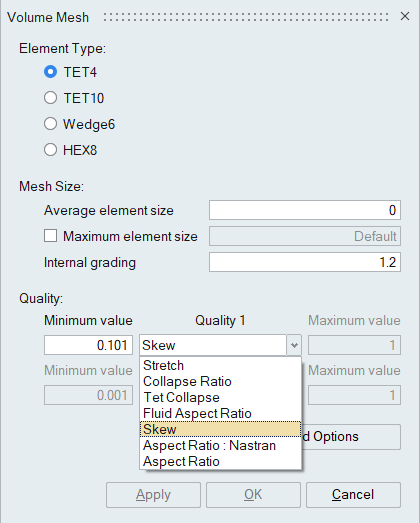

I am using SL 2019.2 and when create Volume Mesh, the mesh criteria control is always 'SKEW'.

I often use STRETCH to get better FE shape but the setting cannot remember, then everytime I have to set again and again.

May I know any reason SL 2019.2 recommend using SKEW?

Santhoshkumar

Hi,



Go to File > Preferences > Application and turn on 'Enable CFD modelling' toggle. This will automatically set the skew as a default quality in volume mesh dialog.



Please try this and let me know if you have any difficulty.

alpha_21885

Thanks Santhosh for your useful information.
