How to check time-step in SL(Radioss/LSdyna)?

alpha_21885
alpha_21885 Altair Community Member
edited October 2020 in Community Q&A

Hi,



I am running some drop test for electronic cover parts (Radioss).

However, I have not found any tool to check time step in SL.



May I know your advice on this?

Thanks

Tagged:

Answers

  • Nantha
    Nantha New Altair Community Member
    edited May 2020

    Hello Alpha



    Can u kindly elaborate on your query.





    Thanks & Regards

    Nantha Kumar N

  • alpha_21885
    alpha_21885 Altair Community Member
    edited May 2020

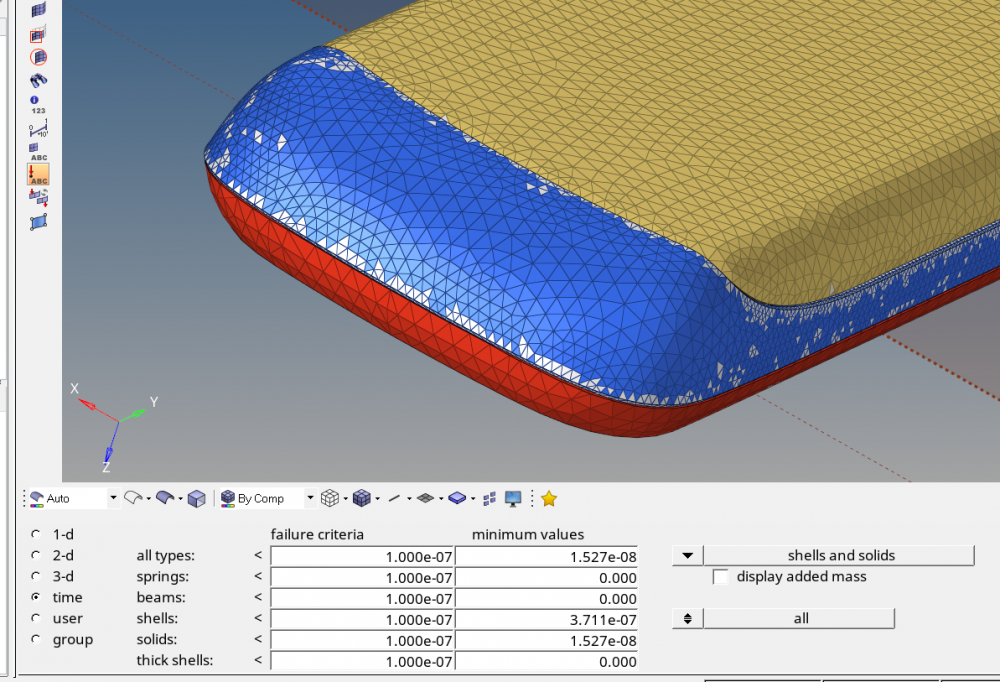

    In HM, after assign Material or Property for my parts (2D & 3D), I can check the estimated time step. But I do not know how to do in SL.

    This is very important function for impact analysis to reduce computation time.

    <?xml version="1.0" encoding="UTF-8"?>399901607_nh.thumb.png.e60b6637ffd24f6faed0f96a1d5f8113.pngHope this is clear for you.



  • Nantha
    Nantha New Altair Community Member
    edited May 2020

    Hello Alpha



    Thanks for your explanation.

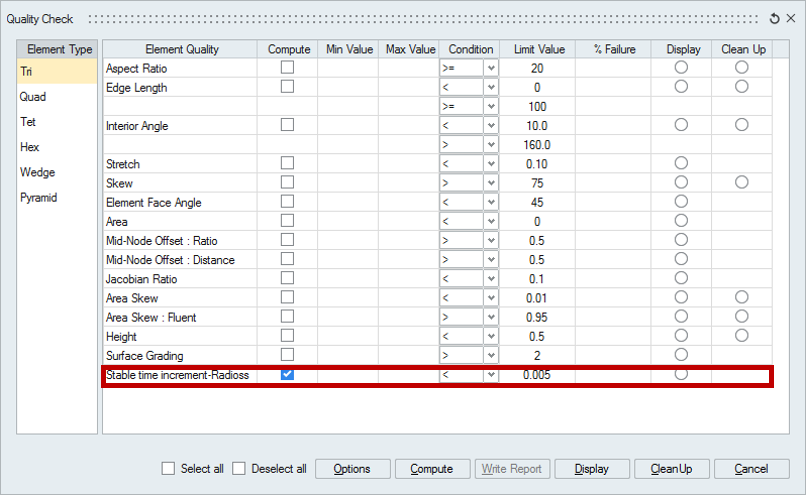

    Currently in SimLab you can check the time step using the Quality Check tool from Mesh > Verify > Quality.



    After applying Material & Properties, select the bodies and check the time steps based on the appropriate element types.








    Kindly let us know if you have any concerns.





    Thanks & Regards

    Nantha Kumar N
