Fluxmotor plots

Hi, I am trying to design an electric motor for a car with using Fluxmotor.

When I am done running the simulation, I get the Torque speed plot.

I would like to know if that plot is always the maximum torque and if there is a way to show also the continuous torque, since I want to know both.

I am a bit lost and some help would be much appreciated

Find more posts tagged with

English

FluxMotor

v2020

Accepted answers

All comments

fzidat

Hello Alvaro;

First of all, we do have some online training, you may have a look on them, so you can participate one one of them.

To answer you question, when you use a sine wave test, you will have the enveloppe of the performances, and the efficiency mapp which is actually all the working points that your machine can deliver with the maximum voltag, maximum current, MTPV or MPTA command.

Each point of this efficiency mapp is actually in steady state and using and ideal supply which sine wave shape voltage.

I hope this answered your question ?

Regards

Alvaro_21870

Hello Alvaro;

First of all, we do have some online training, you may have a look on them, so you can participate one one of them.

To answer you question, when you use a sine wave test, you will have the enveloppe of the performances, and the efficiency mapp which is actually all the working points that your machine can deliver with the maximum voltag, maximum current, MTPV or MPTA command.

Each point of this efficiency mapp is actually in steady state and using and ideal supply which sine wave shape voltage.

I hope this answered your question ?

Regards

Hi Farid,

That helped me but I still have many questions about this topic since I am really an amateur when it comes to electric motors.

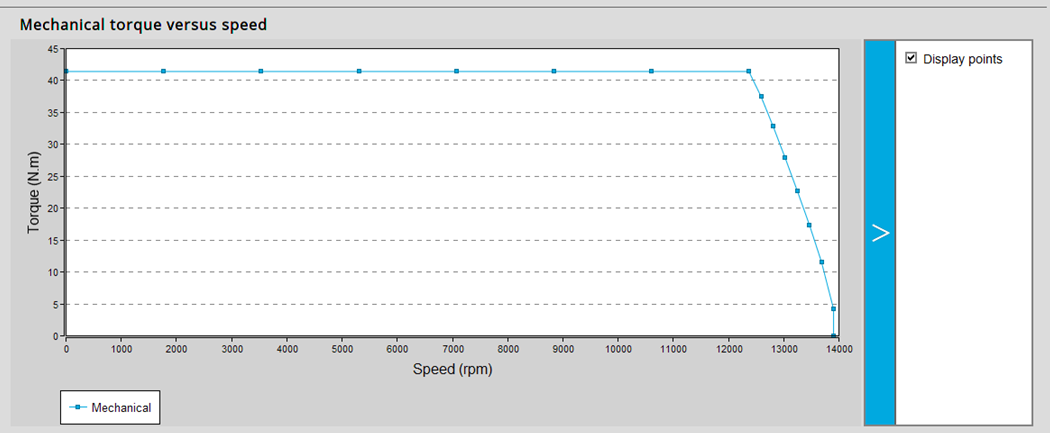

So the motor curve here for example,

That is the maximum torque I can get in a steady state right?

But how can I know the maximum torque my motor can reach during just a few seconds ?

Usually when I have a torque-speerd curve I get 2 graphs, the steady state torque and the maximum torque and the area between those is the intermittent area.

But in the one flux gives me there is only one area.

Also, is there a way to show also the field weakening? to see what speed I could reach ?

Thank you in advance and apologies for my ignorance

PS: Is there a way I could have a conversation with somebody from Altair about the fluxmotor software ? I have watched the tutorials but there is really not a lot explained in those


fzidat

Hello Alvaro;

You are welcome! please find bellow the answers to your questions:

1- That is the maximum torque I can get in a steady state right?

==> Yes, it is for the settings you put.

2- But how can I know the maximum torque my motor can reach during just a few seconds ?

==> This a transient computation, you should export the project to Flux 2D, and replace the current sources by the voltage sources, and then you can have the transient stage. You can see the transient behavior for the torque and the current as well.

3- But in the one flux gives me there is only one area.

==> The picture corresponds to the enveloppe of map, each point of this curve correspond to the maximum torque you can have for the corresponding speed, and the test settings you put.

4- PS: Is there a way I could have a conversation with somebody from Altair about the fluxmotor software ? I have watched the tutorials but there is really not a lot explained in those

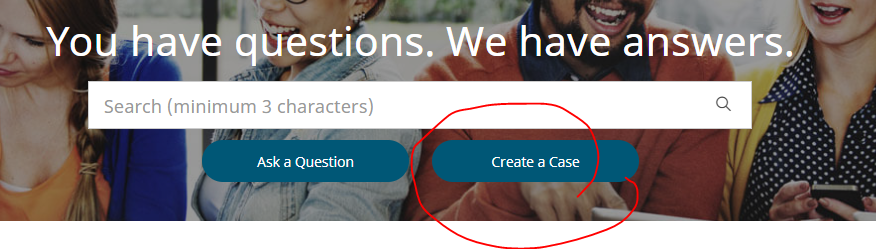

==> Yes, please instead of asking question, create a case, you will be answered then by a colleague. If you don't manage please feel free to ask again, i will re orient you to the right persons.

Regards
