Analysis of the Curved Column

Sanka Dasanayaka
Sanka Dasanayaka Altair Community Member
edited June 2023 in Community Q&A

I tried to model the following example question in Roak's Formulas for Stress and Strain book. General equation for the deflection of the load is shown in the Figure 2.  10587755.305 psi is used as the Young's modulus (E). So, the final result should be 7.33e-06 inches which is not the value I got from SimSolid. Attached files are as follows.

Figure 1- Question

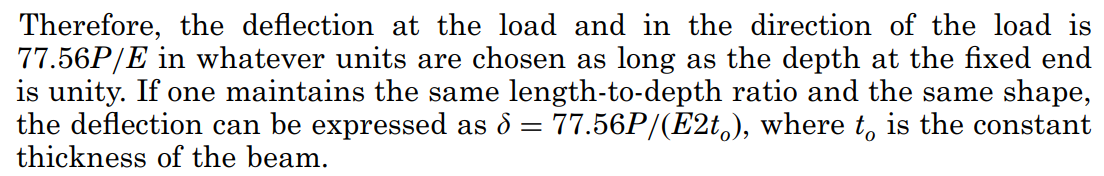

Figure 2 - Equation

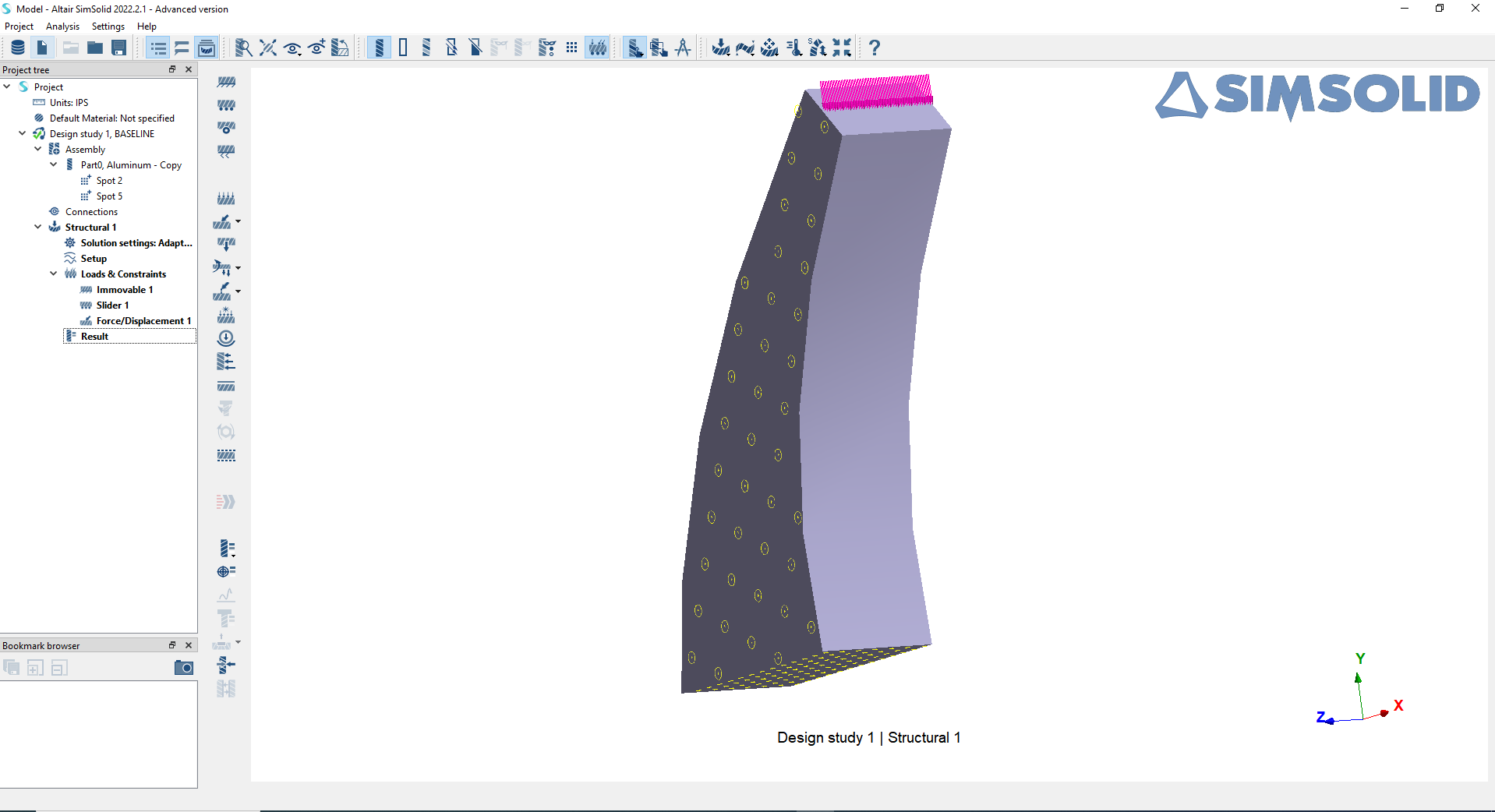

Figure 3 - Model Setup

Figure 4 - Results

Requesting your help to get accurate results.

Tagged:

Answers

  • Adriano A. Koga
    Adriano A. Koga
    Altair Employee
    edited June 2023

    what solver settings are you using? Adapt for stiffness?

    If so, try changing to adapt for stress, and run again to get a better accuracy.

  • Sanka Dasanayaka
    Sanka Dasanayaka Altair Community Member
    edited June 2023
    Adriano A. Koga_21884 said:

    what solver settings are you using? Adapt for stiffness?

    If so, try changing to adapt for stress, and run again to get a better accuracy.

    Thank you for your reply. Yes I tried that. Now the answer is 8.44e-06 which is not close enough.
