output request (Angular velocity) in motion view

Altair Forum User
Altair Forum User
Altair Employee
edited October 2020 in Community Q&A

Hi there,



How to give output request to find the angular velocity of a link at a certain point in motion view

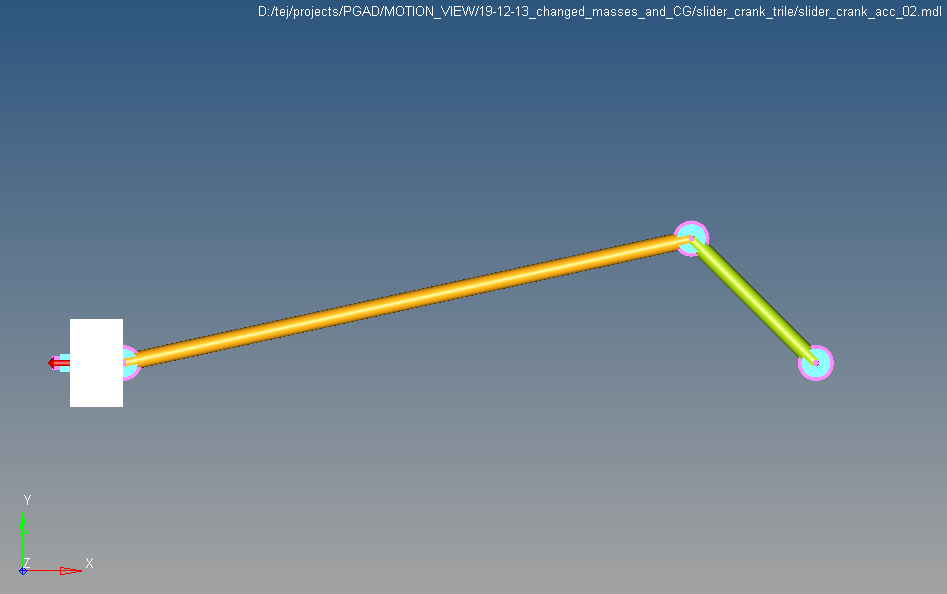

Here I have considered a very simple Slider crank mechanism (see attached image), I was applied a velocity as input on the slider.

For this input velocity, I want to check the angular velocity of the crank.



Thank in advance  image/emoticons/default_smile.png' alt=':)' srcset='<fileStore.core_Emoticons>/emoticons/smile@2x.png 2x' width='20' height='20'>



<?xml version="1.0" encoding="UTF-8"?>post-9665-0-95194000-1387462391_thumb.pn

Answers

  • Altair Forum User
    Altair Forum User
    Altair Employee
    edited June 2014

    Hi Ravi Teja,



    You can use function WX ,Wy, WZ to output angular velocity from MotionView/MotionSolve.



    in the output panel, change the property type to expression and write an expression of the type WY(I, J, K) This outputs the rotational velocity about Y axis.



    Please refer to Help documents for more information image/emoticons/default_smile.png' alt=':)' srcset='/emoticons/smile@2x.png 2x' width='20' height='20'>

  • Altair Forum User
    Altair Forum User
    Altair Employee
    edited November 2018

    Hi ,

    How can I generate speed plots in motion view.

    Kindly suggest.

    Thanks

    Sunil
