Non linear spring

Altair Forum User

Altair Employee

Updated Oct 4, 2020 by Altair Forum User

Dears,

I want to simulate a nonlinear spring. i have an experimental data of force and displacement, have input the data for the spring constant as a curve where the x-axis=displacement, y-axis=force. I have applied a force on the spring, but always getting the same displacement for different values of forces. Can any one help please

Unable to find an attachment - read this blog

Find more posts tagged with

MotionView/MotionSolve

Sort by:

1 - 5 of 51

Altair Forum User

Altair Employee

OP

Updated May 18, 2015 by Altair Forum User

Hi Aftab,

The curve is not defined properly in your model. Please check this.

Altair Forum User

Altair Employee

OP

Updated May 18, 2015 by Altair Forum User

Aftab,

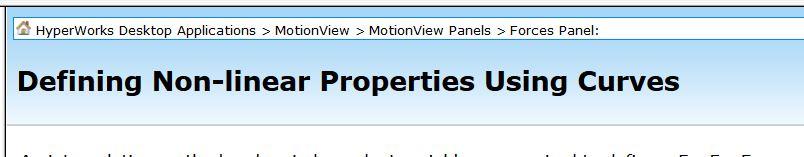

FYI, refer to the Defining Non-linear Properties Using Curves in MotionVIew help.

<?xml version="1.0" encoding="UTF-8"?>

Altair Forum User

Altair Employee

OP

Updated May 18, 2015 by Altair Forum User

Hi Aftab,

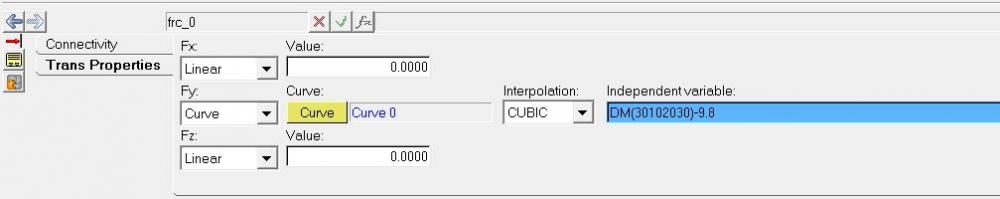

I have changed the force value in the curve randomly and I can see the change in output force.

Make sure you have given the right independent variable.

<?xml version="1.0" encoding="UTF-8"?>

Altair Forum User

Altair Employee

OP

Updated Oct 24, 2018 by Altair Forum User

Hi,

I'm interested in the same topic. I need to model a nonlinear spring having a curve. I tried to download the .zip file but it is corrupted.

What should I do in order to realize a mass spring damper system using a nonlinear characteristic?

Altair Forum User

Altair Employee

OP

Updated Oct 26, 2018 by Altair Forum User

You can simply create a mass and spring but provide nonlinear curve as suggested
