Hi friends plz guide me to plot iihs intrusion plot and how to interprete it.

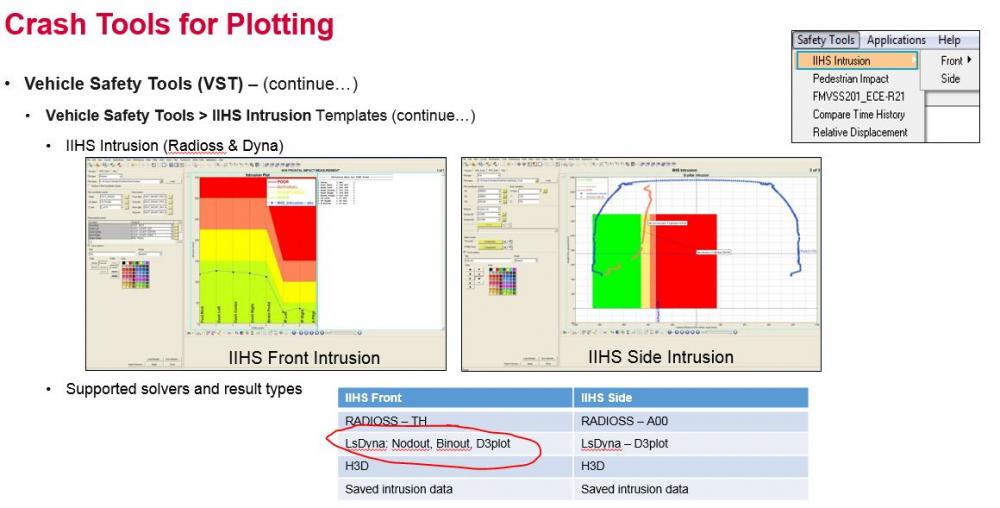

The Vehicle Safety Tools in HyperView has the templates to plot IIHS front intrusion and IIHS side structure intrusion plots for RADIOSS and DYNA files. IIHS Intrusion Templates are available in our Help Menu.
Occupant protection during impact with vehicle interiors is an important safety parameter in any event of a vehicle crash. These intrusion tests are done according to the OEM specification of subsystem testing which was based on FMVSS.
i faced the same problem of IIHS INTRUSION plot ? the analysis is done in LS DYNA software and i want to plot the intrusion of the 40% front crash simulation, can you help me how to create reference coordinate system or (origin, YZ-plane and Z-axis)?

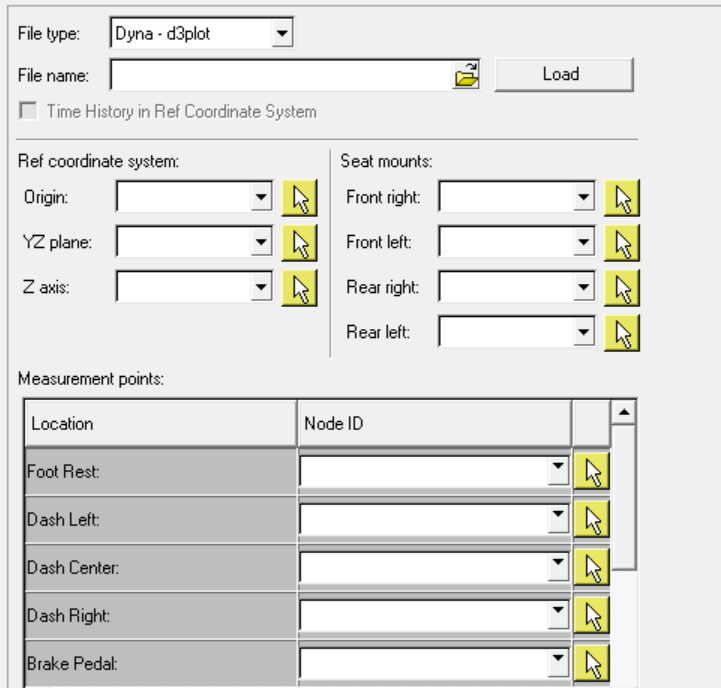

the hyper view template requires the following data
<?xml version="1.0" encoding="UTF-8"?>
Please check whether you have list of other files shown in screenshot to plot intrusion for front crash simulation.
