Has anyone done parametric optimization in optistruct-hyperstudy?

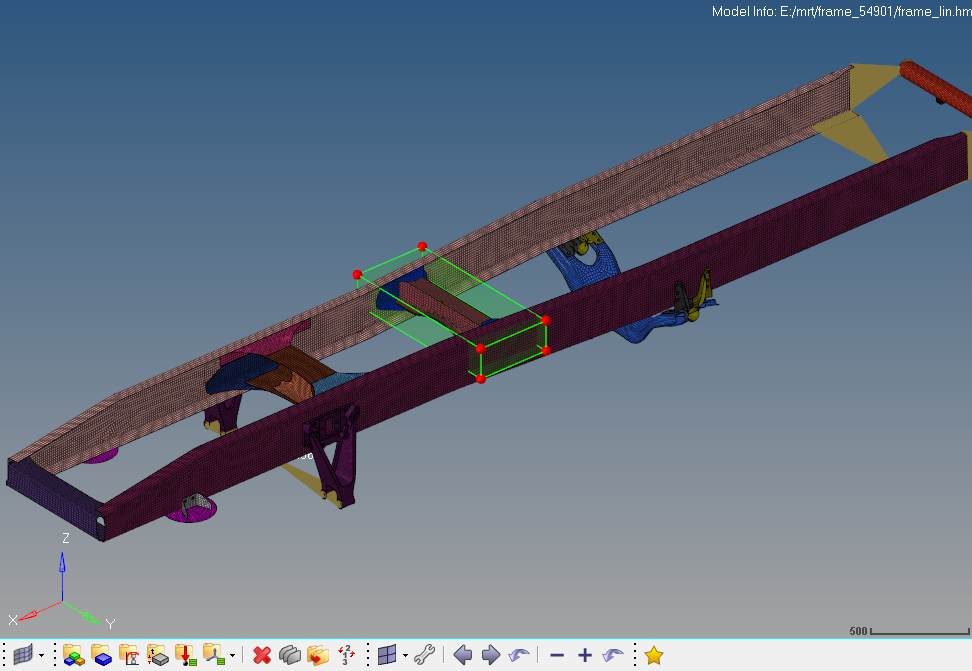

i want to do that crossbar can slide through frame. I defined morph volume. But i don't know how can i connect desvar and morph volume?

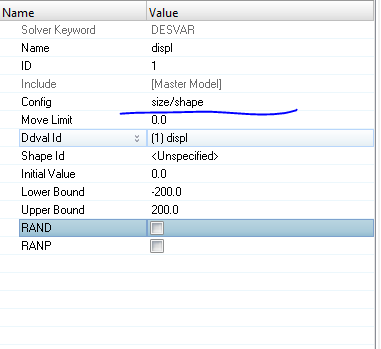

Is it right way? i have seen just size/shape configuration, so it's not my way.

i had tryed to save volume and looked for txt file. it doesn't consist elements, so i can't use it in hyperstudy.

could anyone explain me how does it works?=)



Thanks.

<?xml version="1.0" encoding="UTF-8"?>1.PNG

<?xml version="1.0" encoding="UTF-8"?>2.PNG

Welcome!

It looks like you're new here. Sign in or register to get started.

Answers

  • Rahul Rajan_21763
    Rahul Rajan_21763 New Altair Community Member
    edited June 2018

    First create desired shape using morphing (Morph volume/domain handle approach).Once the morphing is done, you can export shape variable from Hypermesh to HyperStudy.Refer HS-1021 and HS-1025 Tutorial.

  • Altair Forum User
    Altair Forum User
    Altair Employee
    edited July 2018

    @Rahul R i understand, but issue is in creating shape.

    i created morph volume. and how to create shape from volume?

  • Rahul Rajan_21763
    Rahul Rajan_21763 New Altair Community Member
    edited July 2018

    You can refer HyperMesh Morphing Tutorials for Morph Volume concept.

    HM-3550: Morph Volume

  • Altair Forum User
    Altair Forum User
    Altair Employee
    edited July 2018

    ok.

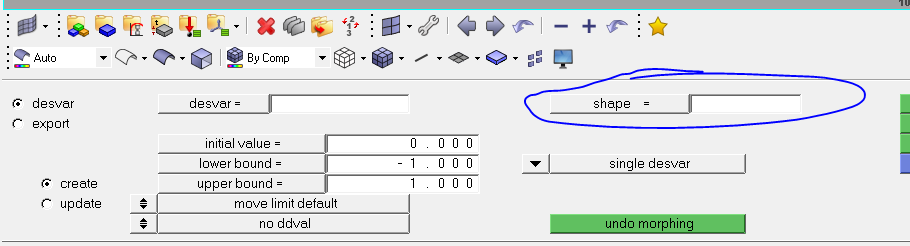

    But how does it help me to create 'shape' for assigning  desvar? i don't understand you @Rahul R. i'm just newbie in Altair Software.


  • Rahul Rajan_21763
    Rahul Rajan_21763 New Altair Community Member
    edited July 2018

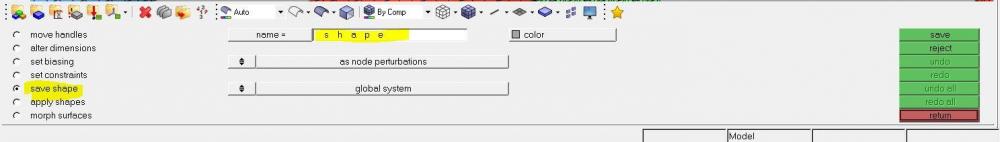

    Whenever you execute morphing operation using any approach(Domains/Handle,Morph volume or Map to geometry),you have option to save those shape as nodes perturbation.Then you can use those shape as design variable for optimization.

    <?xml version="1.0" encoding="UTF-8"?>Morphing with save shape.JPG

  • Altair Forum User
    Altair Forum User
    Altair Employee
    edited July 2018

    i did it, but i should move it. if i do not move it shape will not be saved. it was my problem. i had moved it to 0.001 mm and saved.

    thanks.

  • Rahul Rajan_21763
    Rahul Rajan_21763 New Altair Community Member
    edited July 2018

    Can you share the .hm or fem file to have a look ?

  • Altair Forum User
    Altair Forum User
    Altair Employee
    edited July 2018

    ok. but not now. thank you for your help offer. Can i take it latter? i try to do optimization model. if i have some complications with it i will send model to you, ok?

  • Altair Forum User
    Altair Forum User
    Altair Employee
    edited July 2018

    @Rahul R

    I’m interesting in 2 moment now:

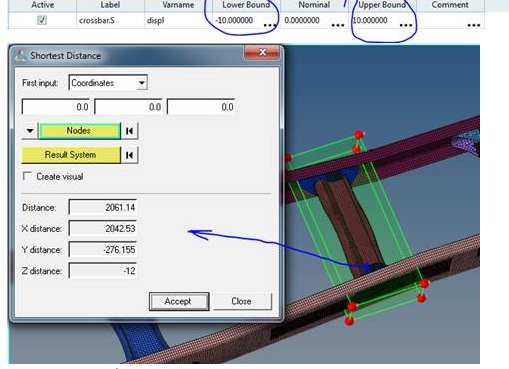

    1.       How to interpret this moment


    but as you can see in result:

    I think it’s not 10 mm…=)

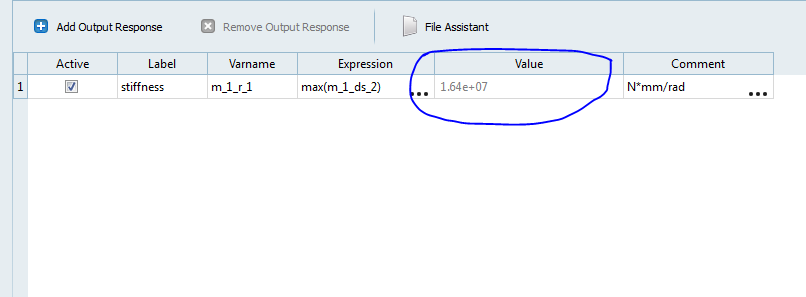

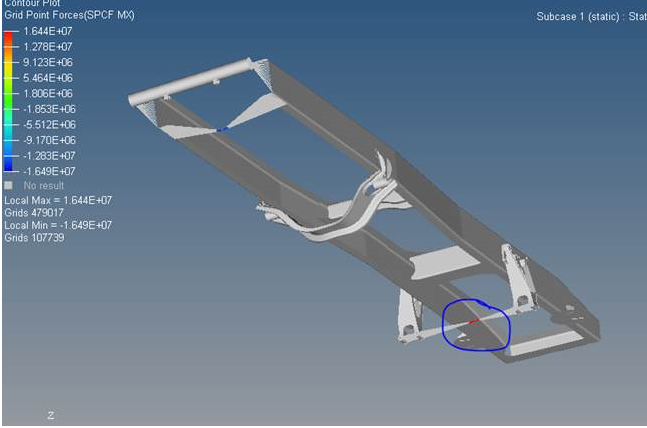

    2.       I want to do model that aim will be frame stiffness. So I am just solving 3 case of solution. But I want to solve 10,20,30… etc, and HyperStudy should look at SPCF MX at grid 479017. I don’t know how does it realize? It is very interesting work for me. I try to vary crossbar position and it thickness.




    Regards





  • Altair Forum User
    Altair Forum User
    Altair Employee
    edited July 2018

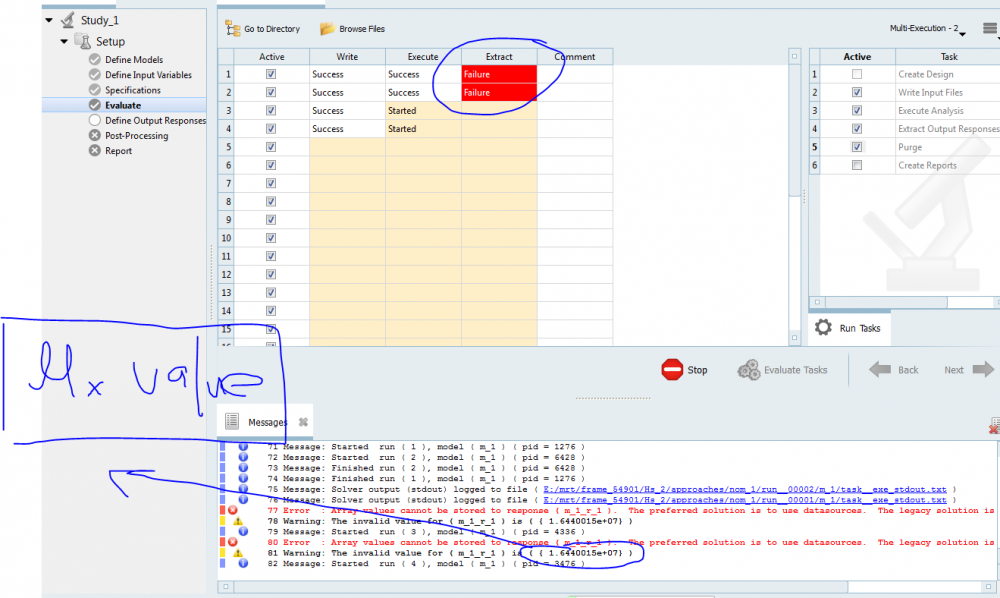

    i have solved particulary second question.

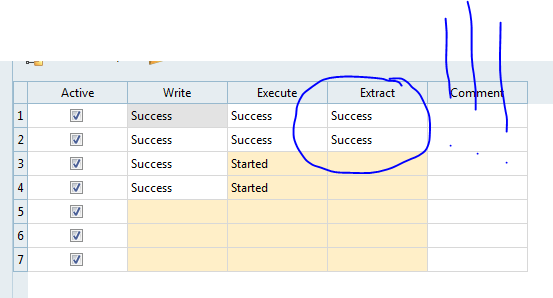

    but i had some problem with values. HyperStudy doesn't like it=( Why does it so?

    how to fix it?

    <?xml version="1.0" encoding="UTF-8"?>image.thumb.png.9f1763597ce7fd40f33418a164ceeceb.png



  • Rahul Rajan_21763
    Rahul Rajan_21763 New Altair Community Member
    edited July 2018

    It would be nice if you can share .xml or .hstx file of HyperStudy to take a quick look.You can use dropbox available in my signature.





  • Altair Forum User
    Altair Forum User
    Altair Employee
    edited November 2020
  • Altair Forum User
    Altair Forum User
    Altair Employee
    edited July 2018

    i hope i fix it.

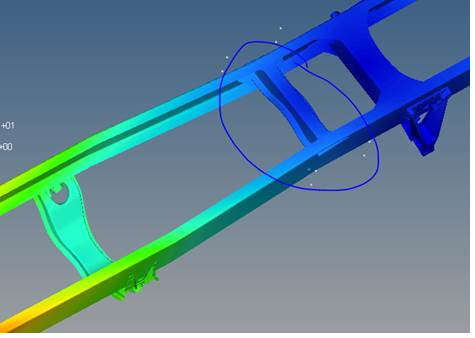

    i haven't solved question about crossbar displacement. (how to define displacement of crossbar, if i assign for down boundes(-10), initial(0) and upper bound(10) it will look larger)

    and i want another approach. i do sweep, but it grows linear my values. could you give me advice, @Rahul R?

  • Altair Forum User
    Altair Forum User
    Altair Employee
    edited July 2018


  • Rahul Rajan_21763
    Rahul Rajan_21763 New Altair Community Member
    edited July 2018

    For bound you have option to change the value as per your requirement.Refer below post.



  • Altair Forum User
    Altair Forum User
    Altair Employee
    edited August 2018

    Thanks for the good ideas to bring it. I know a lot more. :)/emoticons/default_smile.png' srcset='/emoticons/smile@2x.png 2x' title=':)' width='20' />
