Heat transfer

Altair Forum User
Altair Forum User
Altair Employee
edited October 2020 in Community Q&A

-->Sans titre 1.bmpHi everyone!



I'm studying mechanical engineering i  France an I have to make a thermomechanical simulation on a cylnder on HyperWorks 13 by using Optistruct.

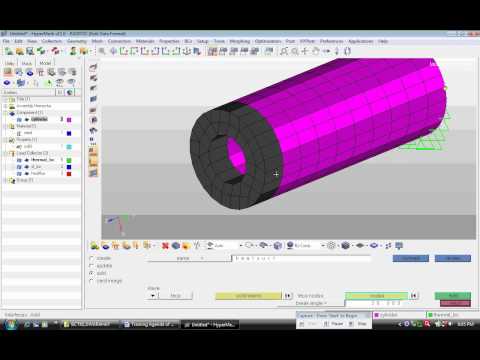

I first want to study the heat transfer on the cylinder so I followed this video to set my analysis :



>https://www.youtube.com/watch?v=P-pg0CZtwa8



Unfortunately I have an error message when I launch the analysis...Here is the message:



 'Heat GRID 1 used with Component 123 on card SPC 2'



Does someone can help me to solve my problem?... The only differences I have from the video are the dimension: (external radius 20cm and internal radius 12) and the mesh (I attached a pictures).







Thk you in advance!



Fantomas

Unable to find an attachment - read this blog

Tagged:

Answers

  • Rahul_P1
    Rahul_P1
    Altair Employee
    edited November 2015

    The simplest answer is that you will have to review the set up again, if you follow the tutorial here exactly - OptiStruct > OptiStruct Tutorials and Examples > Tutorials > Basic Small Displacement Finite Element Analysis:

    OS-1080: Coupled Linear Heat Transfer/Structure Analysis



    there should be no problems, the tutorial when followed exactly provides correct results.
