Transferring data from Hyperworks to Ansys

Hello,

I have a plate design (PSHELL ), and I wish to do a frequency response analysis in Ansys. I have done all preprocessing and applied all boundary conditions. Is it possible to export the pre-processed model with boundary conditions? If yes, what is the procedure?. Please note the fact that I am using PSHELL property.

Thanks in advance./emoticons/default_smile.png' title=':)' width='20' srcset='/emoticons/smile@2x.png 2x' />

Find more posts tagged with

English

OptiStruct

Accepted answers

All comments

Altair Forum User

Hi Swapy,

Are you using HyperWorks student edition for pre-processing?

If yes, then it is not possible to export to Ansys from Student Edition of HyperWorks. This is one of the limitations.

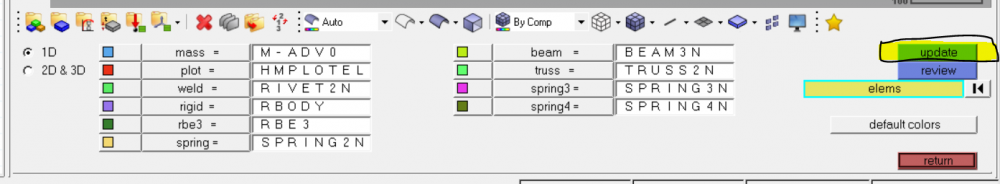

If you are using full edition, then you can change the user profile to Ansys (if you are not already in Ansys profile), Update all elements (Goto 2D/3D page>> Element types>> Select all elements and click update for all 1d, 2d, and 3d elements)

Then go to File menu>> Export>>Solver Deck

Rahul Rajan_21763

Any specific reason for switching from Os to Ansys?OS is good for Structural frequency response analysis.If you have any query related to Optistruct then please post same in OS forum.
