Modify X axis with Node ID

Altair Forum User

Hi,

this is my first post and I have a question about Hypergraph.

I would like to plot Z displacements on Y axis and nodes ID in X axis, my problem is to change X axis data !

Who can help me please ?

I use op2 file to plot my results on hypergraph.

Regards

<?xml version="1.0" encoding="UTF-8"?>

Find more posts tagged with

English

HyperGraph

Accepted answers

All comments

Rahul Rajan_21763

Double click on node number or displacement magnitude will take you to axes option in HyperGraph. You can change label name and interval using min max option.

Altair Forum User

Thanks for your answer but my problem it is not to change min and max values but it is to plot a curve and choose for Y data displacements and X data Node ID.

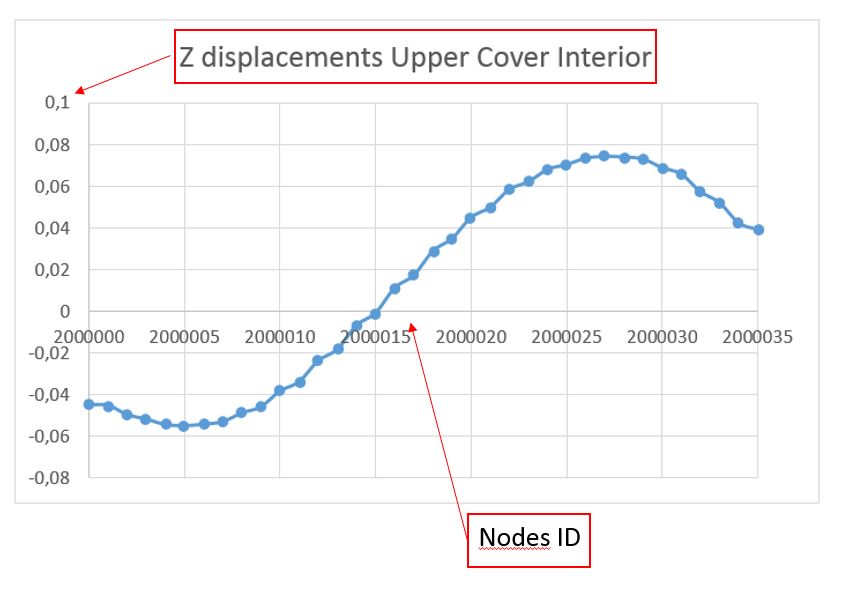

The curve above it is an example plot with EXCEL and it is the result I want with Hypergraph.

Altair Forum User

Hi,

I'm attaching a document which shows creating a cross plot values along a specified node path.

I think this may help you, please go through the same.

Unable to find an attachment - read this blog
