CONVERGENCE GRAPH OF TOPOLOGY OPTIMIZATION.

Altair Forum User

Hello.

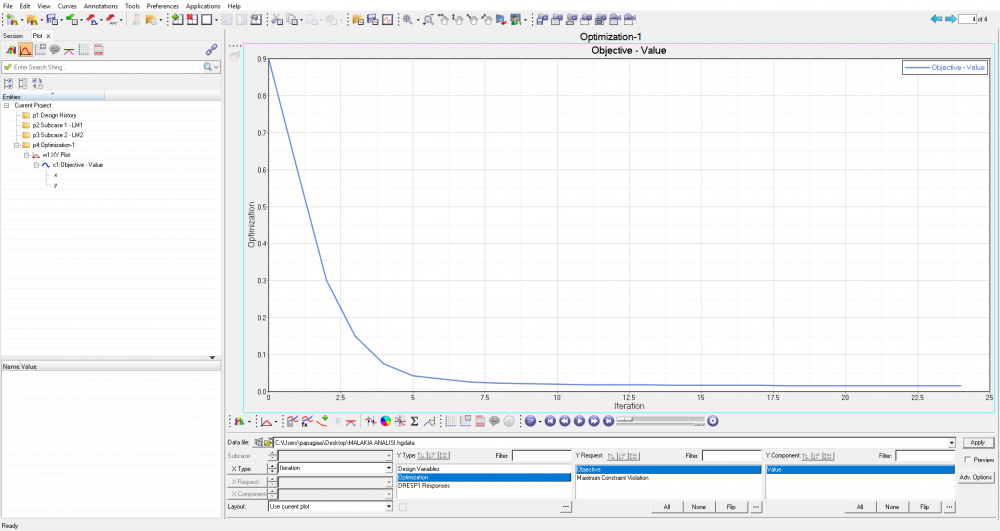

Could you please give me some suggestions of what can i approximately say about the results of this graph?

Or what are the important things that i have to mention in my report regarding a convergence graph?

Best Regards.

<?xml version="1.0" encoding="UTF-8"?>

Rahul Rajan_21763

Here if the objective is to minimize mass then from above curve we understand that design got converged at 24th iteration (x axis) and y axis values determines total mass.
