Error # 1722, Require assigned material of type structural?

Hello Friends,

In my model Analysis I got error like 237714 element(s) require assigned material of type structural. I have defined material to each and every part. How can I see in which elements have some missing material properties or something. As I am using Shell and solid elements as well as some RBE2. only RBE2s have not material properties but still they have propeties in which Card Image PBUSH1dD and K is mentioned.

Please help me.

Thank you,

Regards,

Jay Nayak

Find more posts tagged with

English

OptiStruct

Accepted answers

All comments

Altair Forum User

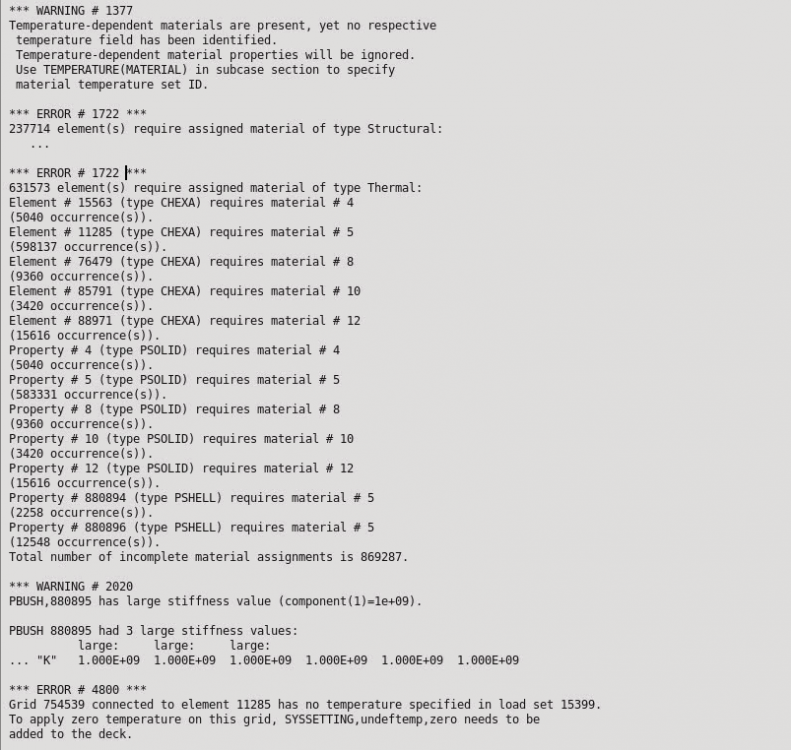

For more Brief you can see the Output file Error. attached with Image.

<?xml version="1.0" encoding="UTF-8"?>

Altair Forum User

Hi Nayak,

There are 869287 elements with incompatible property/material.

What material card are you using?

I think you have temperature boundary conditions and you are not using any thermal material like MAT4/MATT4.

Please check and update

Altair Forum User

Hello,

As I am doing Thermo mechanical analysis, I am using Mat1 for solid condition and for thermal MAT4. for heat Transfer coefficient I am using Shell elements in which I am only using Mat4 because I dont't require densitiy and all other properties. while in solid properties I filled up all MAT1 Properties and in MAT4 I just filled H as my heat Transfer coeffient Zero. Because I have already defined same size Shell element around my solid with exact heat Transfer coefficient.

Still I have this Kind of error as you can see in image

<?xml version="1.0" encoding="UTF-8"?>

Altair Forum User

As in Optistruct, I can't define my heat Transfer coefficient separetly on my solid elements so I have defined indiviidual Shell elements with MAT4.

so I have Solid elements with MAT1 and MAT4 - h (Heat Transfer Coeff- 0)

& Shell elements which are around my solid element with exact size and thickness 0.000001 , with MAT4 with exact heat Transfer Coefficient.

I am doing Linear static Analysis in which I have introduced Temp as Load and Forces or Pressure.

Altair Forum User

Nayak,

Can you share the model file using secured file transfer link in my signature?

Altair Forum User

I am sorry Prakash. I can't share my model. I came to know about my error.

Thank you.
