Populate a lookup table in Activate

Hello,

I'm a newbie with Activate (I'm still with the 2017 version) and I'm trying to translate an old model from Portunus in Activate.

My goal is really simple but I don't understand how to do it in Activate.

I have a 3D curve (map response) from Flux I'd like to use in Activate. I've always used a look up table in other softwares but here I really don't understand how to populate it here.

If I try to use a csv of my values, how can I use them with interpolations in my model ?

Hope someone can help me )

Thanks !

Find more posts tagged with

English

Twin Activate

Accepted answers

All comments

RoKet

Hi Vinivici,

The definition of inputs and output looks like this:

Assuming n=2 (x-axis), m=2 (y-axis), k=2 (z-axis)

Then output vector with size n*n*k: [f(x1,y1,z1), f(x2,y1,z1), f(x1,y2,z1), f(x2,y2,z1), f(x1,y1,z2), f(x2,y1,z2), f(x1,y2,z2), f(x2,y2,z2)]

Reading of csv and populating inputs and output have to be done as a script in 'Diagram Home Context' or 'Model initialization'.

Best Regards.

Altair Forum User

Hello RoKet, thanks for the answers !

So you use the 3D look up table to build the n*n*k vector ?

I'll have a look concerning the script part, time to go deaper )

Thanks

RoKet

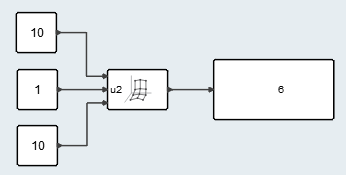

Yes, I forgot to mention. I check it with this simple model


The script part is sometimes a little bit tricky. Unfortunately I have no example, perhaps someone else can help with a code snippet?

Altair Forum User

I'm a bit confused here because a lookup table should be populate before and then a given entry will by interpolation have a given result.

Shouldn't the look up table be populated by scripting like you suggested for the csv part ?

EDIT :

I think I understand how it worked now :

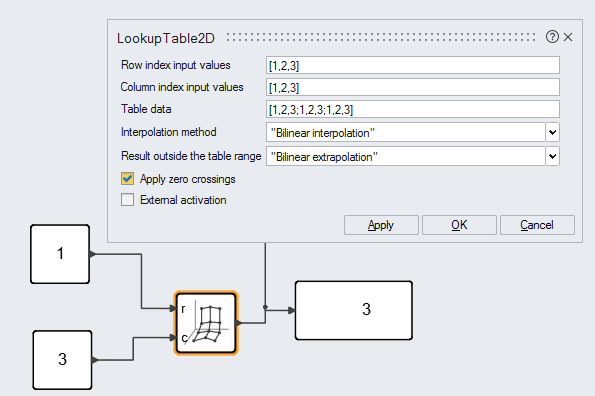

Look up table is populated directly or through variables given in the Model/Initialization.

Will try to populated based on a csv and the rest should go smoothly (I hope ) )

Thanks for the help and I hope it can help others.
