How to show the combined field strength in Proman

Altair Forum User

Dear sir or madam,

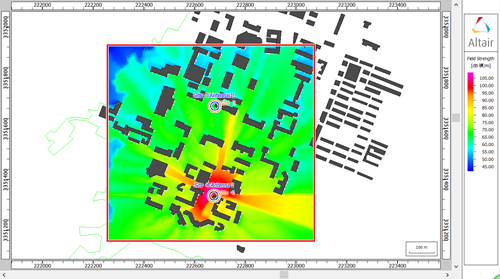

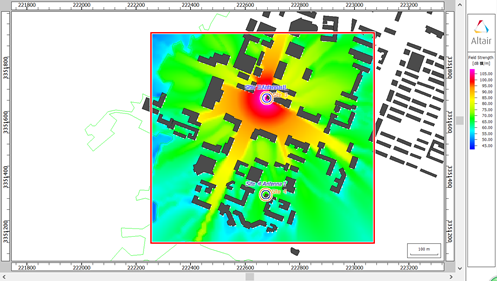

I try to put two sites and two antennas on the map, but when I open the results view to see the field strength/power, I just can only see one of the two transmitters, like the attached pictures show. How to show the combined field strength/power  of these two transmitters?

I use the WinProp student edition 2018.



Thanks for your help in advance.



<?xml version="1.0" encoding="UTF-8"?>

<?xml version="1.0" encoding="UTF-8"?>

Reiner_Hoppe

The superposition of the individual coverage results can be done automatically in a network planning project by RunNet. For this purpose you would need to define a network planning project in ProMan based on the corresponding air interface (wireless standard definition file *.wst).

Without network planning project (i.e. in a propagation project) the coverage of individual Tx antennas/leaky feeder cables can be superposed in ProMan by using the following steps:

First load one of the results (preferably *.fpp file) in ProMan via File => Open Result and then superpose the next result via Edit => Combine Data => Max Value (can be done for further results in the same way).
