Hey there, I've a question about the steering ratio in a rackpin steering system of a assembly wizard model.
Where can i set this value? Thank you for help!
Hello Tetoldini

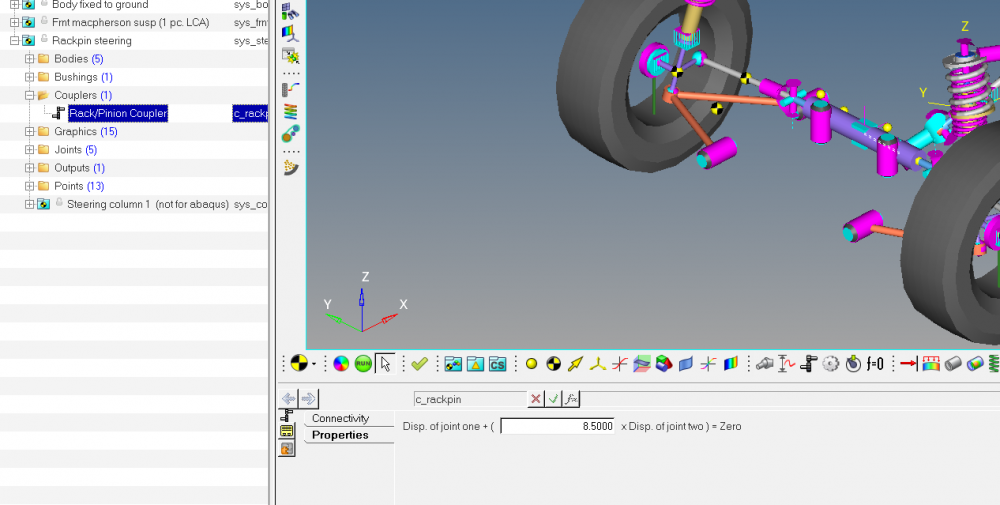

You should find a Coupler entity under the Rackpin Steering system where you can change the coupler ratio.
regards
Praful
<?xml version="1.0" encoding="UTF-8"?>
Thank you!
And what is this ratio exactly? I would like to input the steering wheel angle vs steering rack travel ratio.
depending on how the coupler is defined, it's either:
Rotation of steering input (in radians)/travel of steering rack (in mm)
or
travel of steering rack (in mm)/Rotation of steering input (in radians)
