I cannot open MV 14.0 model files in 2017.2 (student edition). The graphic file has a problem during the import.
Please let me know if there is any workaround.
Thanks,
Hello Sushanth -
Would it be possible to share the model/graphics files ? It will help us diagnose the issue.
Regards
Praful
Hi Praful,

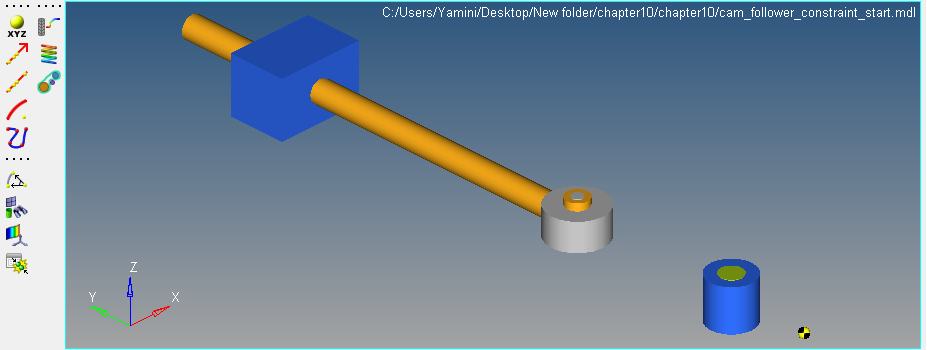

Sure. I have attached the cam follower model files as an example. The model used to get imported successfully in the student version 14.0. However, the cam graphic does not get imported into the 2017.2 student version. i have pasted a snapshot of the image below. I am facing similar issues with some other models too.
Please let me know how this issue can be resolved.
Sushanth
