Hello, how can i change this joint to be on the plane of the shock, tie rod, and mounting point. Right now it is running vertical but as you can see I need it to be at an angle or plane between the points mentioned, How can i do this
Hi @IsaiahDuckworth ,

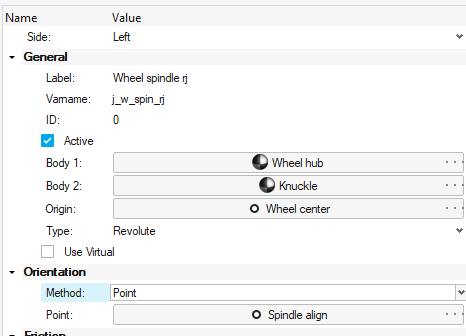

You can change the orientation of the joint by a mounting point or vector. https://help.altair.com/hwdesktop/hwx/topics/motionview/joints_r.htm#joints_edit_mvx_t
You can also refer to our free online trainings to get started with MotionView.
Introduction To MotionView
Vehicle Modeling In MotionView
Hope this helps!
