Hi all,

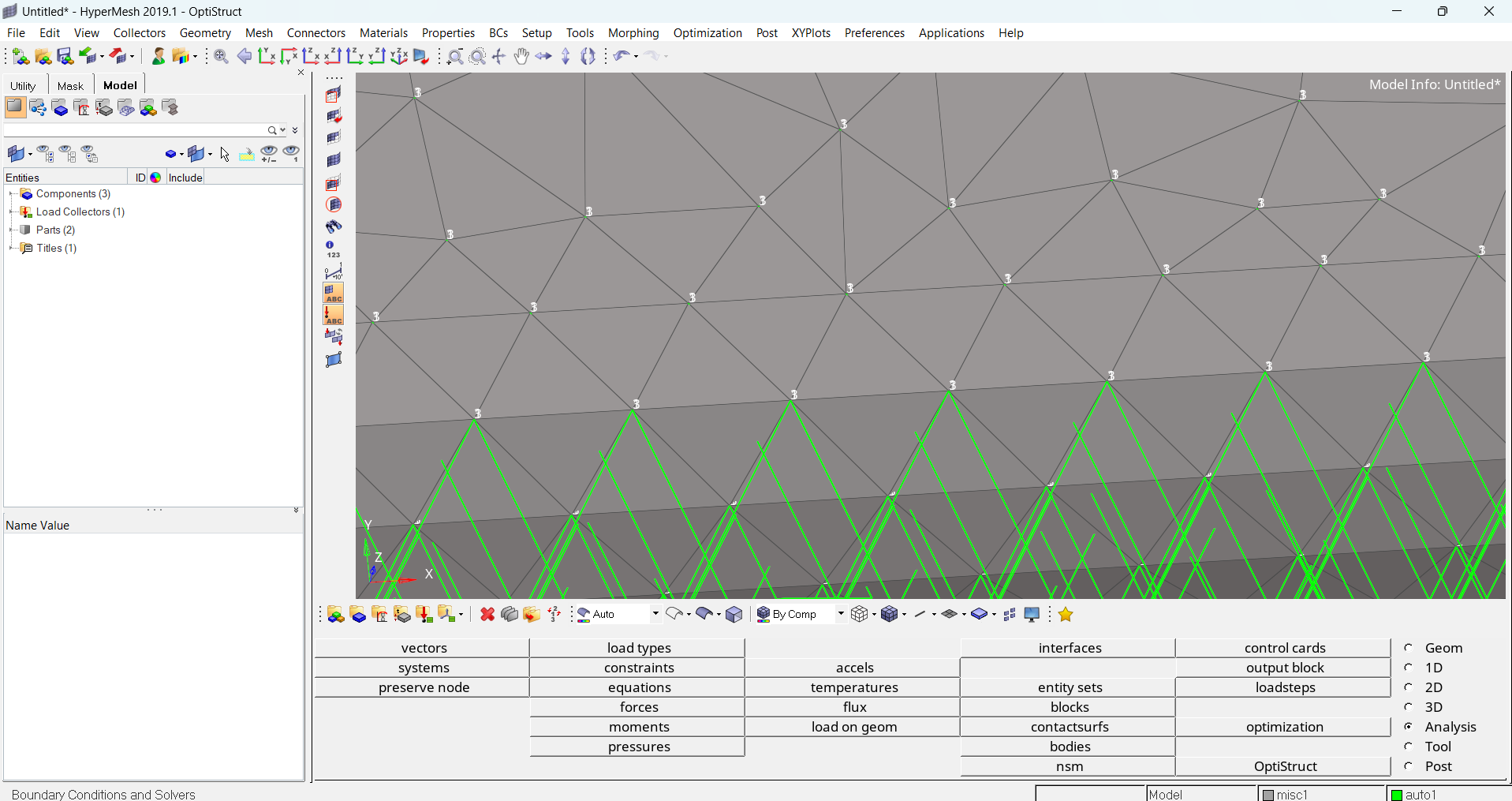

In HyperMesh 2019, when I created multiple SPCs with different DOFs in the same load collector, the degrees of freedom were displayed overlapping as expected.

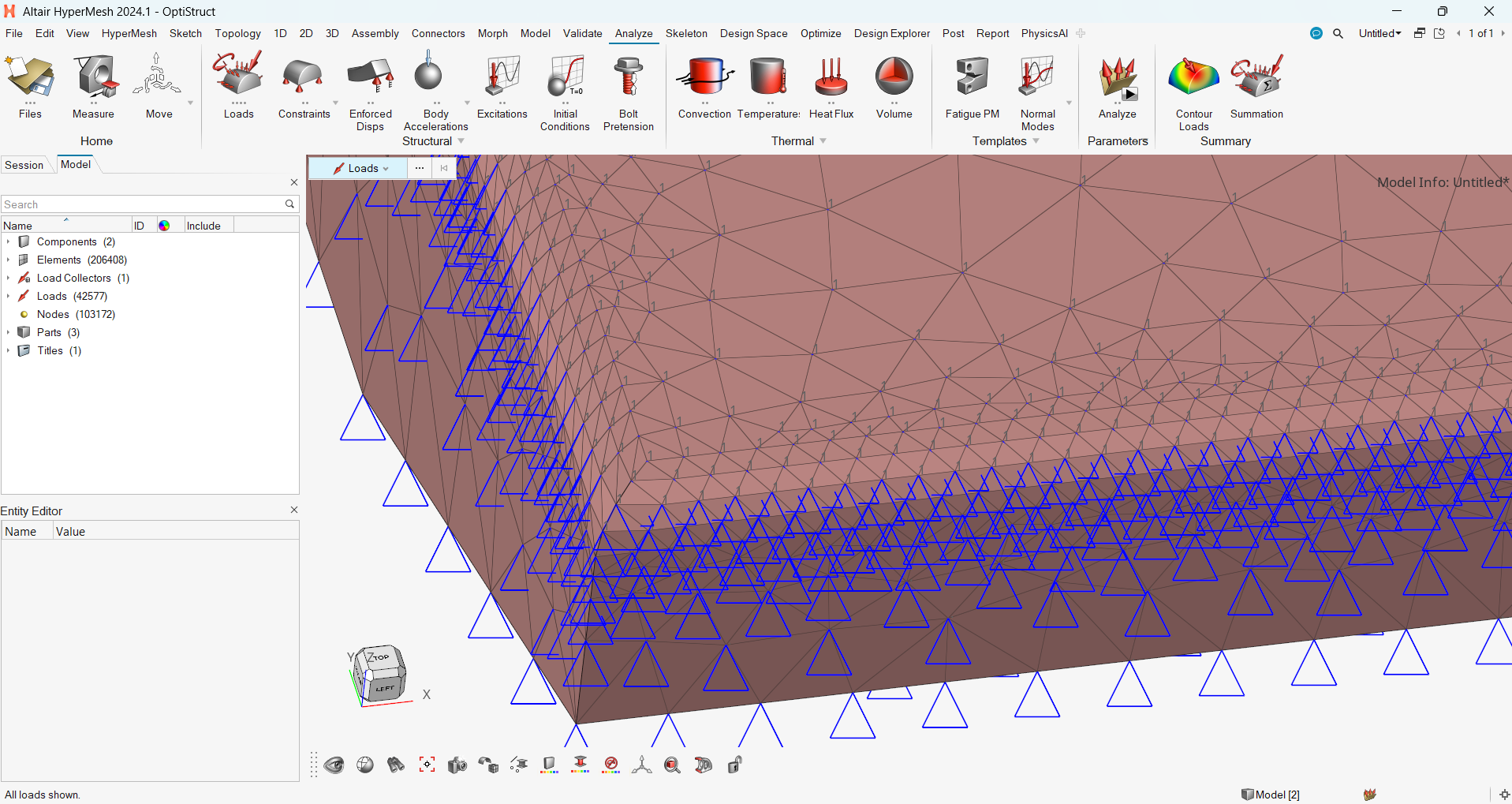

However, in HyperMesh 2024.1 and later versions, when the number of constrained nodes exceeds 5000, the DOFs are no longer displayed overlapping.
Is there any way to make the DOFs overlap again when creating multiple SPCs with different DOFs in the same load collector in HyperMesh 2024.1?
