Importing .dxf in Flux 2D

daniel_ribeiro_gomes

I'm a Flux beginner, with a great difficulty to initiate my first simulation.

I've been trying to import a geometry from a .dxf file, but nothing goes. It is an eddy current brake.

Simulação EFC1-280 ESP 57780 RevC.dxf

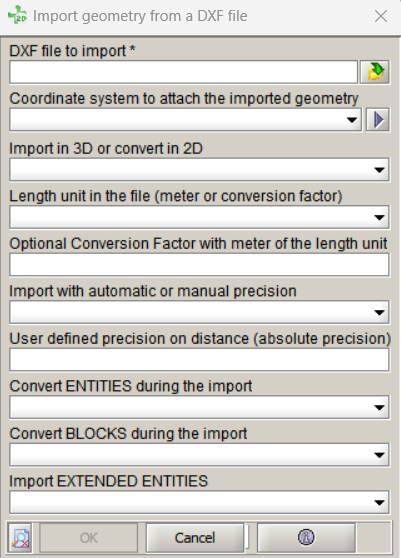

The "OK" button never stays enabled. I've tried all the Google Gemini tips.

Could someone help me, for God's sake?

Charishma_Modem

Hello Daniel:

Thanks for contacting Altair Support.

To import DXF file in Flux 2D. Please follow the below steps

Step- 1. Open a new Flux 2D project - You will directly be entered into Sketcher 2D Context.

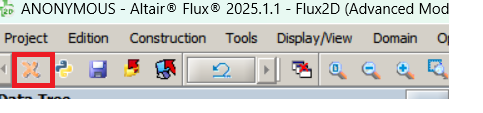

Step-2. Close the skether context using 'X' buton

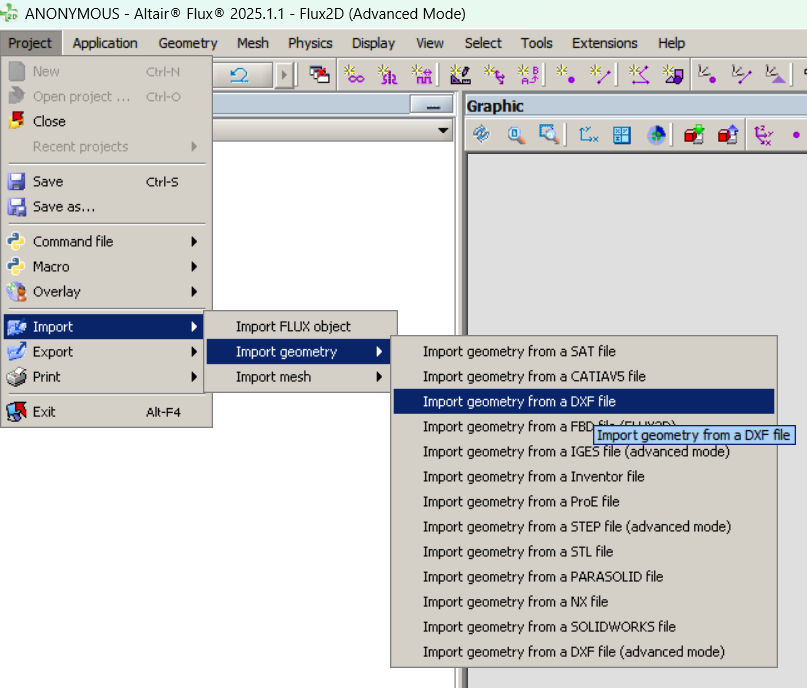

Step-3 Click on project menu> Import Geometry > Choose Import using .DXF file

Step-4: Choose DXF file, coordinate system and other required options and click oK.

Use the below link to understand more about Import geometry from .DXF file
Import Geometry as .DXF file

Best Regards,
Charishma
