How do i know that 'mirror' is ok?

GabrielZumaeta

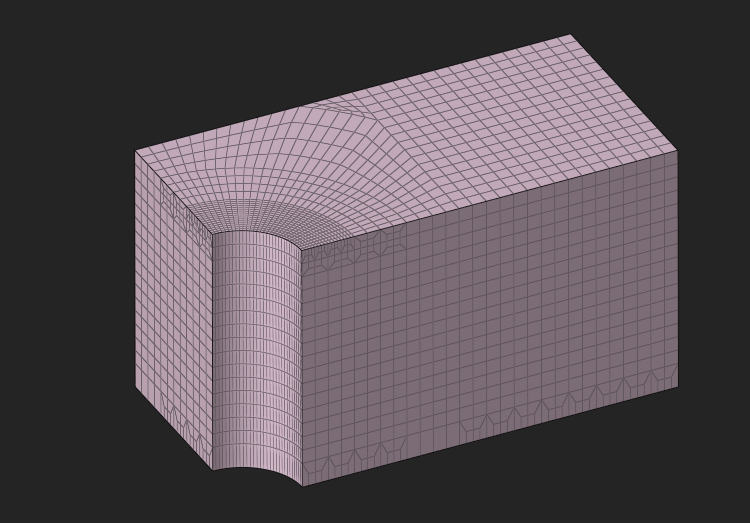

I did mesh a 1/4 of my solid, then did 2 mirrors, just like shown down there:

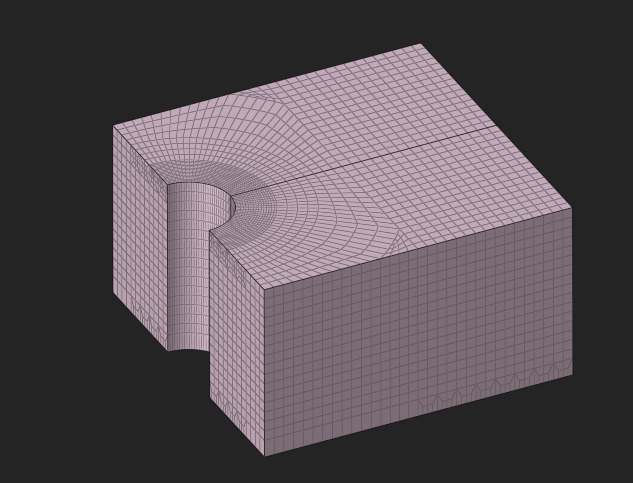

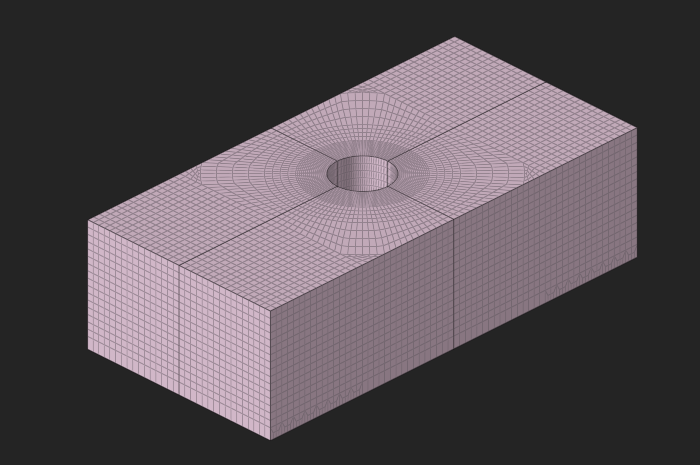

Than the 2 mirrors so i can have the whole solid:

I was exporting the file to another software to simulate, Abaqus.
I did a simple test, the program identified that, and i get that warning
"There are 4 unconnected regions in the model."

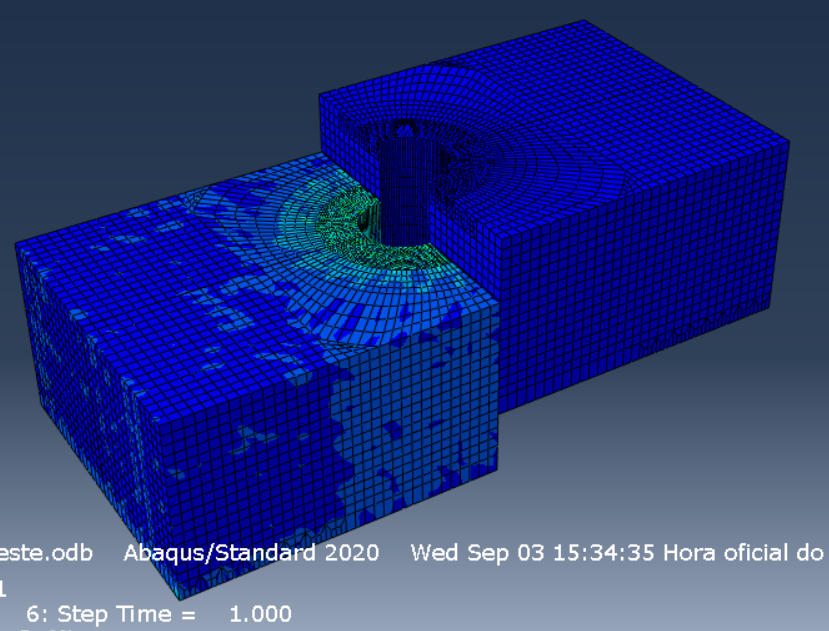

And then the result of the simulation:

So, that leads me to believe that the mirror tool is not bonding the whole solid, how can i fix that?

Jason_Craanen

you need to equivalence the free nodes at the interface. YOu do indeed have four separate bodies

https://help.altair.com/hwdesktop/hwx/topics/pre_processing/model_setup/duplicate_nodes_equivalence_t.htm?zoom_highlight=equivalence
