Hello, I need help about jointload method under aerospace certification. I need to detail calculatio

Description: Hello, I need help about jointload method under aerospace certification. I need to detail calculation procedure for dls ratio. I review your help "https://help.altair.com/hwdesktop/hwx/topics/pre_processing/aerospace/methods_built_in_libraries_jointload_r.htm" but its not clear for me. Please clarify your equation about dls ratio.

Product/Topic Name : Hypermesh.

Find more posts tagged with

HyperMesh

Accepted answers

All comments

Jason_Craanen

Hello

Can you please clarify which equation you need help with?>

https://help.altair.com/hwdesktop/hwx/topics/pre_processing/aerospace/methods_built_in_libraries_jointload_r.htm?zoom_highlight=jointload

abdulmutalip

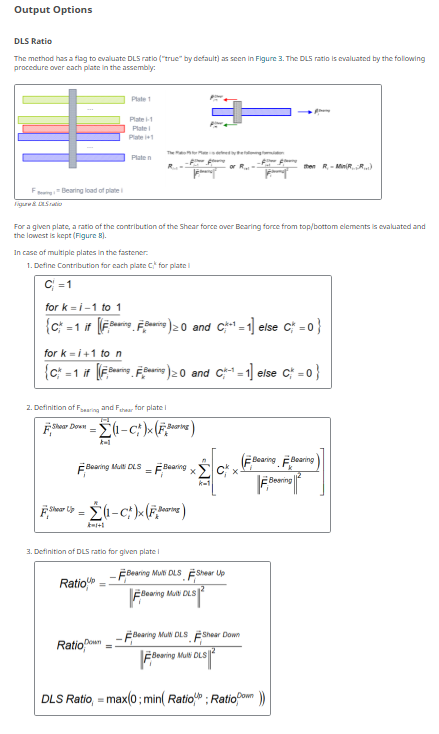

Can you proof equation on my figure. Because when I conduct procedure which is placed in your comment or in altair help, i couldnt find same value with hypermesh 2021.1 output. I want to use that ratio in mitigation condition for bolted joint failure due to the that reason, i should know exact idea background of ratio.

abdulmutalip

Jason_Craanen

I am sorry, I am not sure I am following. You can find the ratio meaning in the help

https://help.altair.com/hwdesktop/hwx/topics/pre_processing/aerospace/methods_built_in_libraries_jointload_r.htm

abdulmutalip

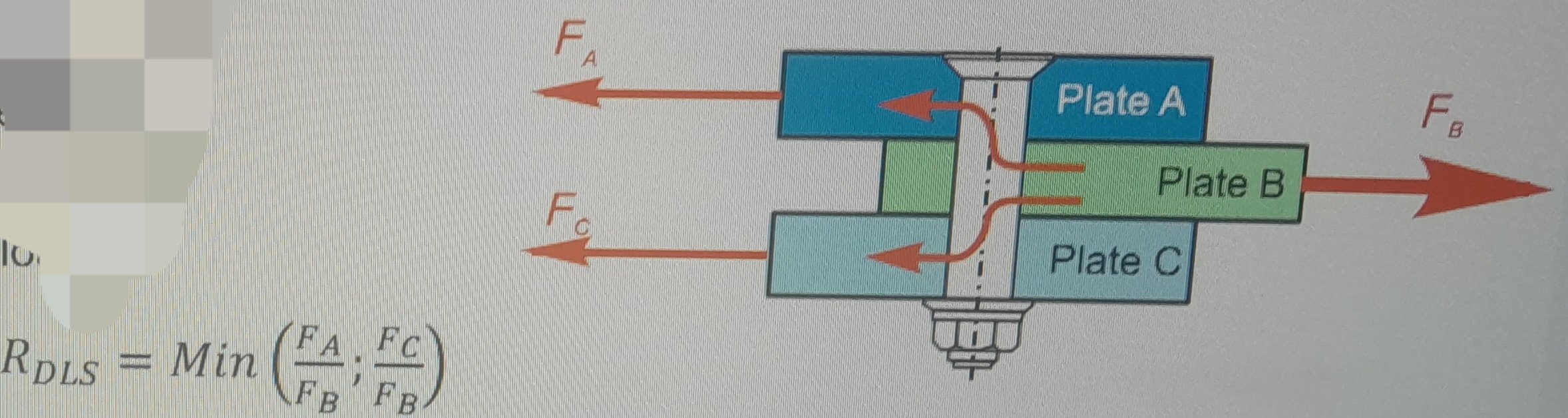

Jason i know, but please inspect my example which is given previous post. X and Y in plane direction

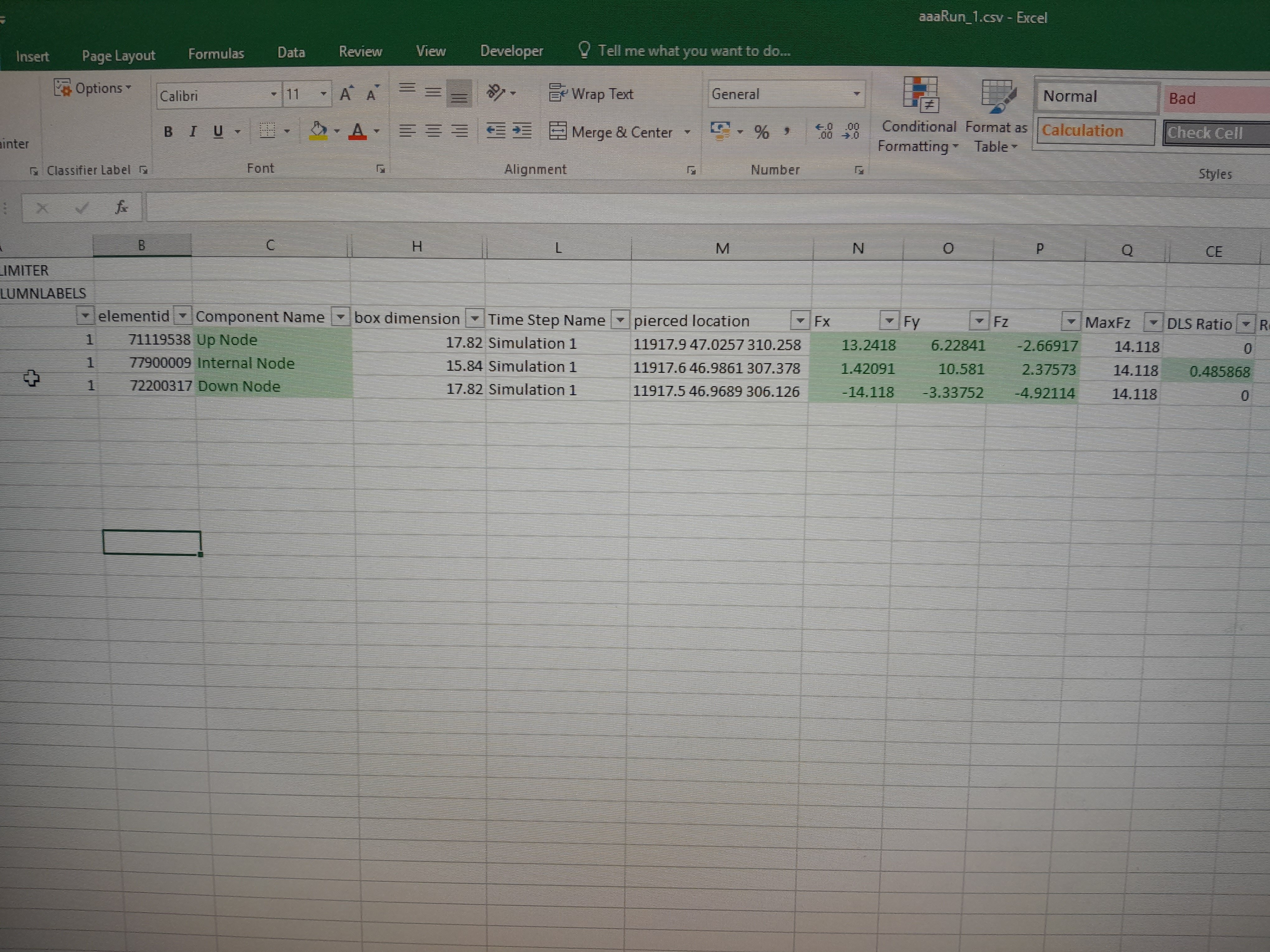

Up side sqrt(13.2418^2+6.22841)=14.63346

Down side sqrt(14.118^2+3.33752^2)=14.507

Internal Side sqrt(1.42091^2+10.581^2) =10.675

Dls_R = min(Up/internal,down/internal)

But I couldnt find hypermesh output 0.485868.

abdulmutalip

PPerfect, Can you correct 0.2530398 in your answer. Your help equation is same with given figure.

I wonder that ,could u find same ratio with hypermesh?

Jason_Craanen

I am sorry, what do you mean "Can you correct 0.2530398 in your answer. " That ratio is the answer for that designpoint for the subcase.
