Could not locate method GETEFINTERFACEVERSION when loading a dll file

Hi. I have an API for custom particle property, and I was able to run it for EDEM 2022.3

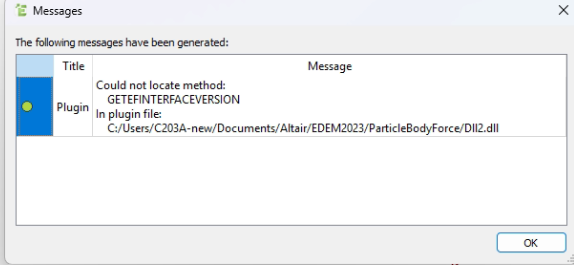

Now I started to use EDEM 2023 and got a message (screenshot below). I have tried to re-compile the dll using Visual Studio, but couldn't fix. Could you please give some advice? Any suggestions will be really appreciated.

Find more posts tagged with

EDEM

Accepted answers

Renan

Hi @Yangyang_Shen,

It seems that you're missing the file that implements the GETEFINTERFACEVERSION method.

You can find an example on how that file should look like here:

https://community.altair.com/discussion/35454/edem-api-particle-body-force-one-way-convective-heat-transfer

Best regards,

Renan

All comments

Renan

Hi @Yangyang_Shen,

This error suggests that you are trying to load a contact model as a particle body force. Those models use the GETCMINTERFACEVERSION method instead of the GETEFINTERFACEVERSION.

If this is not your case and you are loading a particle body force in the right place, could you please share your code?

Best regards,

Renan

Yangyang_Shen

Hi @Renan

Thanks so much for your reply. I am trying to load a particle body force. I just noticed the method GETEFINTERFACEVERSION is called in PluginParticleBodyForceCore.h

I've attached my codes. Please let me know what you think. Thanks a lot for your help!

codes.zip

Renan

Hi @Yangyang_Shen,

It seems that you're missing the file that implements the GETEFINTERFACEVERSION method.

You can find an example on how that file should look like here:

https://community.altair.com/discussion/35454/edem-api-particle-body-force-one-way-convective-heat-transfer

Best regards,

Renan

Yangyang_Shen

Thank you so much! This is very helpful.
