Default element type settings in HM?

Hello,

Can we change the Default element type settings in Hyper mesh?

Like by default C3D10M element type is assigning for Tetra 2nd order elements.

can we Change the default to other type like C3D10.

Thanks,

Hi,

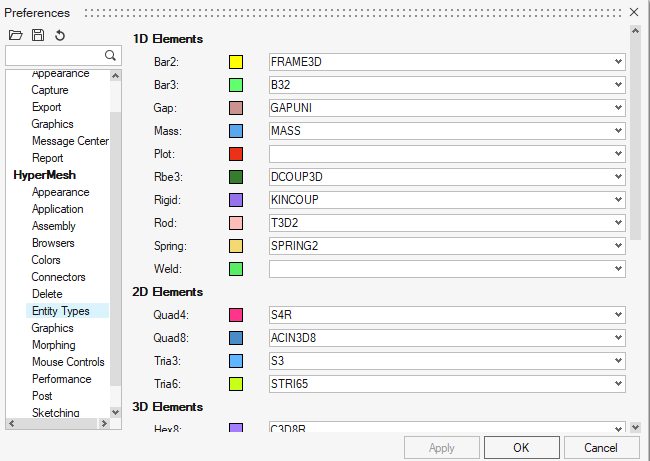

You can change it in the Entity Types section of the Preferences settings.

Hello Ayyappa,

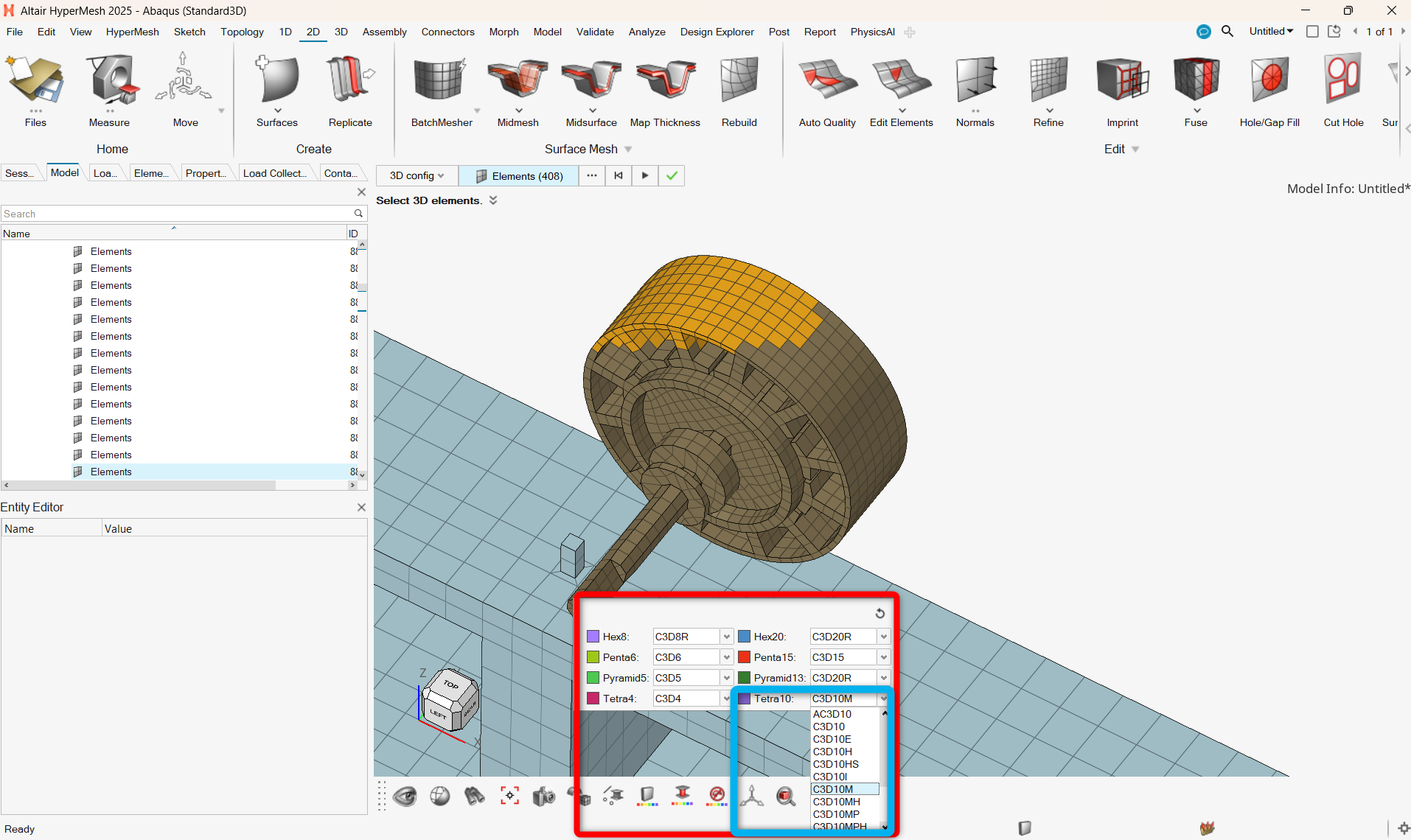

You can change the element type as shown in the following image in the Abaqus solver interface.

Let me know if this helps .

Hi,

You can change it in the Entity Types section of the Preferences settings.
