Feko: How to create an s-parameter simulation of a model with non-radiating networks?

tobias_from_edag

Hello,

I have a simulation of several antennas with complicated matching networks implemented as Network schematics.

How do I find the S-parameter coupling between the actual antennas? The only way i can see is to create a task for each possible source and manually compute the coupling to each load. And then assemble a touchstone file by hand from the results.

As an example just create a model with 2 copies of feko's example log-per antenna. Or more realistically 10 copies.

Jaehoon

Hello Tobias,

To create S-Parameter simulations,

1. Add SparameterConfiguration (which does not require any voltage source, but ports.)

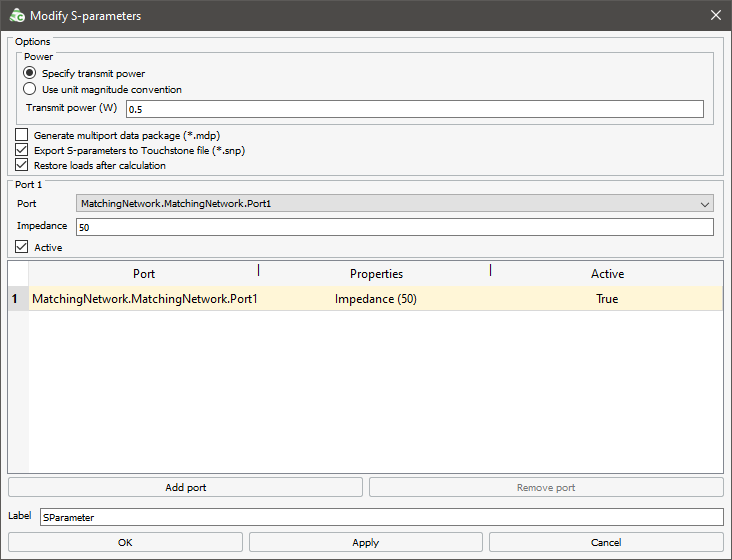

2. Select and add all the input ports of the non-radiating network or the antennas as shown below.

("Input ports" means the ports which used to be connected to voltage sources in the StandardConfiguration.)

Best regards,

Jaehoon
