Shan25_22239

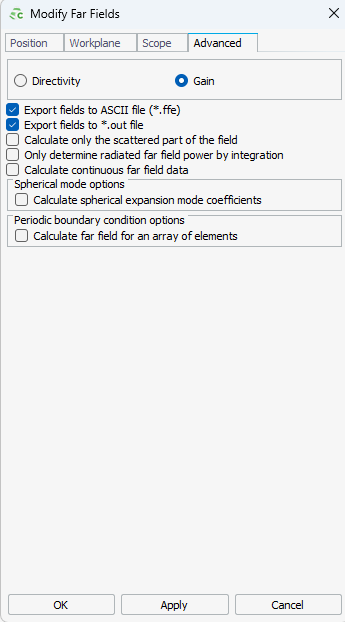

Is it possible to export realized gain of an antenna in the far-field file .ffe?

Find more posts tagged with

Feko

Accepted answers

Zeina

Yes there is, you can script in PostFeko to postprocess simulation results.
you could potentially use that the extract the realised gain.

Shan25_22239

Thanks for the suggestion. Is there a script recorder in POSTFEKO to record the far-field relized gain export steps?

All comments

Zeina

Hi @Shan25_22239 ,

The realized gain can be saved from PostFeko:

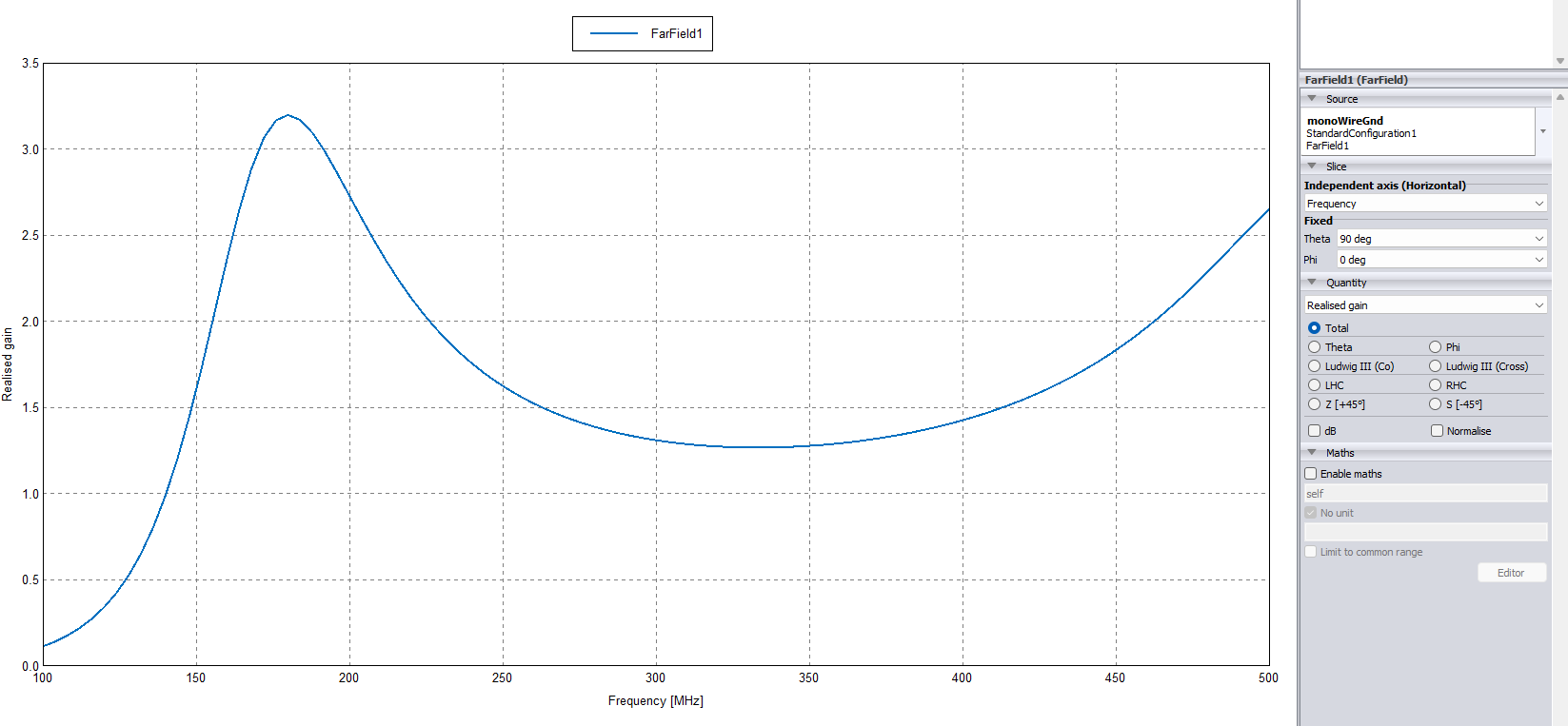

1- Plot the realised gain you wish to export in a Cartesian plot.
2- Right click on the graph > choose "to file .dat"

This will save the plotted data into an ASCII file you later use.

Best,

Zeina

Shan25_22239

Hi Zeina,

Thanks for the suggestion. I am working on a LUA script based MATLAB optimization and prefer extraction of realized gain from FEKO solver. I don't want to manually export the data using POSTFEKO. Is there an alternate method available

Zeina

Is your lua in POSTFEKO or CADFEKO?

Shan25_22239

In CADFEKO. Is there a seperate lua scripting for POSTfeko?

Zeina

Yes there is, you can script in PostFeko to postprocess simulation results.
you could potentially use that the extract the realised gain.

Shan25_22239

Thanks for the suggestion. Is there a script recorder in POSTFEKO to record the far-field relized gain export steps?

Shan25_22239

If possible can you please share the lua script that extract the realised gain over the frequency at a single observation at theta=90 and phi=0? Sorry I could not figure it out
