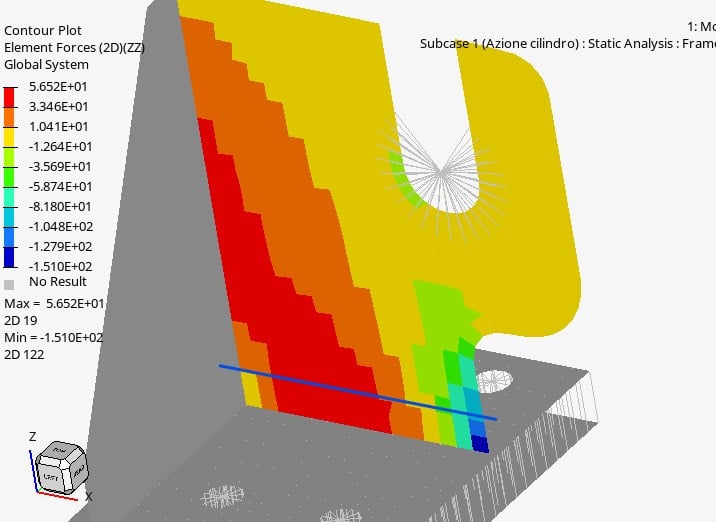

Model with 2D elements. Hypermesh+optistruct. In Hyperview, how to extract and plot the results along a generic line, like that show in the image?
Hi,

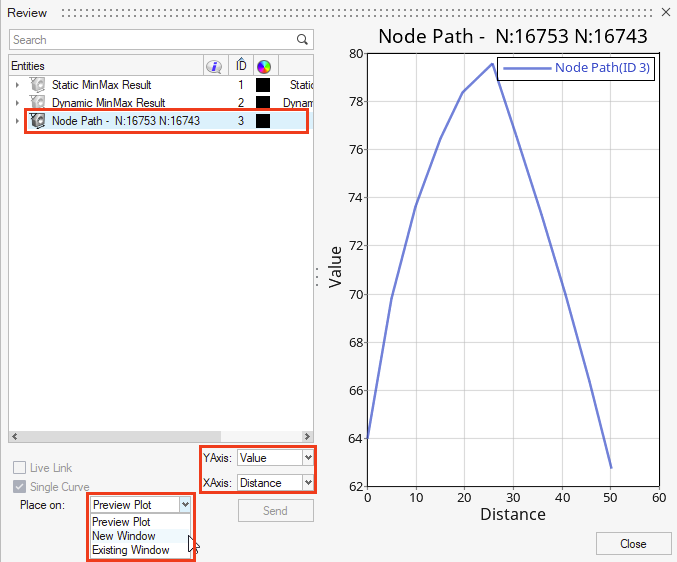

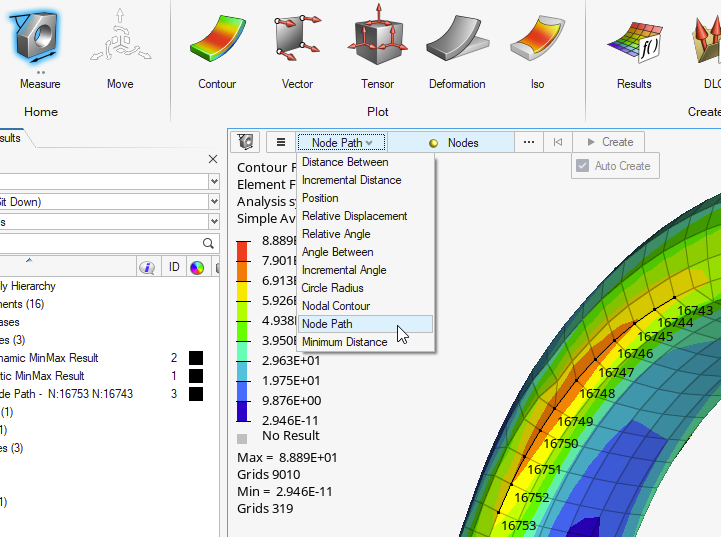

You can do it in HV with using measure tool. If I understand correctly, you can print the graph in HyperGraph by following the images below.

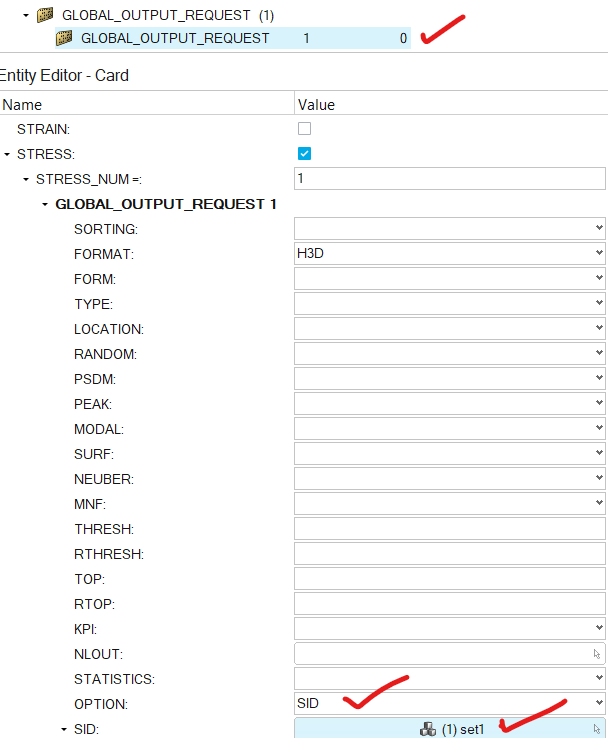

If you want to plot for specific elements, then you can select element instead of component and plot the result. Another method is you need to define element sets in output request through SID field in Hypermesh, then when you apply the result in hyperview it will plot only for those elements defined in set. See the below image.
Thanks…

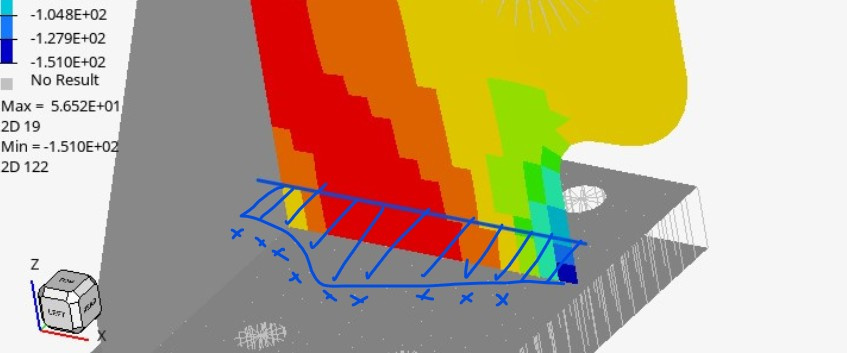

Maybe my request was not clear. I need to plot a graph with the results along a line. The expected output is like in the image. Is it possible or not?
You can get the ELFORCE by doing FBD. It will just show the value, no graph.
check the below link for this.
Free Body Diagram (FBD) in HyperWorks - Altair Community
