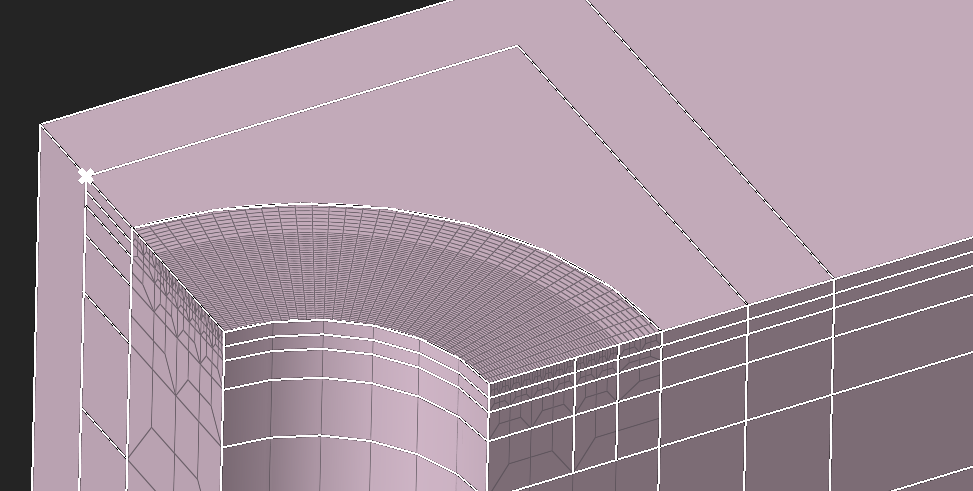

I want to transition this arc to the square shape shown on the screen. How can I do that? I’d rather not use the “free form” tool because it randomizes the mesh too much—I’d like something more symmetrical.
HI GabrielZumaeta

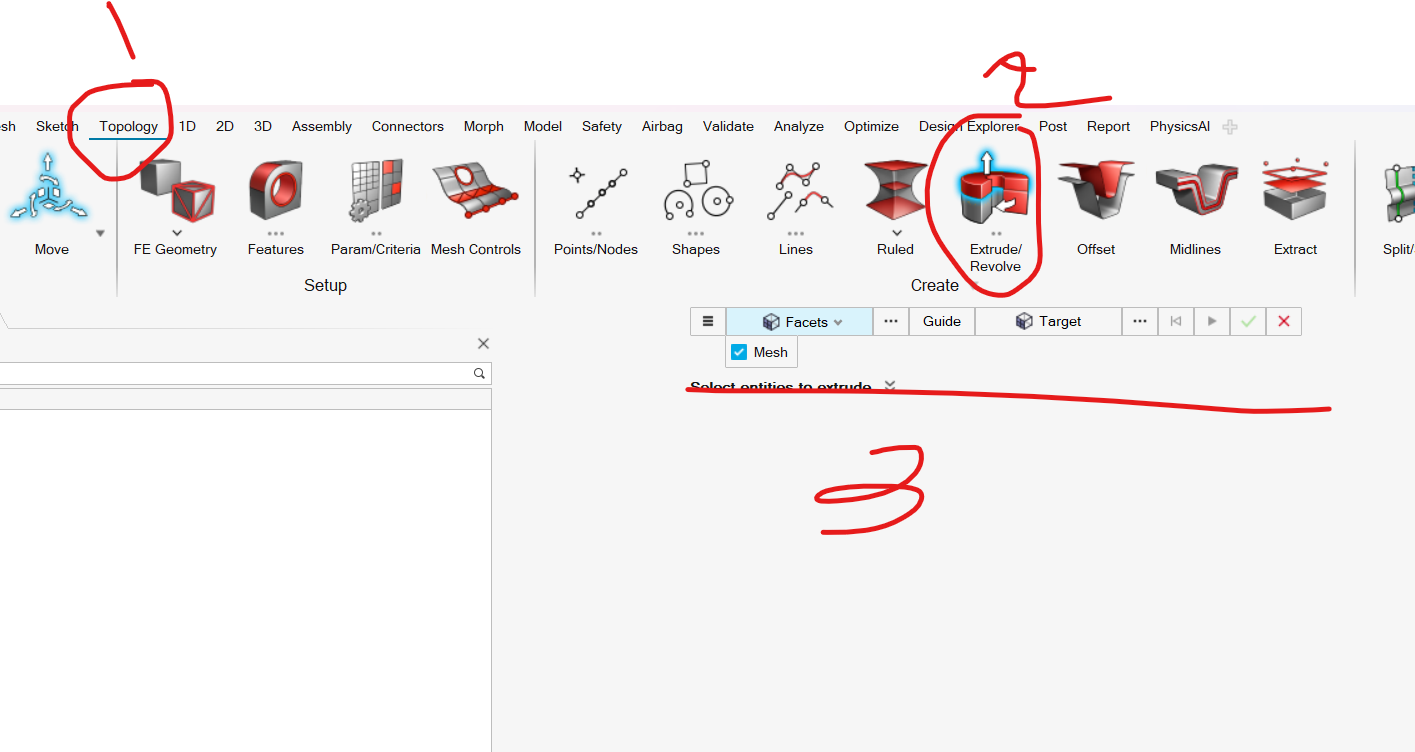

This mesh is mappable, you can do the hexa mesh using below option show in the below picture
Go to Topology
select the extrude
Select the mesh
Then source mesh left side, target mesh right side and select node path in guide
Regards
Harish
