Delete the dependent node set while creating the kinematic coupling.

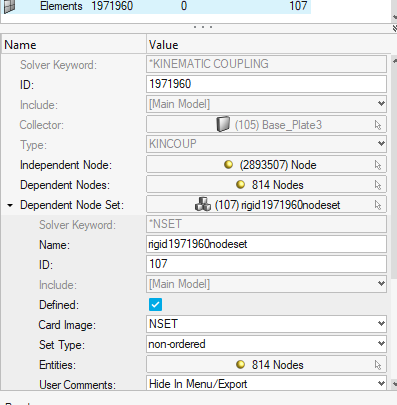

Description: Abaqus generates an error when i run the simulation with kinematic coupling defined with a dependent node set. I am trying to delete this in hypermesh but it is is giving an error message and does not delete the set. If i delete the node set under sets, it also deletes the kinematic coupling.

Product/Topic Name : Hypermesh 2023.1

Find more posts tagged with

HyperMesh

Accepted answers

All comments

Jason_Craanen

Hello,

Are you able to define how this kinematic coupling was created with a node set? I am not able to create or edit a kinematic coupling with a set

arsl_2529

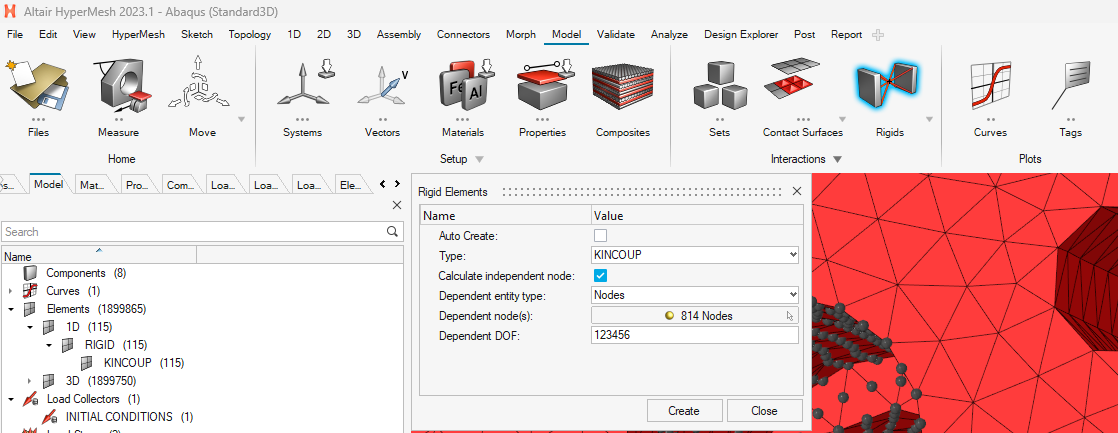

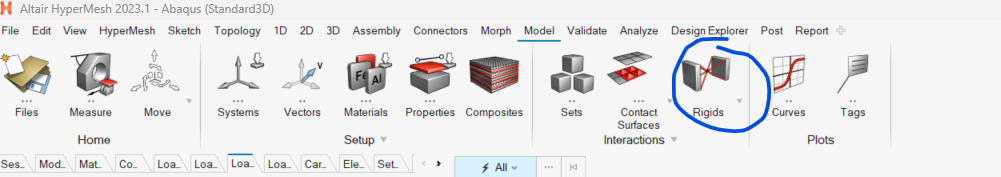

You can create the kinematic coupling using rigids under the Model tab but i am unable to update it in hypermesh 2023.1.

I was able to resolve it when i opened the model in Hypermesh 2019 as it comes with an option to update the kinematic couplings.

Jason_Craanen

Yes, but there is no option for set as an input. I am asking how it was created that allowed for a set as an input as I cannot replicate it.

Jason_Craanen

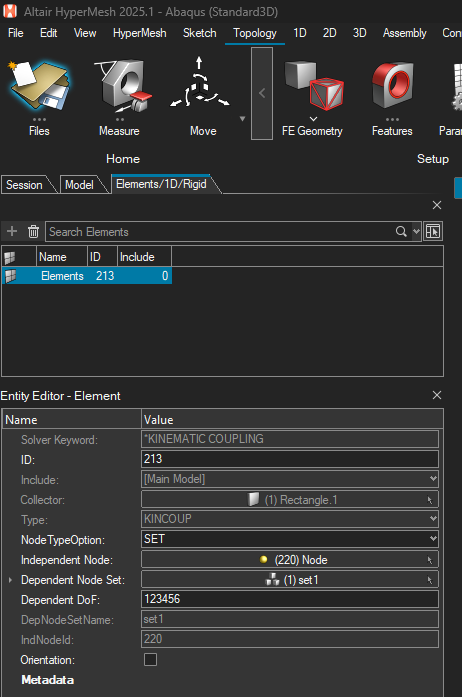

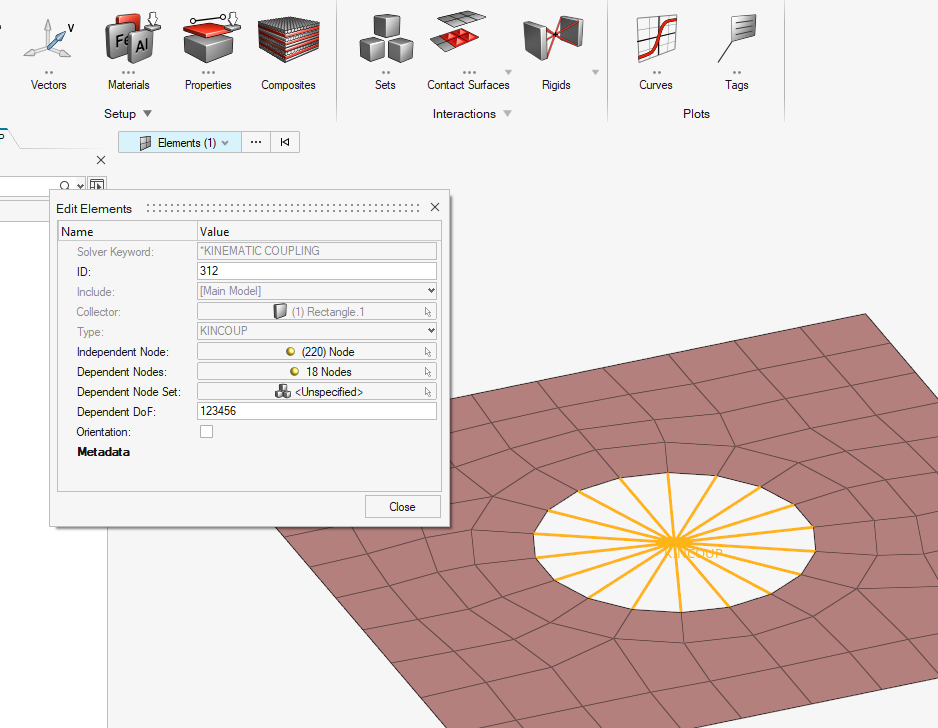

Actually if you double click on the element to edit it, there is a node set option

Jason_Craanen

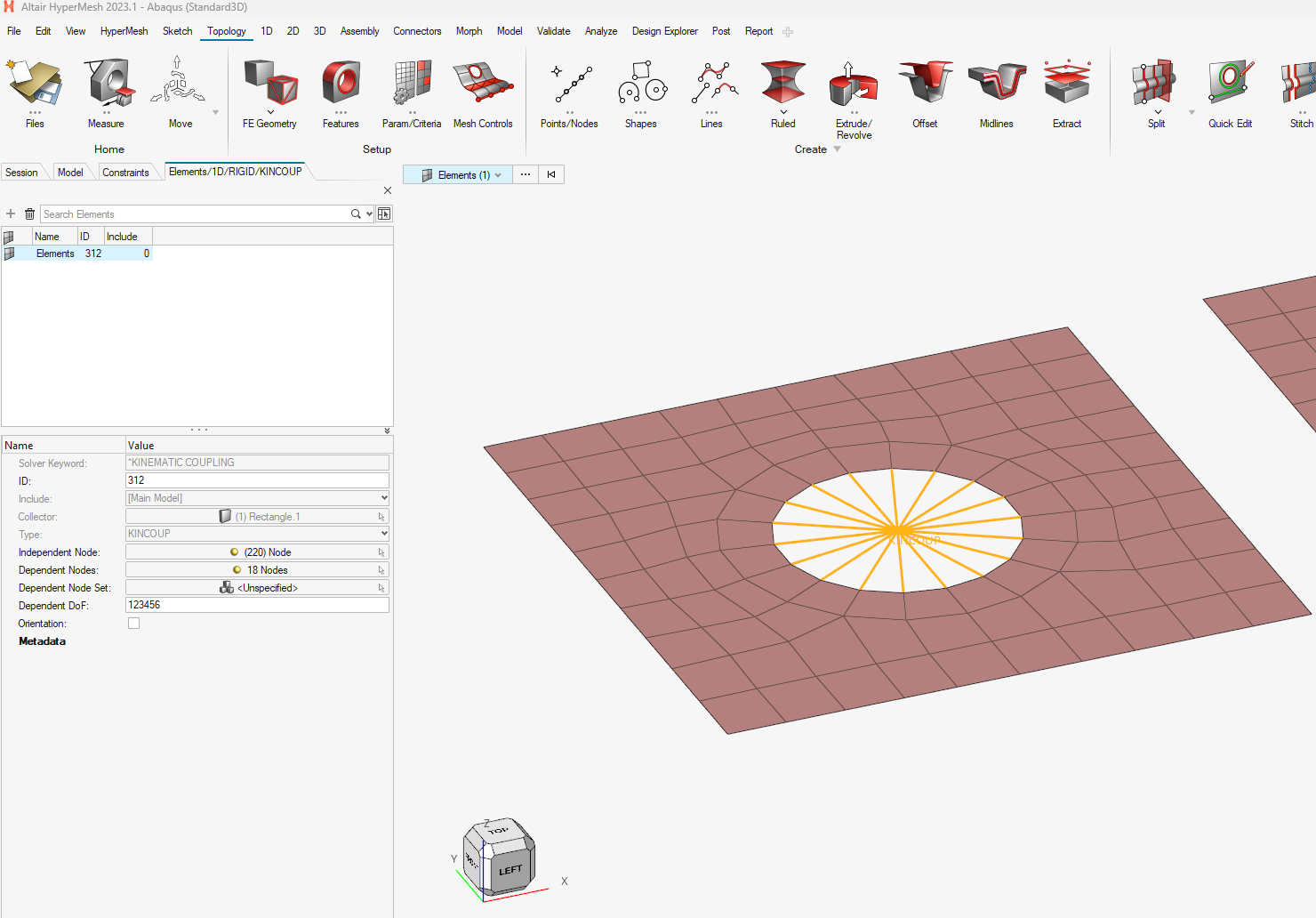

And in newer versions here

arsl_2529

Actually, I created this coupling in Optistruct and it was giving me repeated issues not to delete the node set and i was not able to update it either causing issues while running the simulation

arsl_2529

Can you please help model this one in hypermesh 2023.1 with Optistruct solver template and see if you come across the same issue? Thank you.

arsl_2529

Also, please help check if it is already defined with a dependent node set, how we can update/remove the dependent node set without deleting the kinematic couplings? Thanks.

arsl_2529

It automatically does that without even asking or a check box to create a dependent node set once i click create.

Jason_Craanen

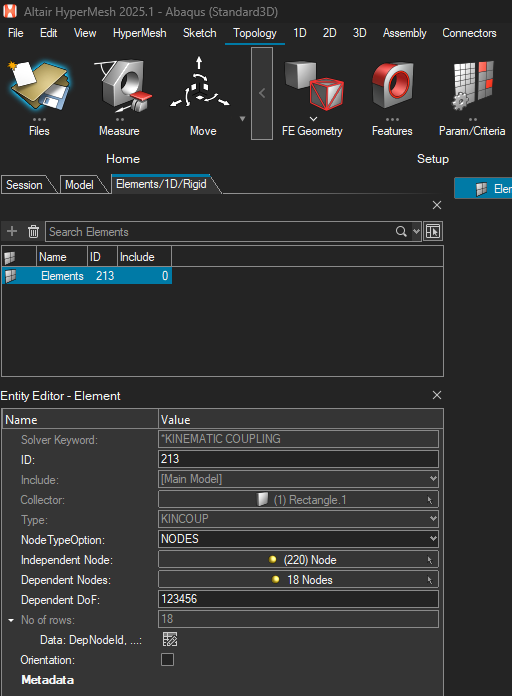

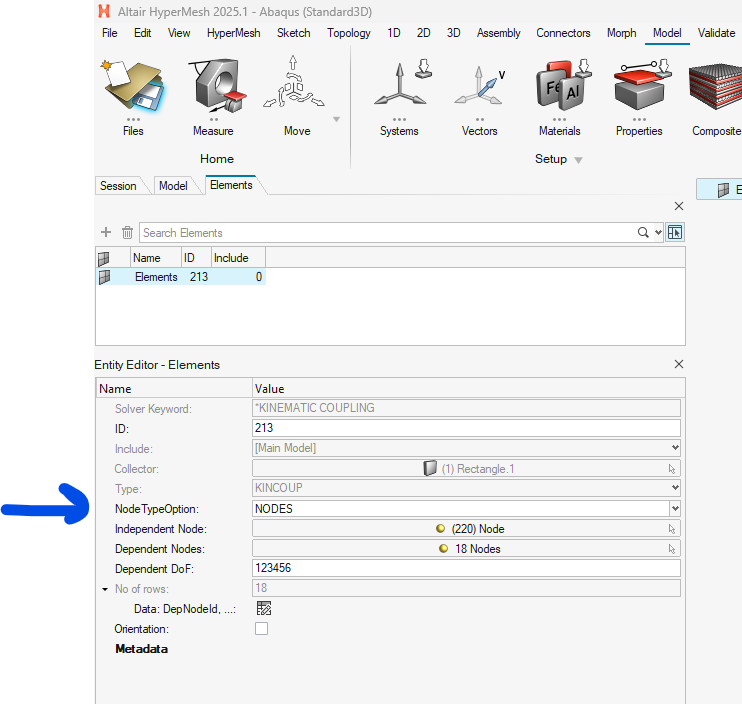

I recommend updating to the latest version as you can just change the Node Type Option

Also I am surprised it gives you an error

arsl_2529

Thanks for the feedback. I will reach out to my local IT to upgrade to the latest version if possible. Thanks once again for your help and support.
