How to add a seam weld to this assembly?

Hello,

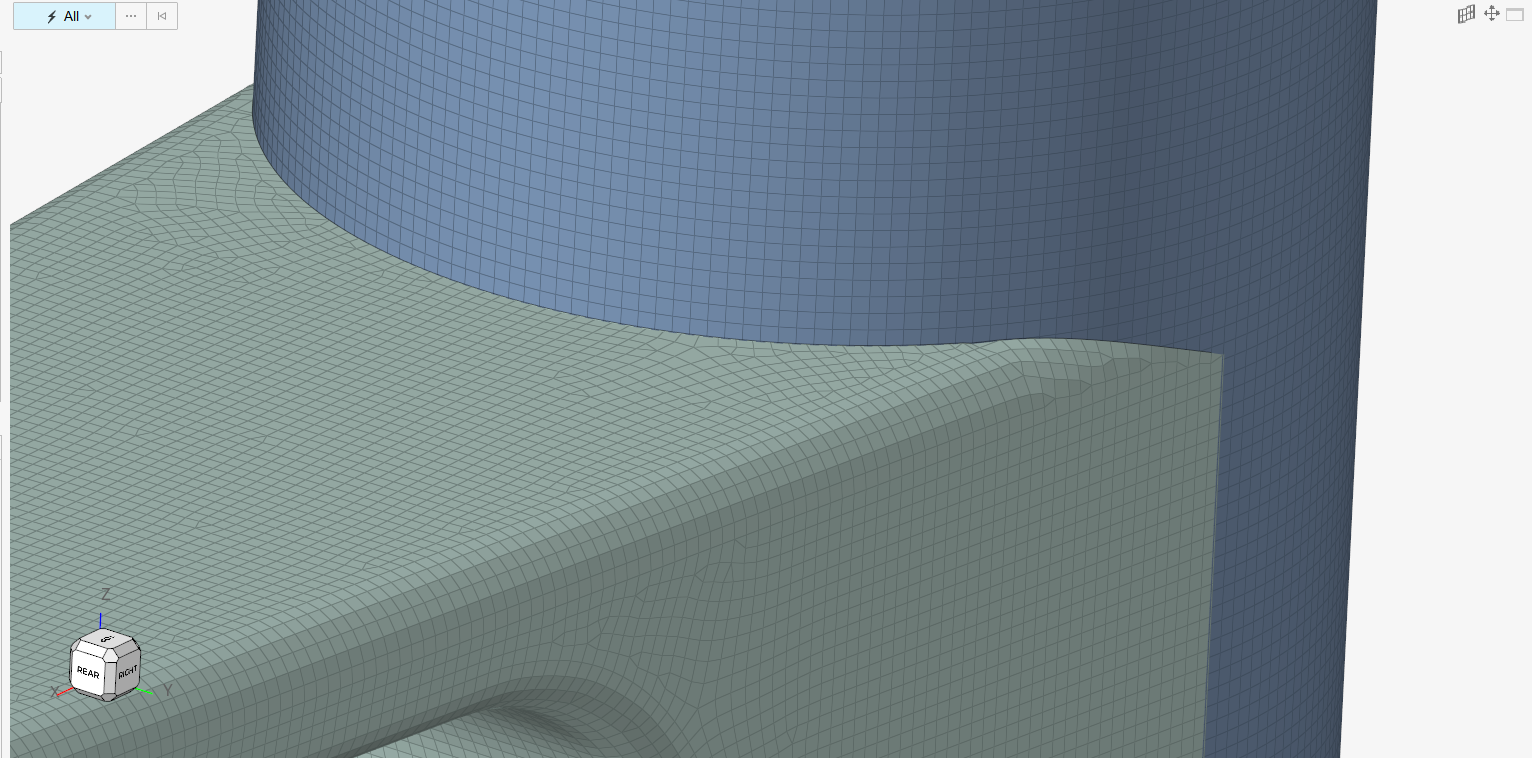

I am a relatively new user to Hypermesh and Altair products, and recently I encountered a problem regarding an analysis in which I have to use welds. I am trying to connect a cylindrical base with a mounting and I have to realize the connection between these two with welds. I checked many videos, checked the forums a lot but could not find anything that was helpful for this issue. In case it gives an idea about the assembly, I attached a photo that shows one of the edges that I have to connect, but if more information needed I can share them. If someone can give a guidance about joining these two bodies, I would be very appreciated.

Thanks, and I wish great days to everyone.

Find more posts tagged with

HyperMesh

Accepted answers

All comments

Ovando_RBB

Hey there,

Are you trying to simulate the stress at the welded area?

Toprak_Tan

Hello,

Yes, I am designing a tensile mounting and trying to see if we have some problems at the weld boundaries, so I am trying to add them and see the stresses. I saw some related videos but honestly I could not apply them to my model because they were quite different from what I am trying to do.

Ovando_RBB

Hi there,

The simplest and most effective approach is to add a chamfer to the edges of the contact zones directly within your CAD software (e.g., SolidWorks).

If you attempt to combine both geometries without modifying the interface, you'll likely introduce a sharp edge that acts as a stress concentrator that will cause significant convergence headaches during simulation.

To avoid this, use your CAD tool to merge the two volumes and apply a customized chamfer to the shared edges. This will help smooth the transition between parts and significantly improve solver stability.

Hope this comments help you.

Toprak_Tan

Hello again,

Thank you so much for the guidance! I will try this as soon as possible.
