Issue with split mesh in HyperMesh

Huyen · 2025-05-30T06:56:43+00:00

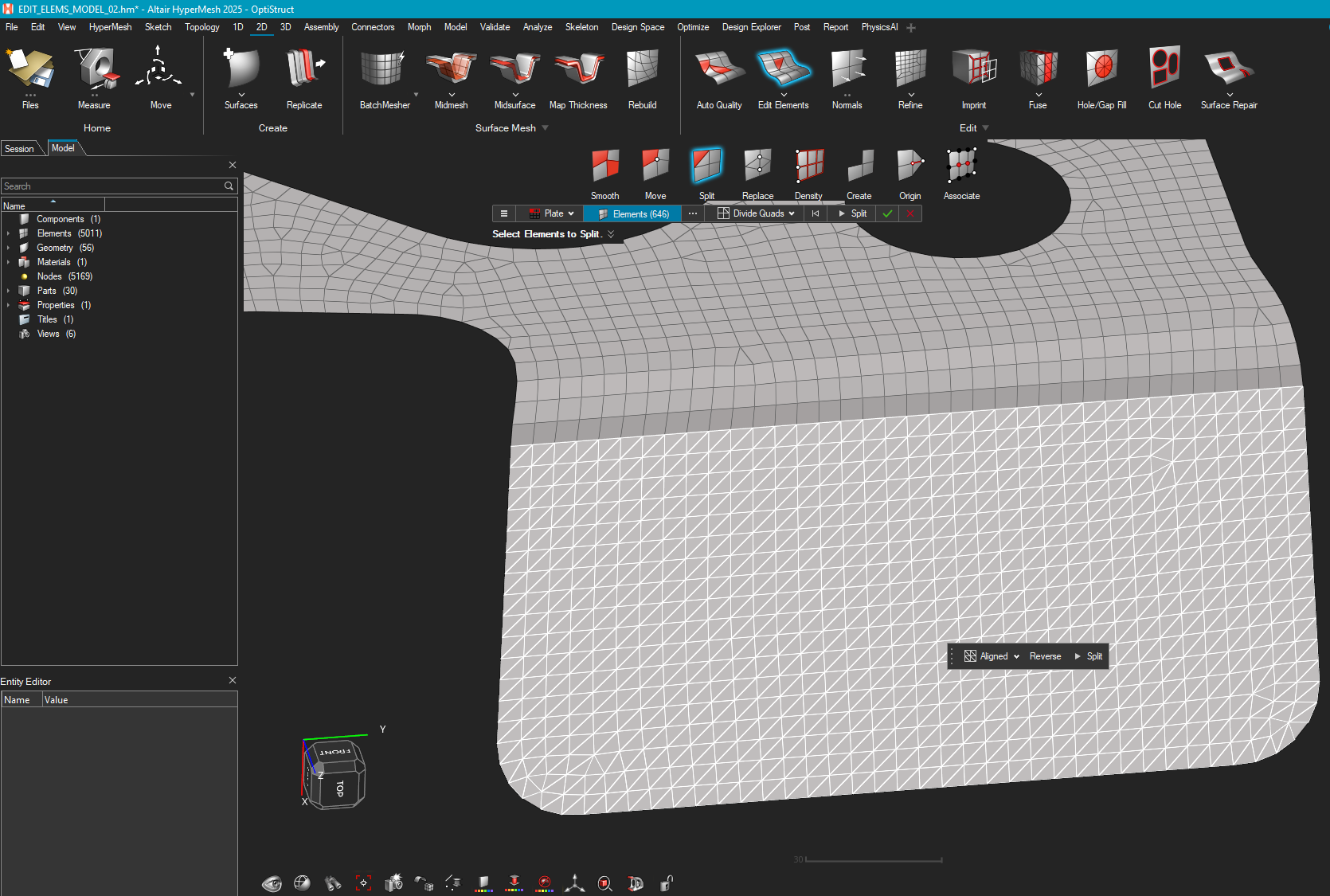

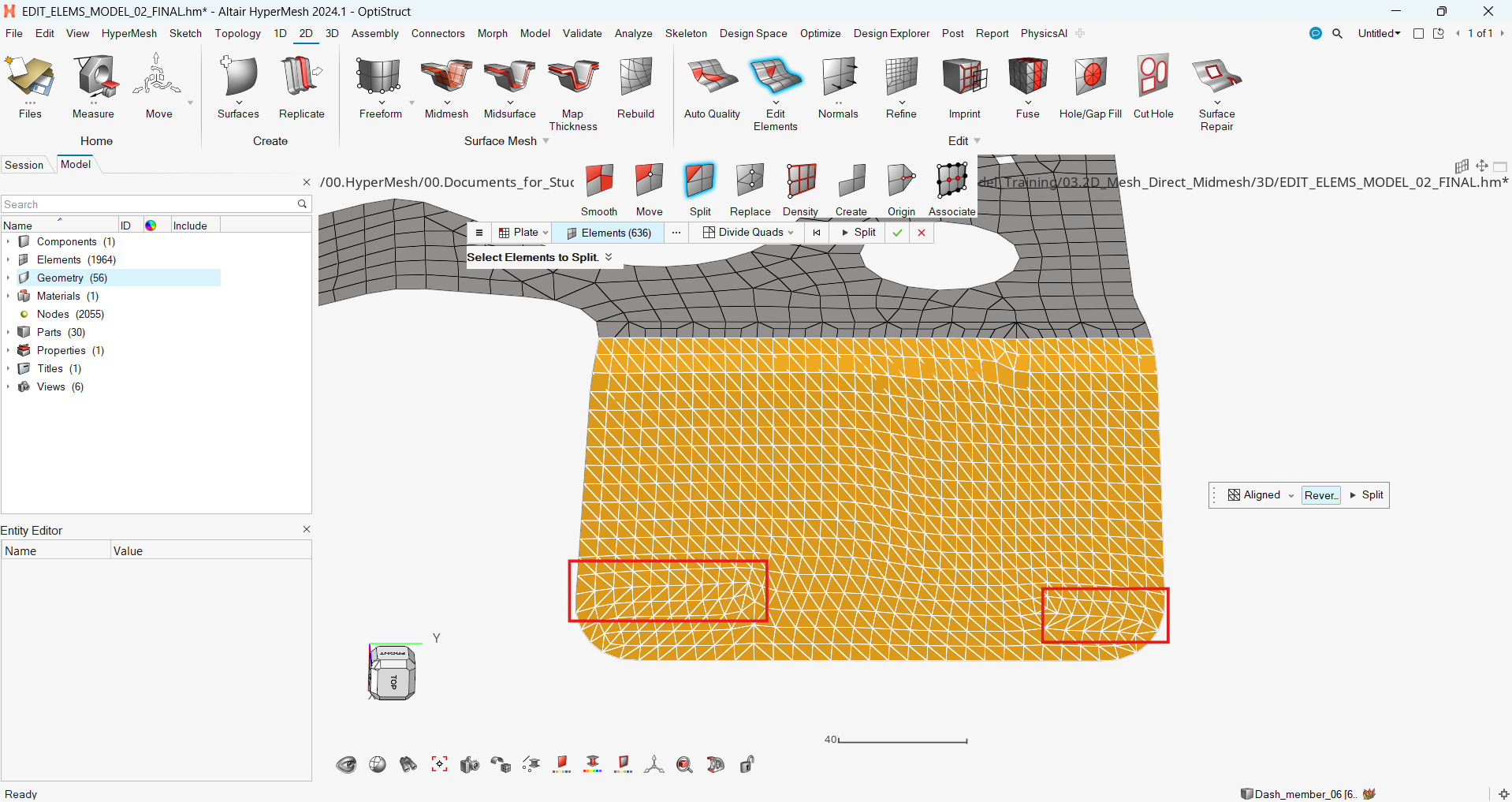

* Why is it that when I use the Split tool with the "Aligned" option (as shown in the image 1), the diagonals of the tria elements are not in the same direction (as in Image 1)? * How can I make the edges of the tria elements align in the same direction (as in Image 2) without having to manually edit each element?

Huyen

Why is it that when I use the Split tool with the "Aligned" option (as shown in the image 1), the diagonals of the tria elements are not in the same direction (as in Image 1)?

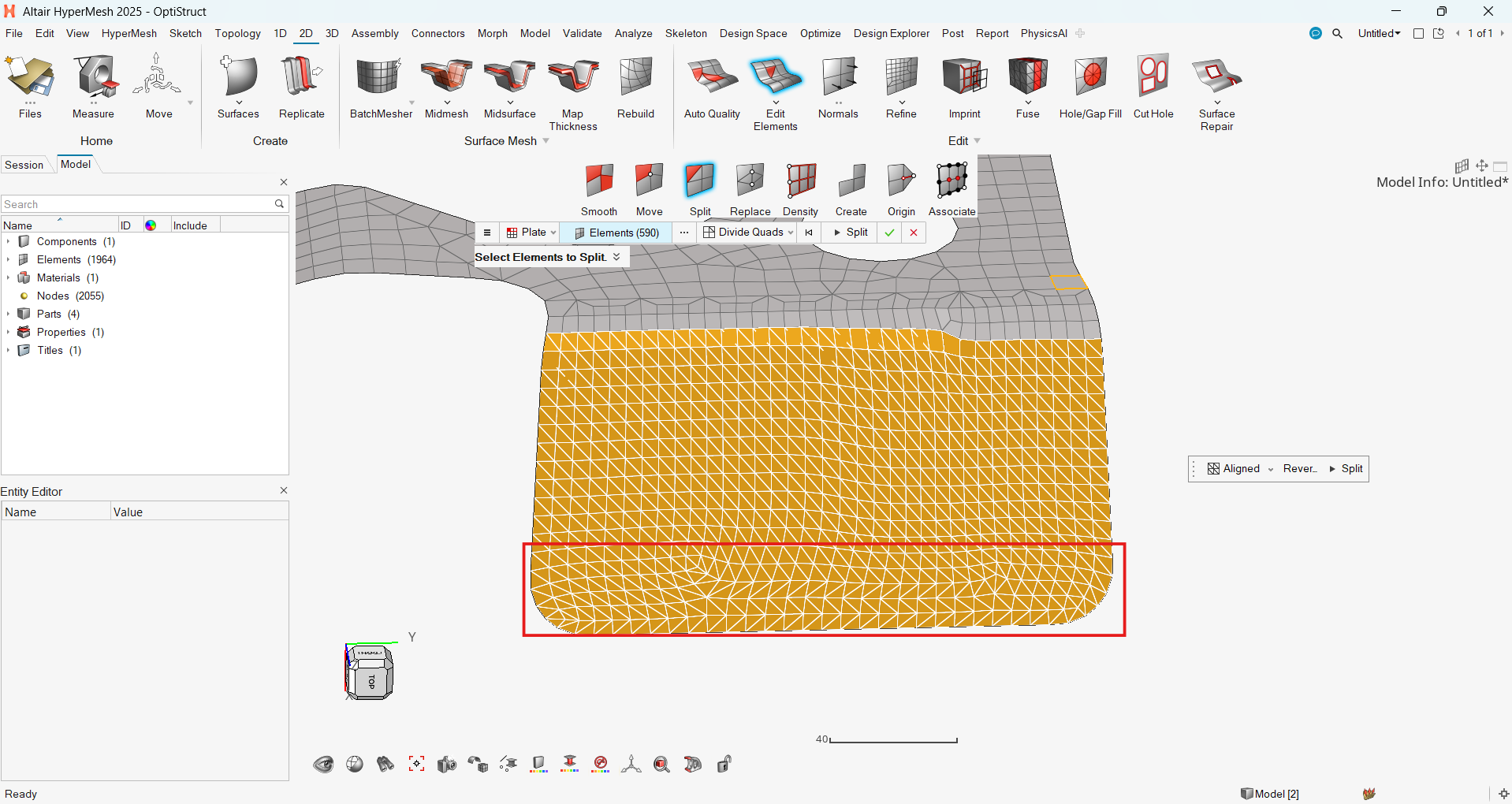

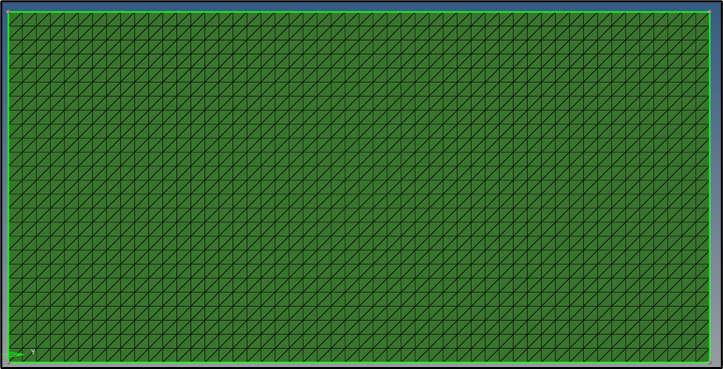

How can I make the edges of the tria elements align in the same direction (as in Image 2) without having to manually edit each element?
