Schematic Link feature - Seeking sample model

Troy_S

I can't get the Schematic Link feature to work. I'm watched the 2 videos that exist showing how to connect a coax harness to a MoM modeled edge trace but the videos do not show the details of the MoM model. Is there a step-by-step for Schematic Link? Or can someone send me a sample of a working model? Thank you very much!

GGAMPALA

Are you referring to this video:

https://community.altair.com/discussion/37168/how-to-use-the-schematic-link-feature-in-feko

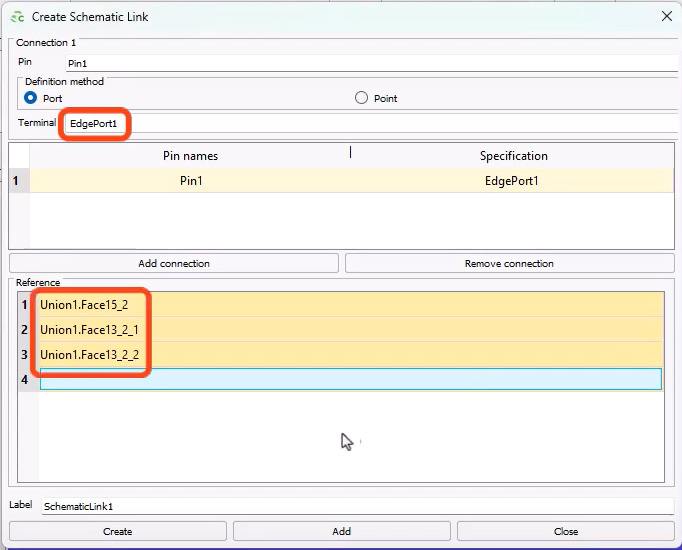

If yes, as explained in the video, please connect the pin of the coax (from cable harness) to the port on the physical coax. The faces connected to the outer conductor of the coax should be added under the reference (the three faces in the below screen shot):
