Is there any script to extract the stress at a node (NID), for all the loadcases in a file?
Hello,

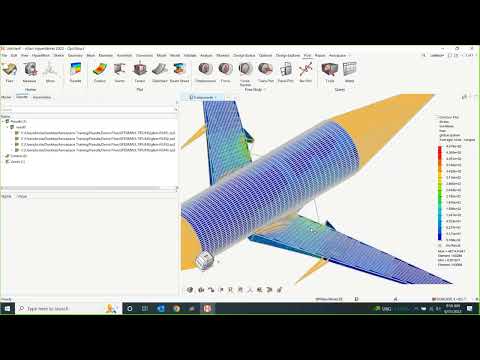

did you haev a look at Result Query:
https://youtu.be/vBiMMKv_U3M?si=jsEmBAvV25hJpNSe&t=970
Best Regards,
Michael
