Hyperstudy - How to Dictate which Thicknesses Hyperstudy investigates

Andy@LamteqSolutions

Hi all,

This question may be reasonably straight forward to answer (it isn't a trick question at all).

When I perform a hyperstudy optimisation study with plate thickness being the variable. Is it possible to dictate what thicknesses I want hyperstudy to investigate? For instance, I have a structure with a plate where I want to know what thickness I can reasonably use without going over a stress limit but I also know that the thicknesses available are 5, 10, 16, 20 mm. How do I get hyperstudy to only look at those values?

Cheers

Andy

Find more posts tagged with

English

HyperStudy

Accepted answers

All comments

Rahul Rajan_21763

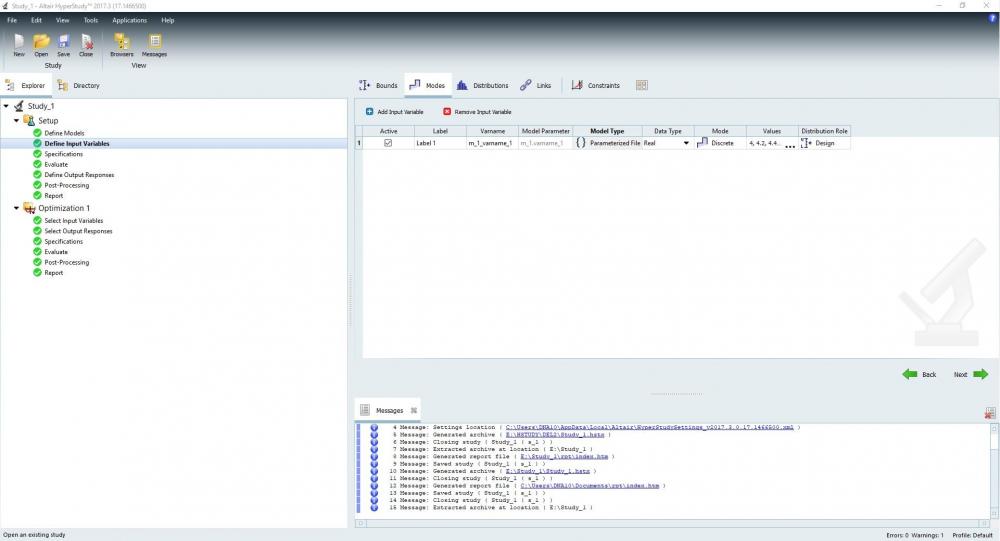

During the study setup ,set the input variable modes option to discrete. Refer attached HyperStudy tutorial.

Unable to find an attachment - read this blog

Andy@LamteqSolutions

Many thanks Rahul

Andy@LamteqSolutions

Rahul,

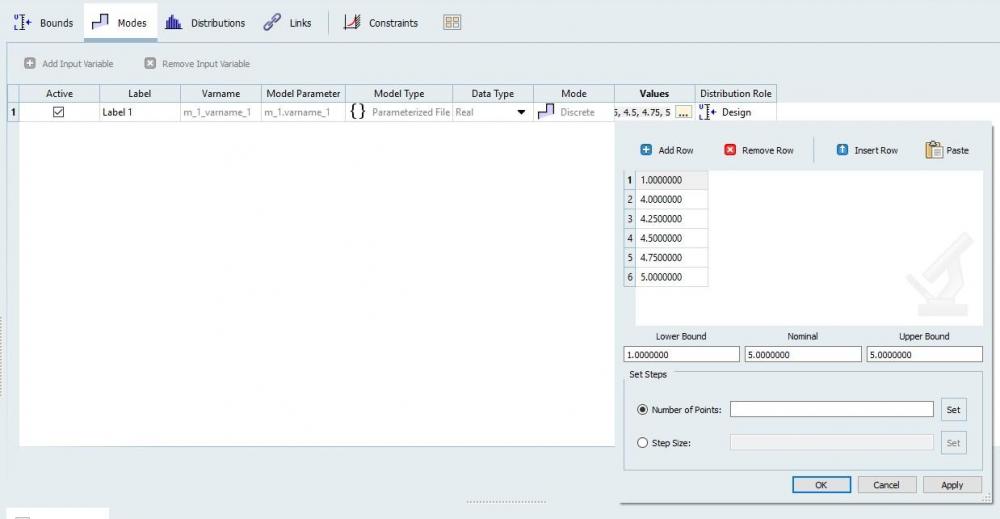

I was wondering if you could see where I am going wrong with my test. I've managed to set up hyperstudy to look at specific values and what I have is a plate with varying thicknesses on a structure with a loadcase applied.

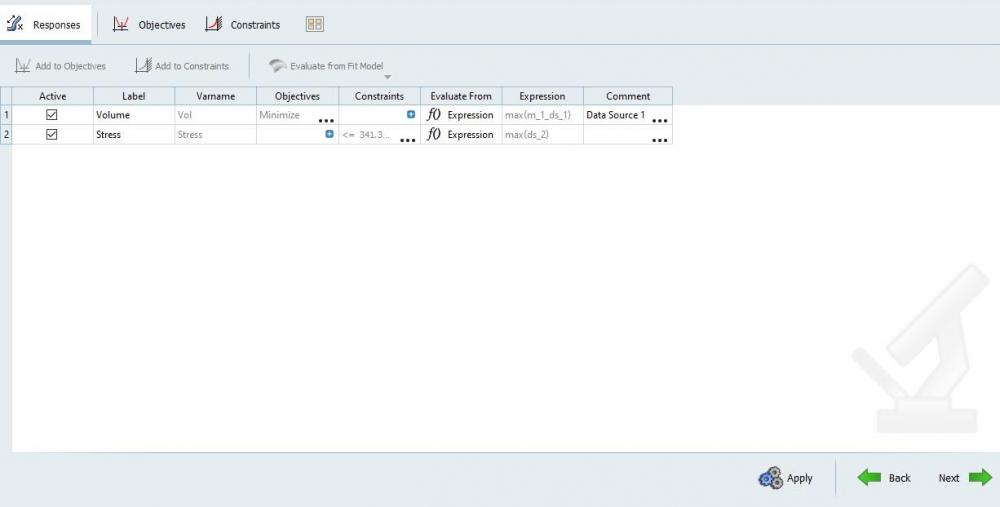

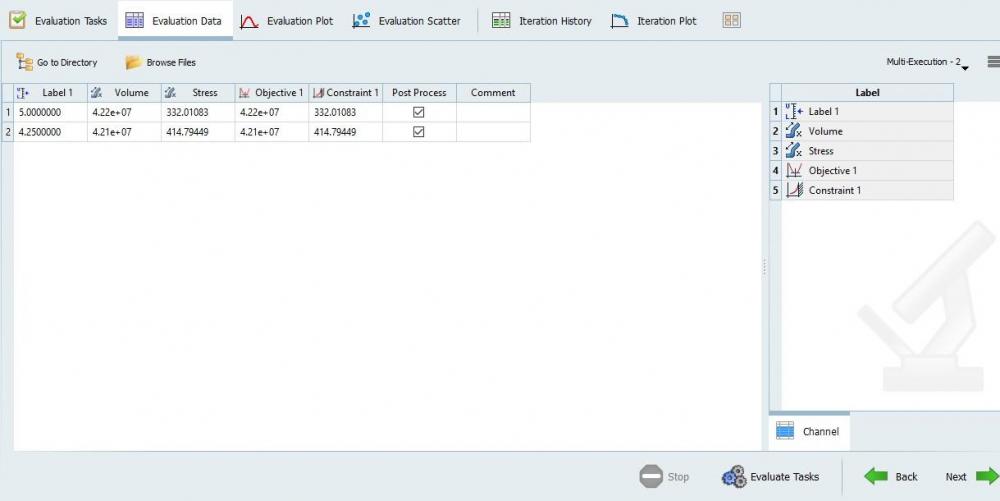

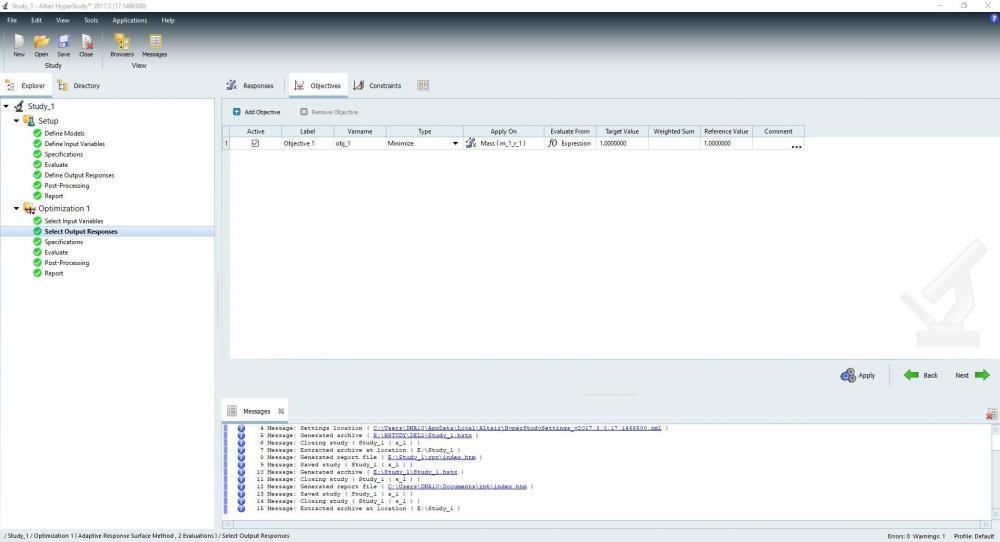

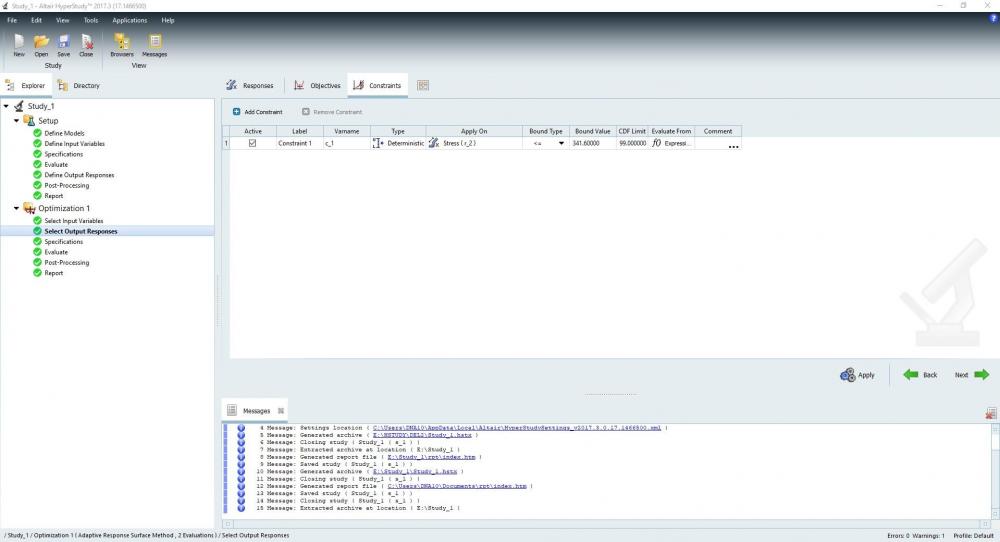

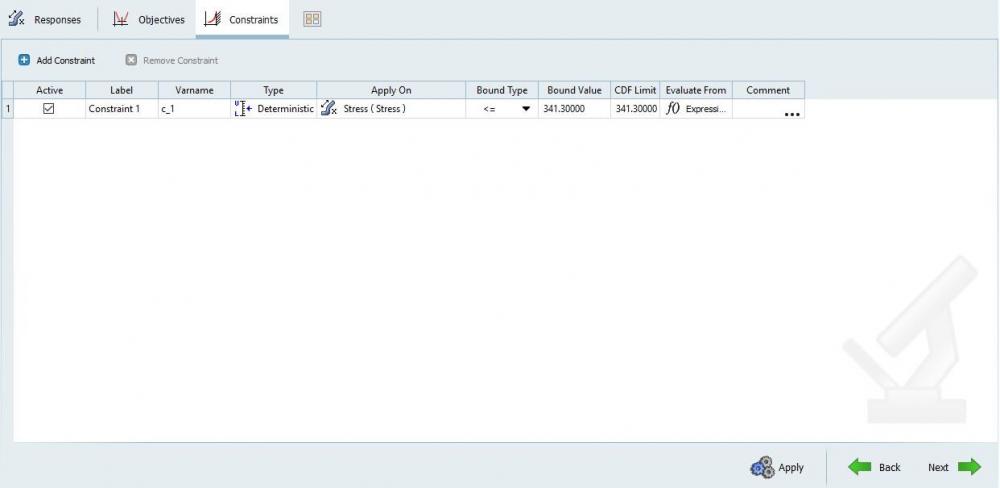

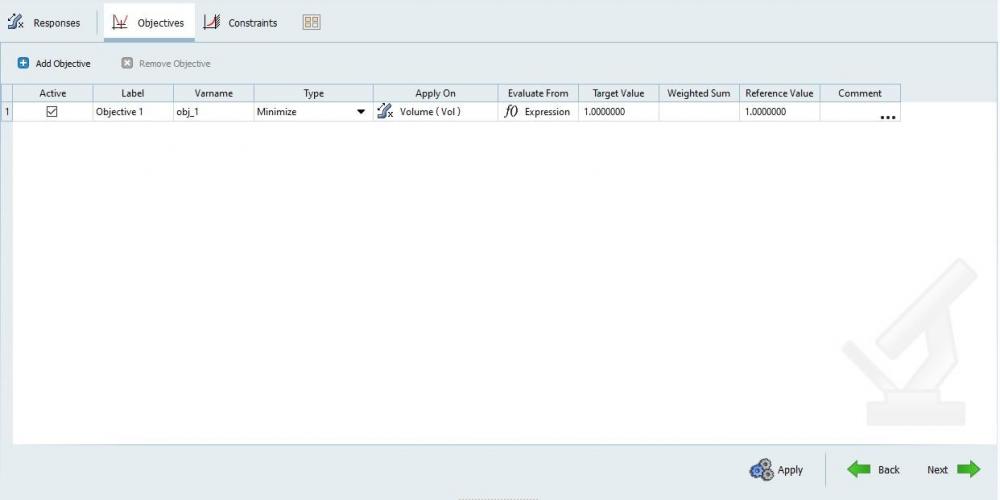

What I would like is the hyperstudy to minimise the volume without exceeding a stress value. I'm using Hyperstudy 2017.3 and have attached images from the response, objectives, constraints and the Evaluation Data. What the Hyperstudy seems to be doing is assessing 5mm thickness then 4.25mm thickness - which exceeds my stress limit but then stopping without examining 4.5 or 4.75mm. Do you see where I am going wrong? My stress limit is 341.3MPa.

Many thanks in advance.

Andy

<?xml version="1.0" encoding="UTF-8"?>

Rahul Rajan_21763

Can you please share the .hstx file of HyperStudy?

Rahul Rajan_21763

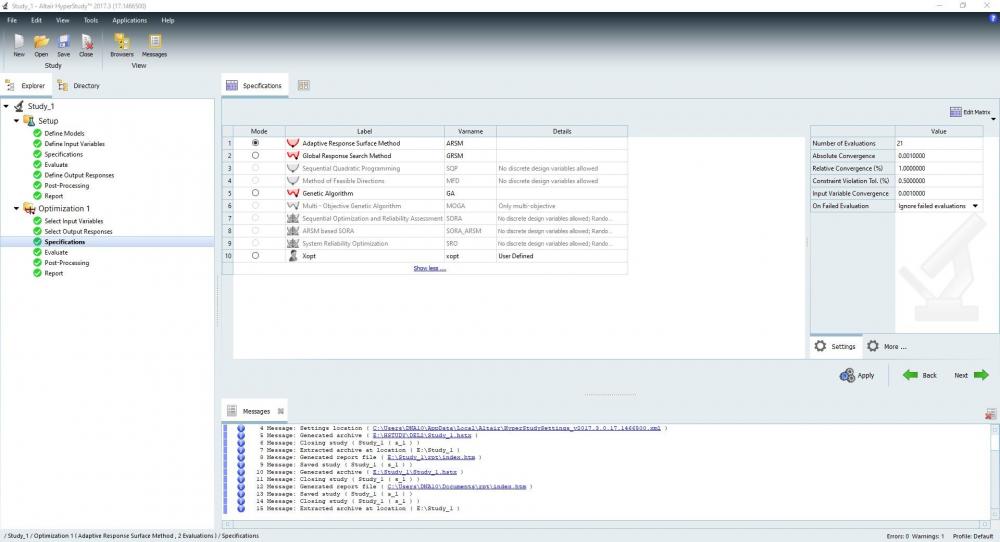

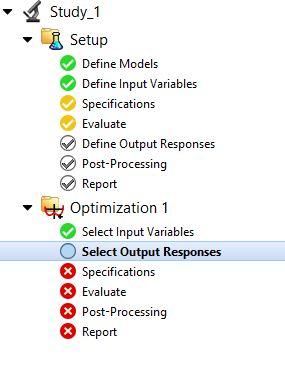

Which version of HyperStudy you are using?2017.3 or 2019.0.I see you mentioned above as 2017.3 but i unable to open same in HyperStudy 2017.3.However it opens in 2019 & 2019.1 but there, i unable to track the optimization setup fully.Which algorithm you used for optimization?Please share the screenshot for evaluation data and iteration history of Evaluate step.

Andy@LamteqSolutions

Hi Rahul,

How strange. I did open it in 2019 as a test but I don't believe I saved it in 2019.

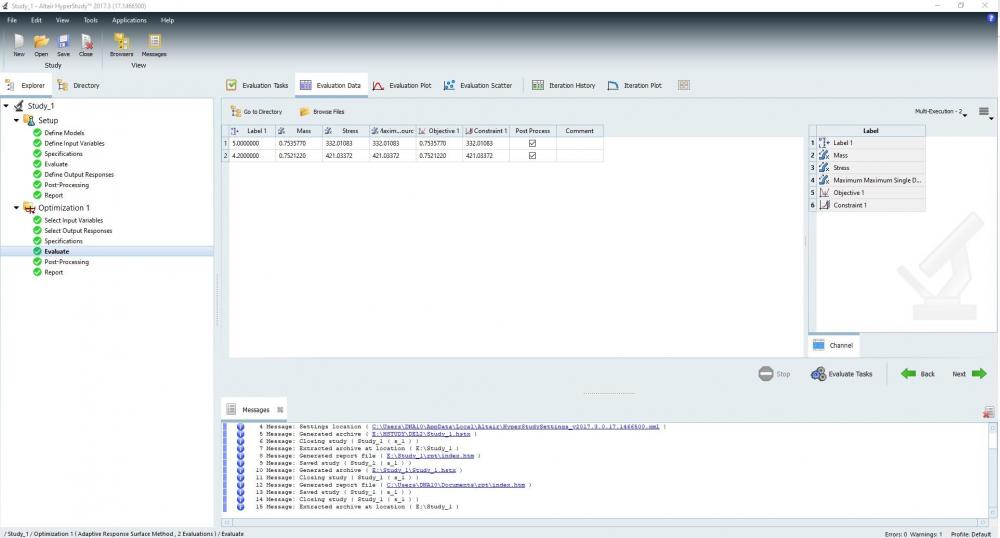

I've rerun it using 2017, this time I set it to minimise mass but the problem is still the same.

Kindest regards

Andy

Unable to find an attachment - read this blog

Rahul Rajan_21763

Still unable to find the required info.Could you save the study archieve in .hstx and share?(Save file where you have nominal and optimization run setup.

<?xml version="1.0" encoding="UTF-8"?>

Andy@LamteqSolutions

Hi Rahul,

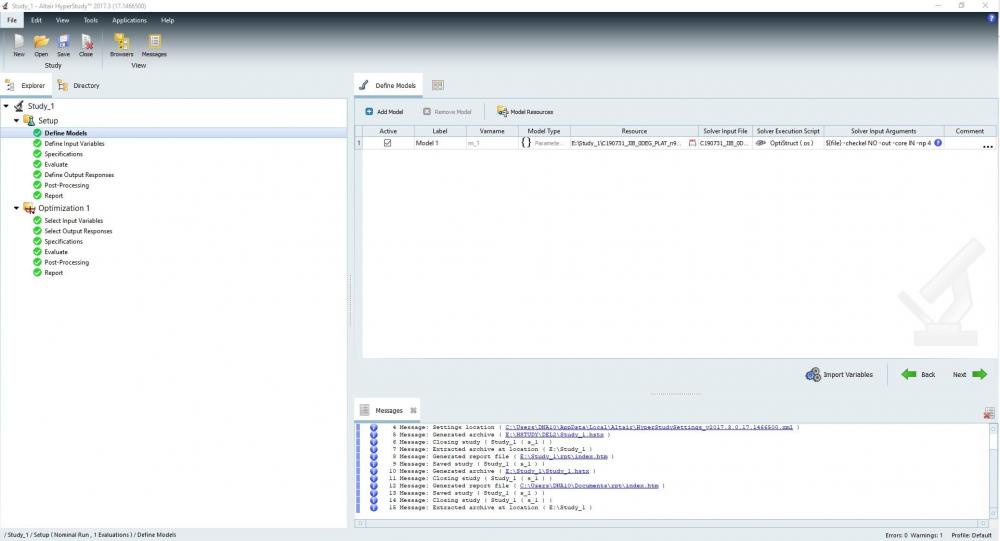

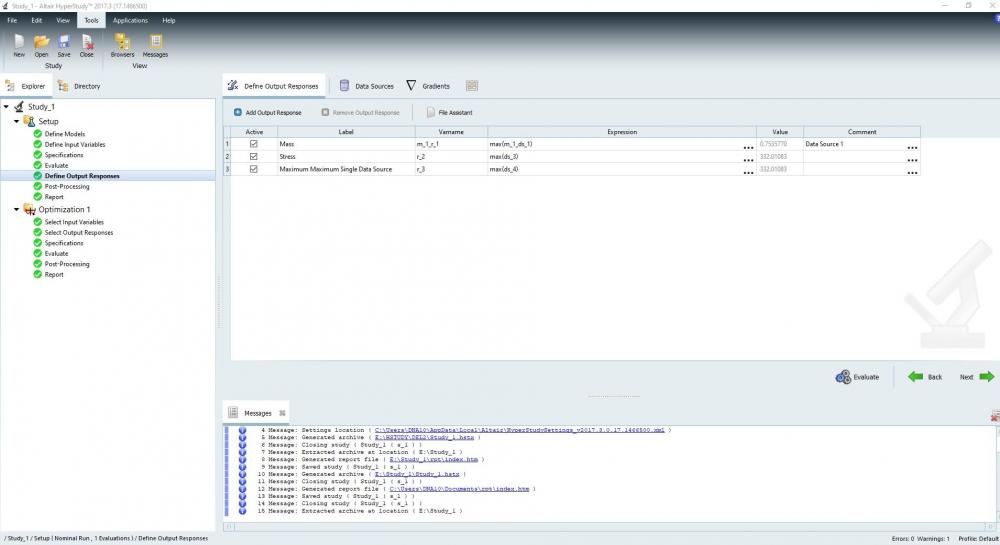

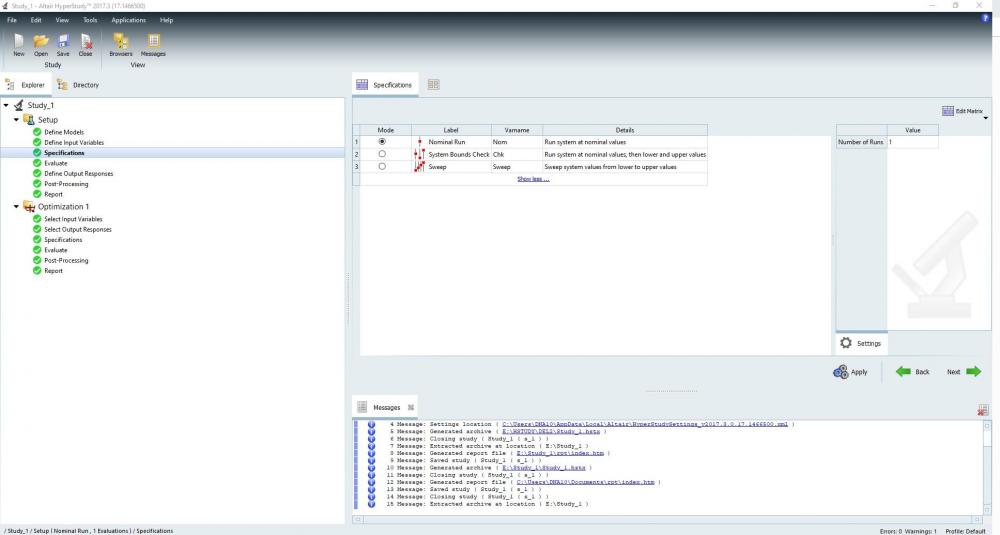

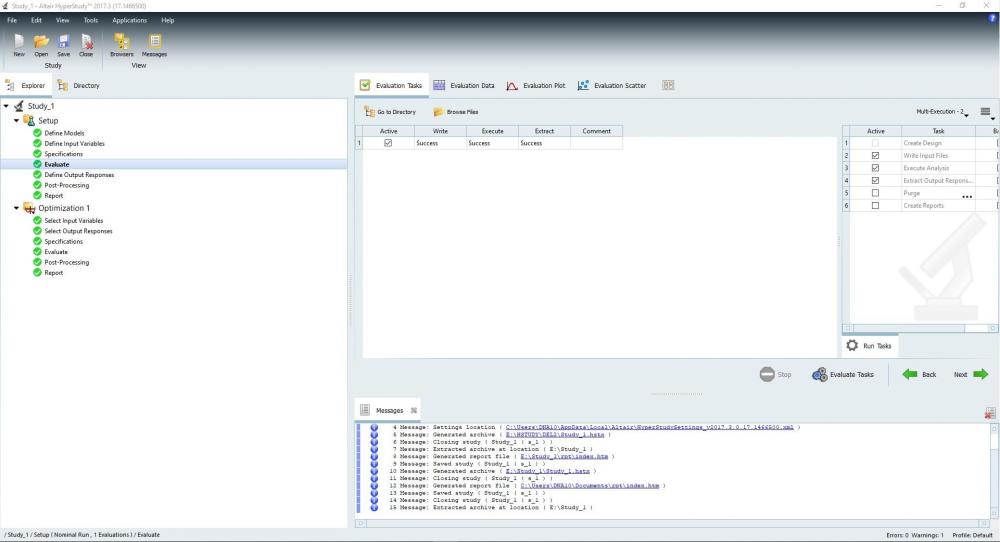

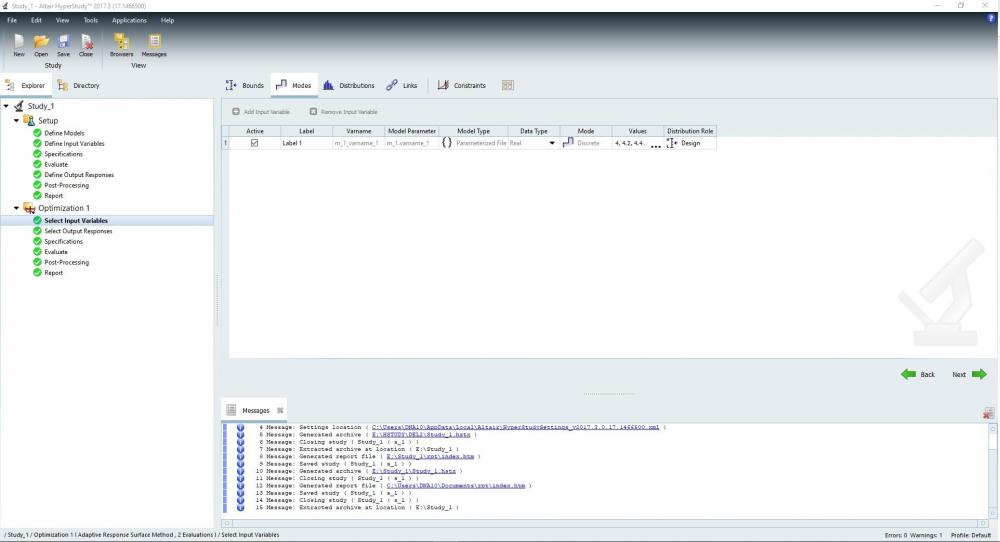

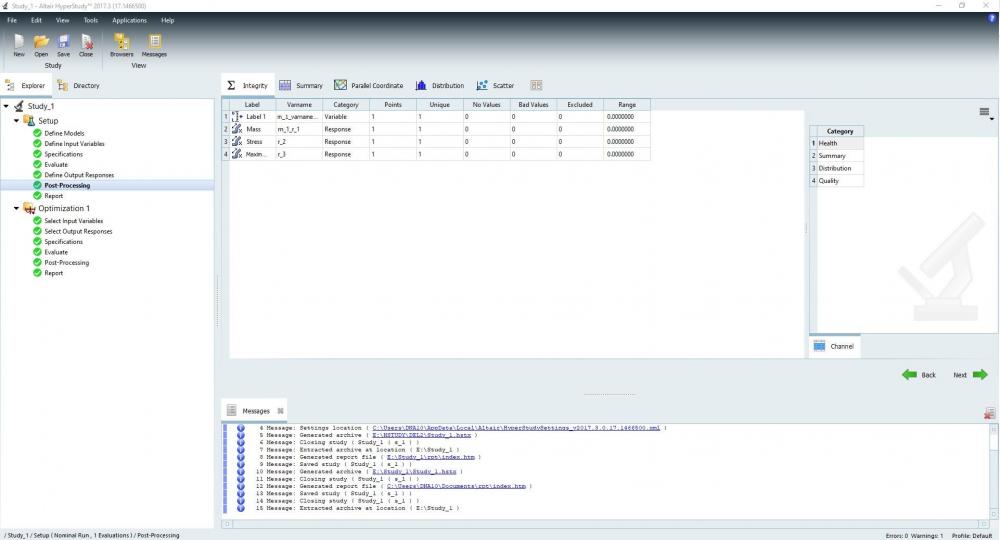

I managed to create a HSTX file however, I noticed that it contained the TPL file which is unfortunately commercially sensitive so I cannot share that file. However I have grabbed every screenshot I can. Failing this I can put together a simple model which should have the same issue (am assuming operator error on my part).

Cheers,

Andy

<?xml version="1.0" encoding="UTF-8"?>

Andy@LamteqSolutions

Hi Rahul,

I thought I'd just quickly touch base on this one. I ran a simplified model and it actually worked. Really bizarre but it did examine more thicknesses before settling on a final design. Not sure what was going on in my initial model (perhaps I'm challenging it a little hard and it's accepting the first answer... bit odd).

Thanks for all your help.

Cheers

Andy
