Mass of solids components from geometry

Pierre_20718
Pierre_20718 Altair Community Member
edited October 24 in Community Q&A

Hi there,

Is it possible to get the mass (or volume) of a solid in Hypermesh without meshing it ?

I haven 't Catia on my computer, and meshing complex solids only to check mass of a some components to have values for NSM is a little bit... noway.

Thanks

Best Answer

  • Michael Herve_21439
    Michael Herve_21439
    Altair Employee
    edited October 24 Answer ✓

    Hello Pierre,



    Mass calculation requires density information, which is owned by material ,and can only be pass to elements for mass computation by default.

    But if you are OK, you can measure volume directly on CAD, from the Measure tool in the new UI, this does not require mesh.

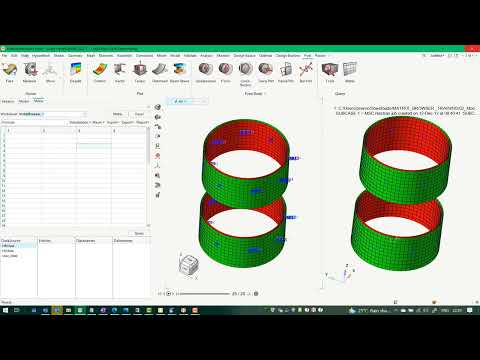

    Also ,ou could use Matrix Browser to query for solid volume and material density then multiply them in Matrix Browser. If you don't know Matrix Browser yet, here's an intro video:

    https://youtu.be/dR2C2_9tqtI?feature=shared

    Best Regards,

    Michael

Answers

  • Michael Herve_21439
    Michael Herve_21439
    Altair Employee
    edited October 24 Answer ✓

    Hello Pierre,



    Mass calculation requires density information, which is owned by material ,and can only be pass to elements for mass computation by default.

    But if you are OK, you can measure volume directly on CAD, from the Measure tool in the new UI, this does not require mesh.

    Also ,ou could use Matrix Browser to query for solid volume and material density then multiply them in Matrix Browser. If you don't know Matrix Browser yet, here's an intro video:

    https://youtu.be/dR2C2_9tqtI?feature=shared

    Best Regards,

    Michael

  • Pierre_20718
    Pierre_20718 Altair Community Member
    edited October 24

    Hi Michael,
    Thanks for your message !

    I have also looked at volumes of solids using the measure tool (here with a minimal example), but it's not computed.




    Is there measure another tool (on versions 2022.2 or 2024) ?



    With Matrix, however, it works well ;)

    I copy a screenshot if it can be usefull for someone else :




    Have a nice day !
