Wire harness Modelling using FEKO
Increase in growth of hybrid and "smart" vehicles has placed more emphasis on efficient design of wire harness that is responsible for transmitting signals between different components and the ECU. To support greater functionality, wire harnesses are becoming increasingly complex and sophisticated. Altair FEKO's cable modelling tool box provides a unique set of tools that enable increasing flexibility in design to meet quality requirements in a short span of time.
Below are a set of videos that will help an engineer to learn the basics of cable modelling using FEKO.
Example 1: Cable Modelling Tool box overview and unshielded radiating cable.
https://www.youtube.com/watch?v=dk8UxMe2YUs

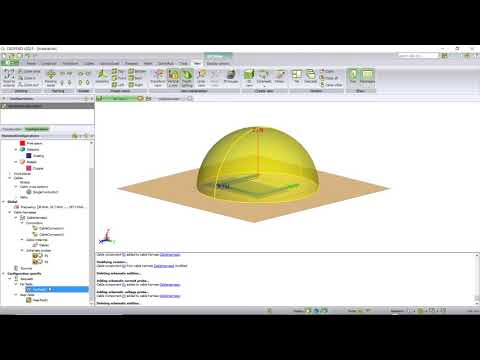

Example 2: Unshielded Victim Cable
https://www.youtube.com/watch?v=x3pJhICdKa0

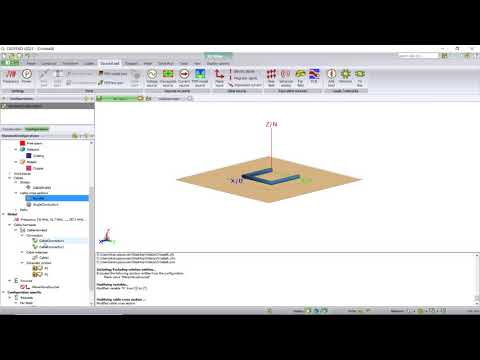

Example 3: Shielded Victim Cable
https://www.youtube.com/watch?v=8TQsn-gGMS8

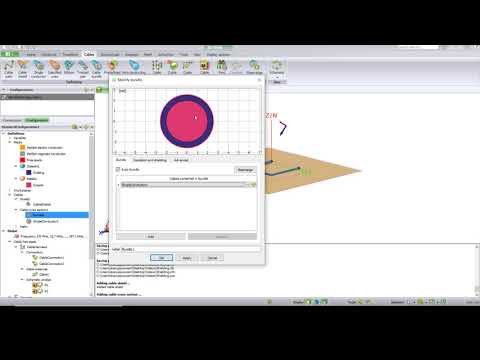

Example 4: Shielded Cable - Cross talk
https://www.youtube.com/watch?v=4N6sp2T4JfA

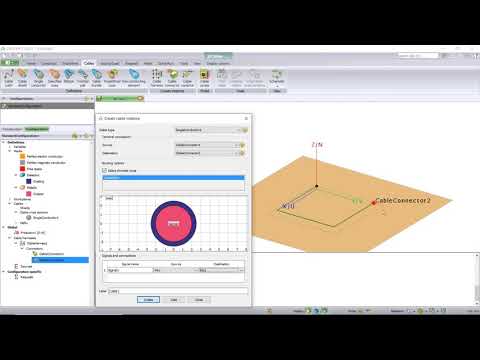

Example 5: Irradiation effects inside a vehicle.
https://www.youtube.com/watch?v=Au1fVbOPq6I
Please see the attached document for detailed step by step instruction.
