Altair Inspire® Challenge #6: Lilly Pad Optimization

Matthew_Sauer1

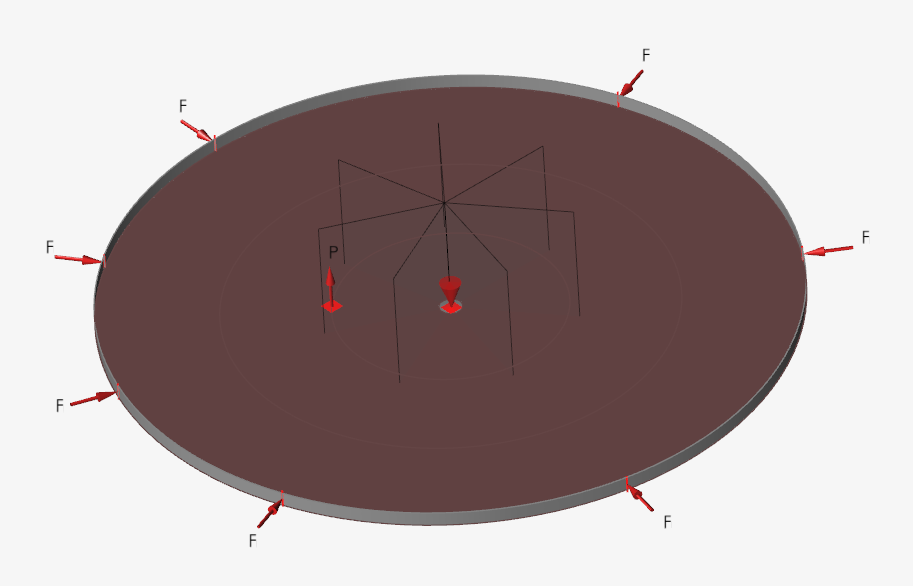

This challenge is to run a topology optimization on the base of the Water Lilly Pad that is supported at its centre, with water pressure loads in the vertical and horizontal directions.

Note that the location of the ribs in nature is not purely based off of achieving maximum stiffness, or minimum mass, but also considers nutrient transport, and other functions necessary to the plant.  We will be focusing exclusively on the structural aspects of the rib layout for this challenge.  Your objective is to maximize the stiffness while reducing mass.

The attached STMOD file is your starting point.  Feel free to adjust the design space, manufacturing constraints, and optimization settings to come up with the ideal massing.

Level: Easy

Product Required: Altair Inspire

The solution can be attached in the comment section of this post. The desired output format is a PNG or JPG showing the optimized rib layout, and analysis results.

The solution to Challenge Prosthetic Knee Motion Analysis can be found here: https://community.altair.com/community?id=community_blog&sys_id=49d2c6271b59fd10c4dfdbd9dc4bcb0b

If you would like to solve more challenges and get regular challenge release updates, Subscribe to the Altair Community Challenge forum

Ripfumelo

Hi Mathew & everyone, i found this tricky, the optimization solution does leaves a huge gap between the outer ring (partition) and the design space. Please advice

Matthew_Sauer1

Ripfumelo said:

Hi Mathew & everyone, i found this tricky, the optimization solution does leaves a huge gap between the outer ring (partition) and the design space. Please advice

Hi there,

Have you experimented with different min and max thickness values?  Do you notice a different distribution of the optimized massing?  In the interest of fairness for this challenge, I do not want to give too much away, but that may be something worth investigating.

SouravDas

Hi Matt,

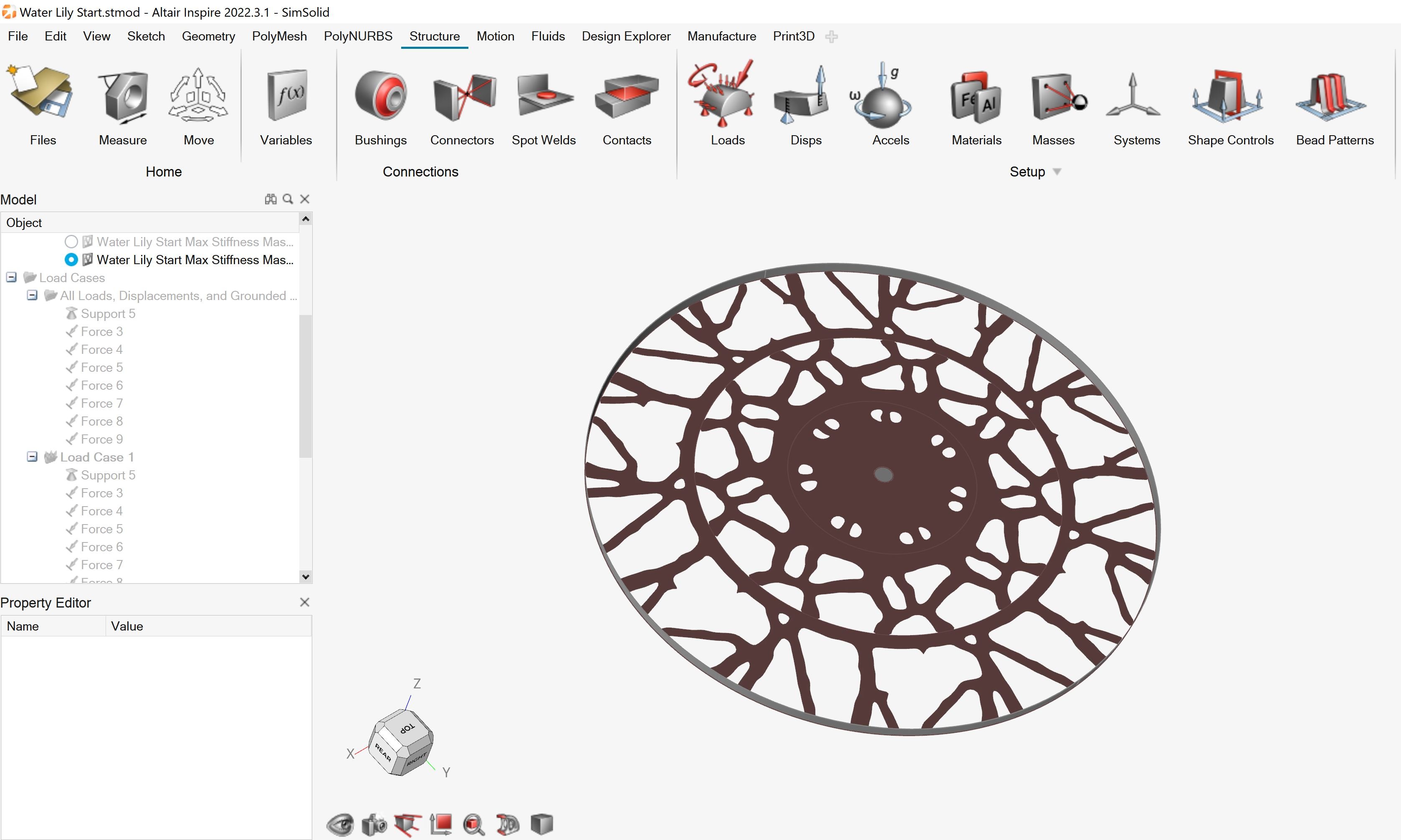

PFA my Water lily design , Do let me know if you need more designs.



Regards,

Sourav

Matthew_Sauer1

Sourav Das_20575 said:

Hi Matt,

PFA my Water lily design , Do let me know if you need more designs.



Regards,

Sourav

Beautiful!  Thank you for your submission, Sourav.

Ripfumelo

Re-done the challenge

Matthew_Sauer1

Ripfumelo said:

Hi Mathew & everyone, i found this tricky, the optimization solution does leaves a huge gap between the outer ring (partition) and the design space. Please advice

Great work!

Sakshi Patil

Dear sir,

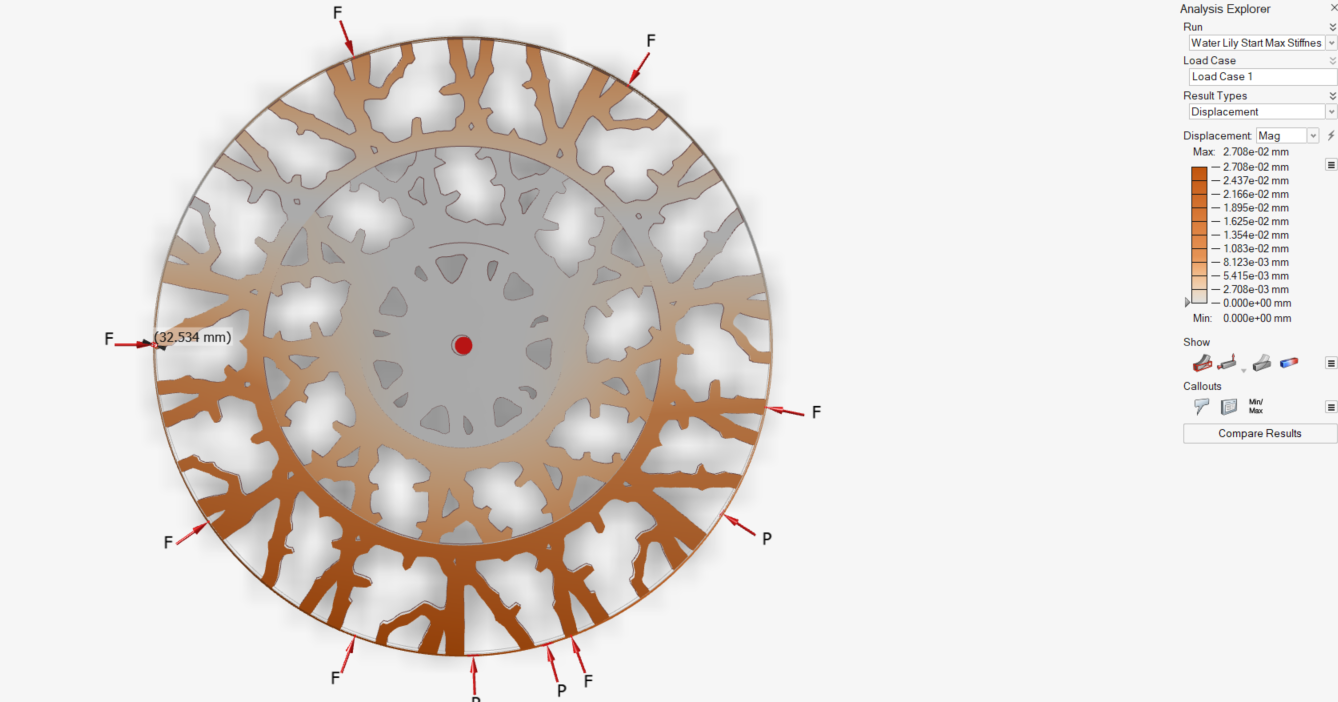

I have done optimization of Lilly pad in three different ways (by changing manufacturing constraints, and optimization settings).  please check the results

Matthew_Sauer1

Sakshi Patil said:

Dear sir,

I have done optimization of Lilly pad in three different ways (by changing manufacturing constraints, and optimization settings).  please check the results

Great work, Sakshi!  Impressive results.

Karli

Ok,

Here is my try:

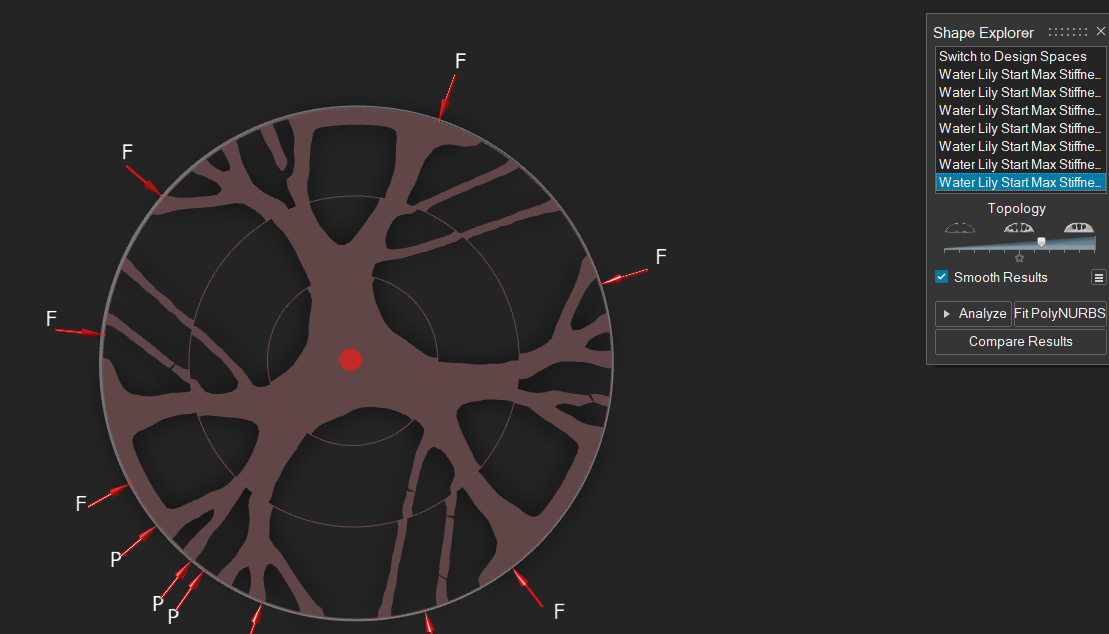

1. basic

2. With Frequency Constraints

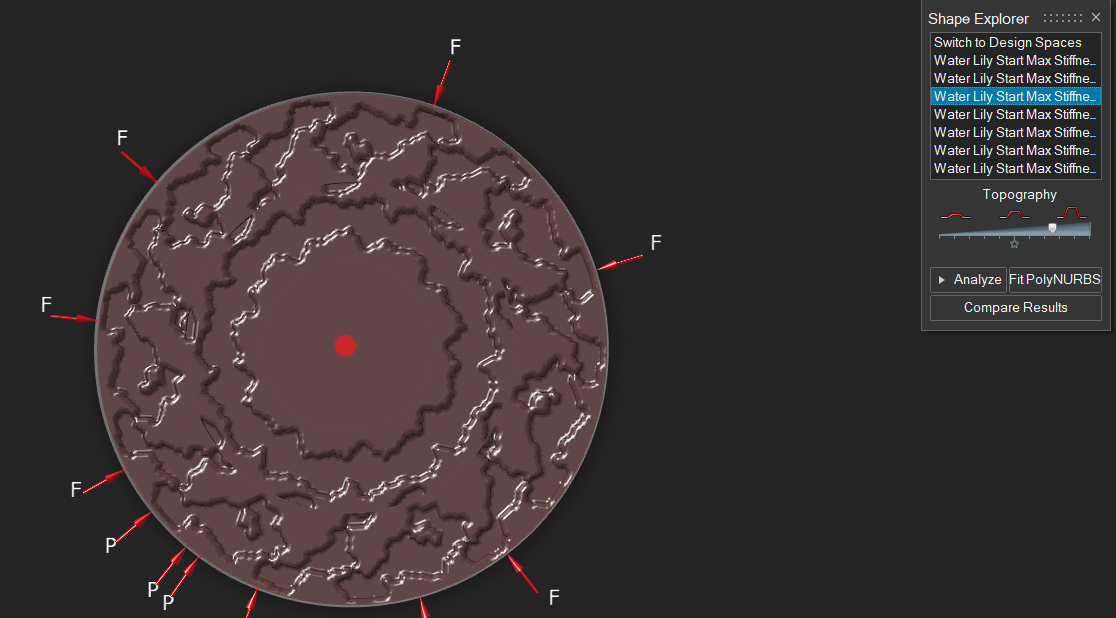

3. Topography optimation



4. With only 3 sectors in shape control

Matthew_Sauer1

Karli said:

Ok,

Here is my try:

1. basic

2. With Frequency Constraints

3. Topography optimation



4. With only 3 sectors in shape control

I like it, thank you for showcasing the different outcomes Karli!
