HyperWorks 2022.2 Release Highlights: Composites

Andre_Mönicke

The HyperWorks 2022.2 release has multiple composites related enhancements:

1. HyperWorks Integrated Composite Stress toolbox
   • Engineering constants, strength, and load response/failure analysis
   • Support for thermal properties in engineering constants and load response
   • Extension of composite plate loads to thermal loads
   • Load response of elements based on loads from result files including numerical reports and through-thickness-plots
2. Multiscale Designer materials support in engineering constants and load response analysis
3. New injection mold mapping workflow to connect manufacturing and structural simulation seamlessly
4. Advanced cure simulation with Altair Partner Alliance software by LMAT

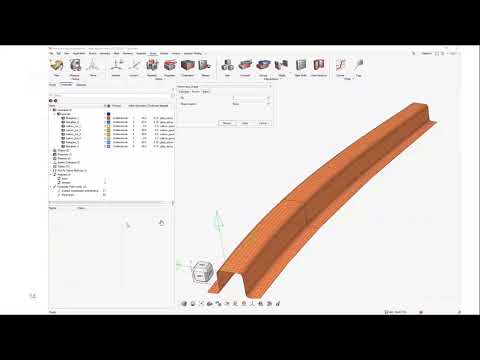

Please watch the below video to gain insight on all the details of the new workflow and features listed above.

https://www.youtube.com/watch?v=yXUuh4OC5Ik
