Integrate the Power of Sketcher in Your Beam Sections

Stauffer

In the latest release of 2022.2 we introduced several enhancements to beam section modelling. These include:

• Integration of Shell/Solid/Elastic sections with sketch entity with live link
  • parameterization of sections using a sketch variable
• Introduction concept of internal parts in beam sections

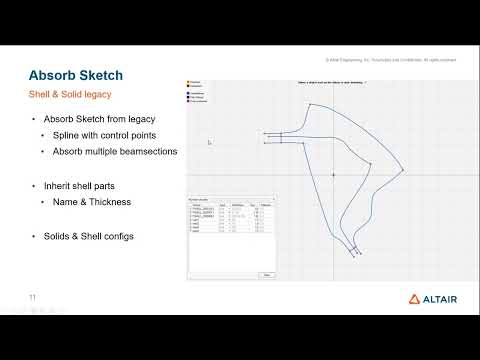

• Absorption sketch from legacy shell beam sections
• New ribbons to create beam sections
  • from section cut in model
  • from planar entities

Watch this webinar to learn how to leverage the power of Sketcher to model beam cross sections.

https://www.youtube.com/watch?v=u08Ub4duul0
