Dear Altair Embed Support Team,I have a question regarding the use of embed:I have three function blocks and I would like to know, if it is somehow possibleto enable/use the function blocks one after another (for a certain time) so that only one block is enabled at a time.I would like to know if it is possible to put these function-blocks into a finite state machineand perform every block as a state.Is that possible?Or is there a different solution for that?I attached a picture of the three function-blocks, which I would like to enable one after another.Thank you for your help
Kind regards Markus
Hi Markus,
I recommend you look at the state charts in Embed ?
You can find multiple examples here:

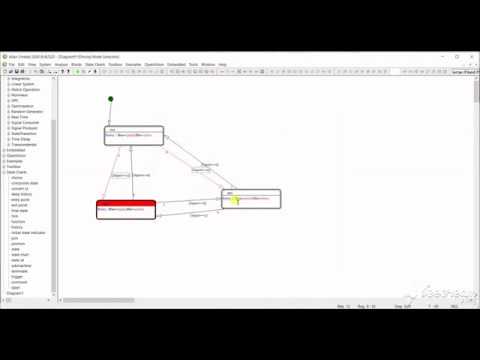

Here is a video that should help as well getting a statechart setup and running from scratch
https://www.youtube.com/watch?v=WT3GnRbsdbg
--sreeram
