Create antenna to be used for ProMan

Aldo Bari

Hi everyone,

I am new to this program and I was trying to make an antenna to use as a pattern antenna in ProMan.

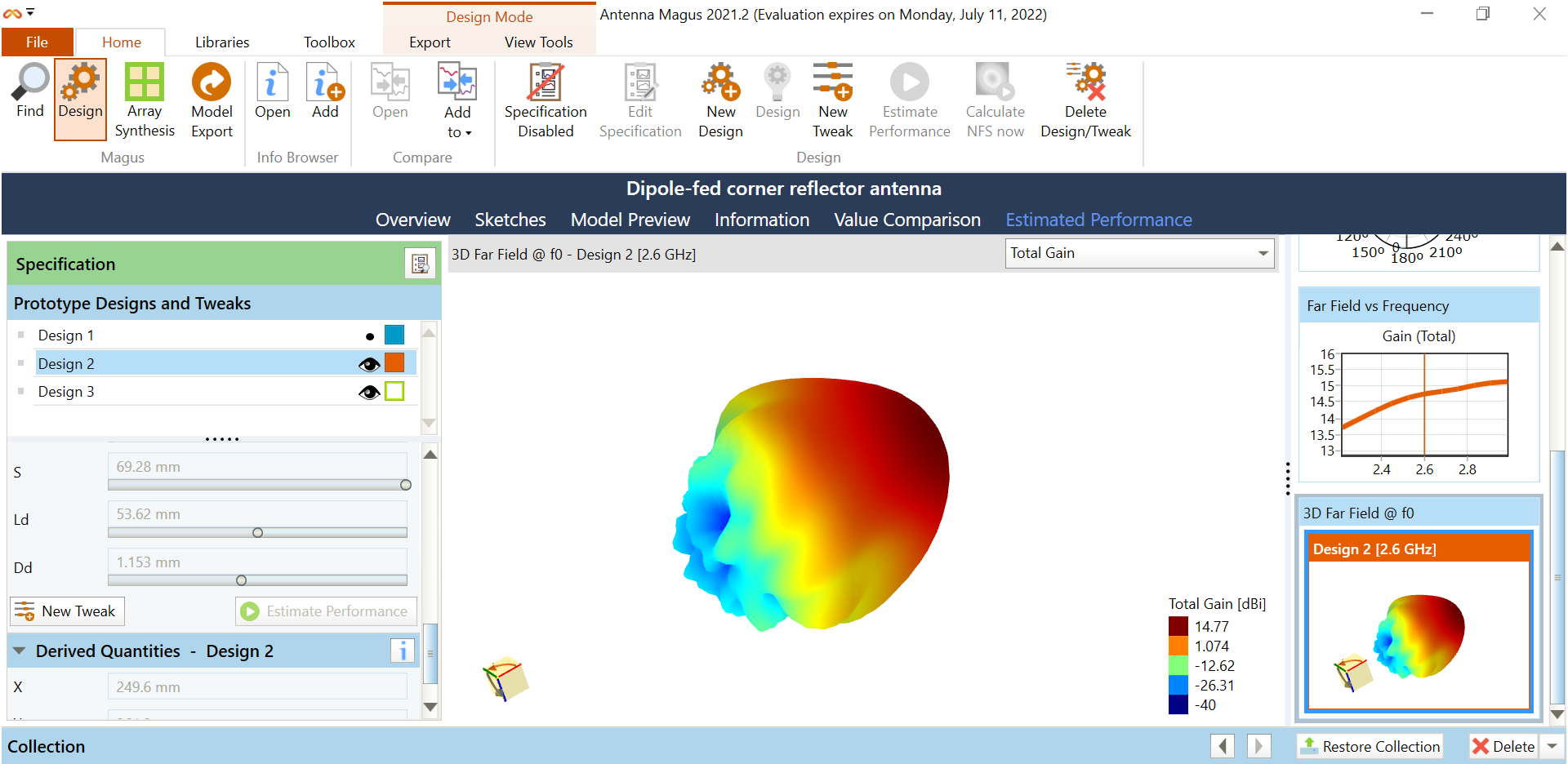

I used an antenna of those available on Antenna Magus, modifying some variables, such as frequency and gain.
I then estimate performance and exported the model.

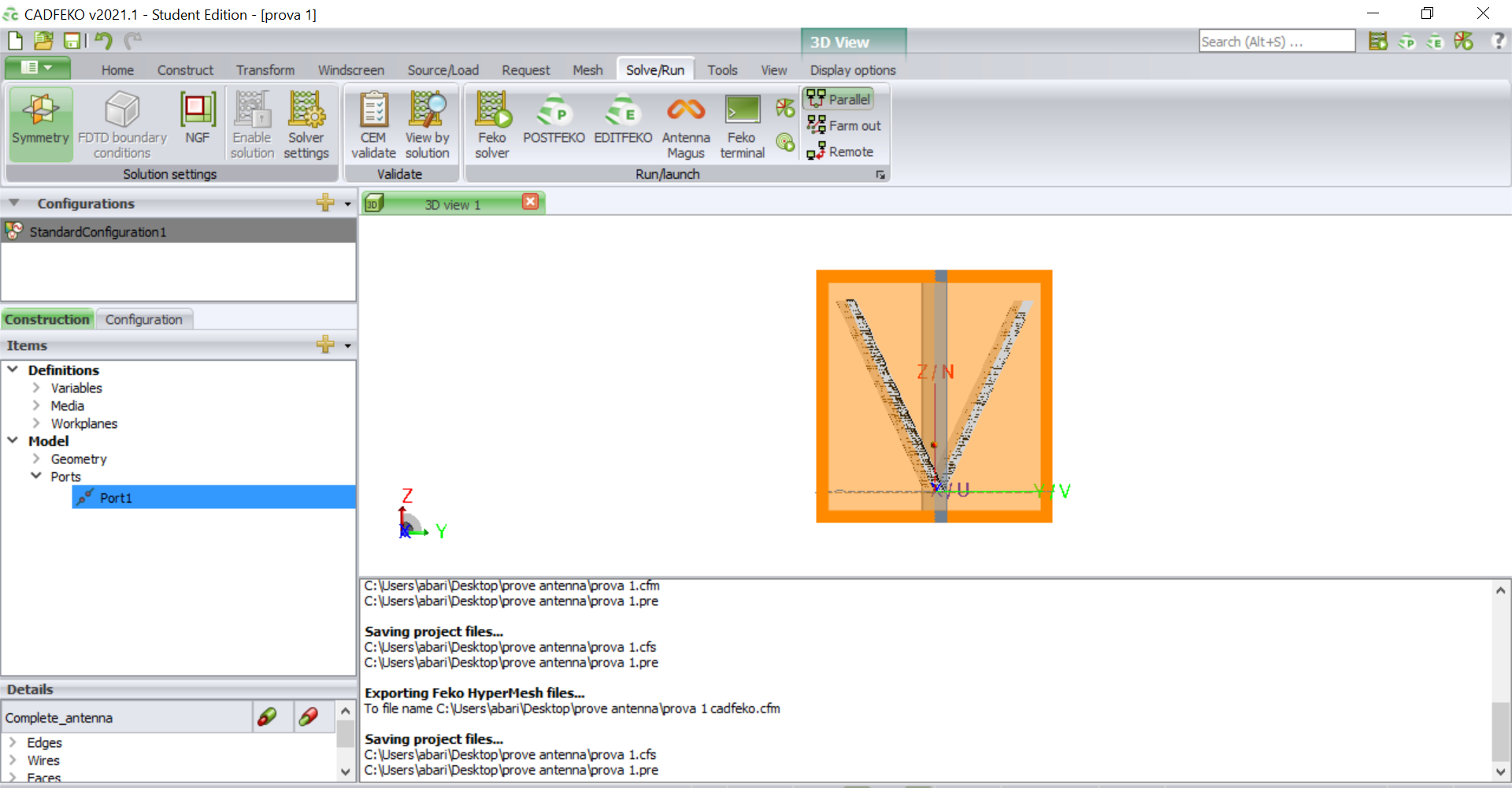

I then opened the model created with CADFEKO, in which I created the mesh, performed the feko solver and exported the model.

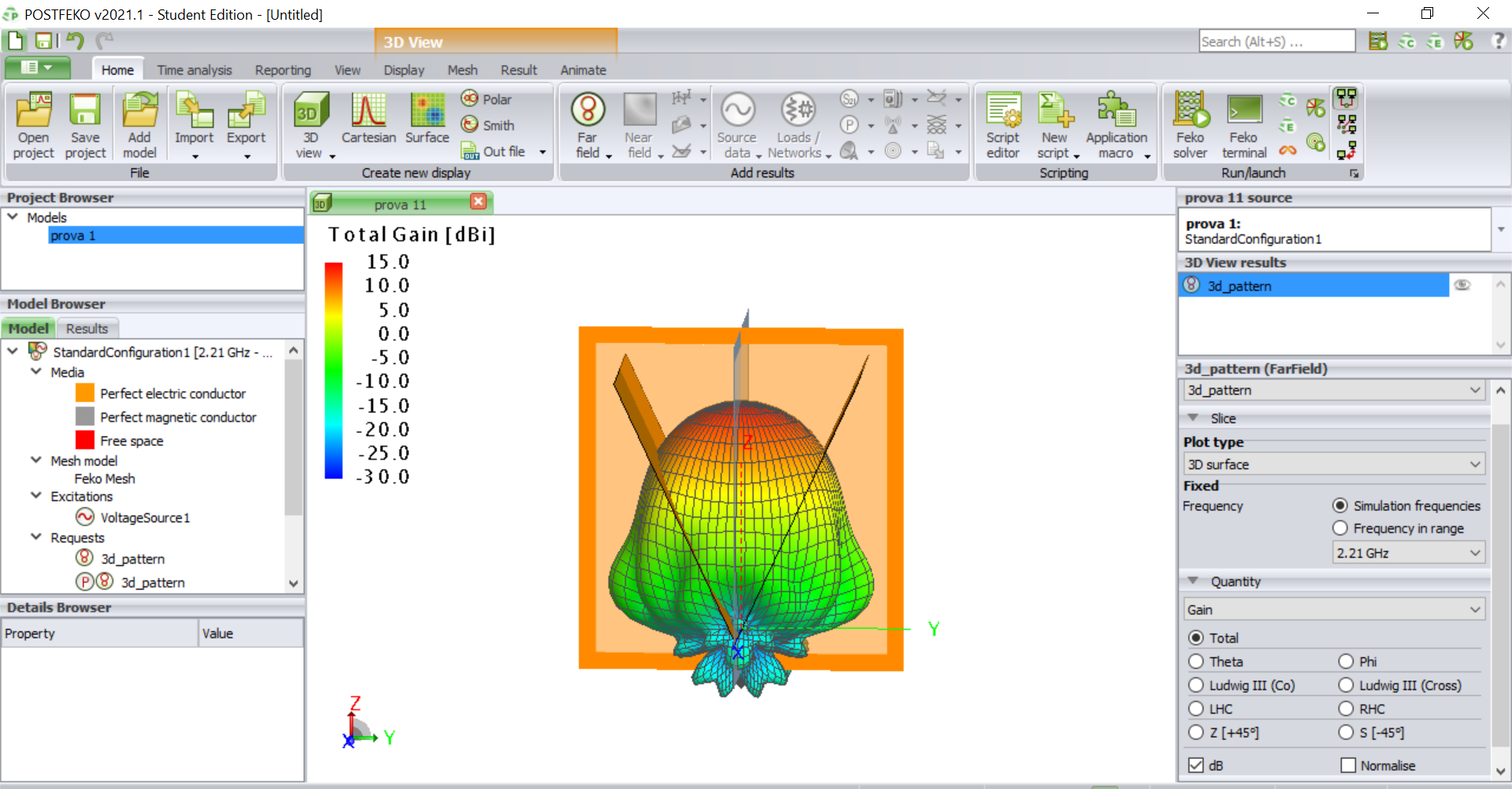

The model thus obtained I opened in POSTFEKO and exported the Feko Far Field

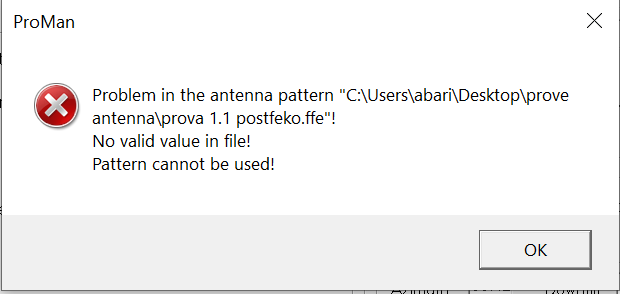

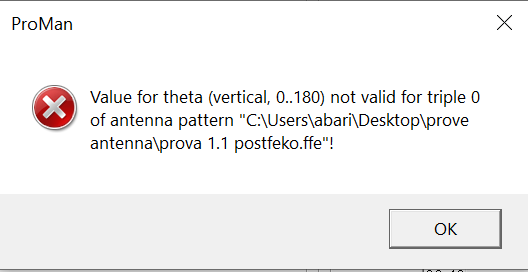

But when I try to load it on ProMan it gives me following error









What am I doing wrong?

Thanks
















GGAMPALA

The problem might be with the order of the theta and phi angles inside the ffe file. The example "Example-D03-Automotive_RADAR" uses an ffe file for antenna pattern. May be you can compare the your ffe file to the example one for format differences.

I would also recommend avoiding 'spaces' in directory names and file names.

When exporting the data to ffe file, I would recommend selectin the 'gain' option:
