Hello TeamI am not able to find following 1D element quality option in Hypermesh 2023(a)duplicate, (b)dependency, (c)free 1d nodes/ free 1d's Kindly share how to check these 1d quality in Hypermesh 2023.Thank you
RegardsSandeep
These checks are included in the "model checker" tool. ( Validate --> Model)
Hello Sandeep,
Please use the model checker to perform checks related for 1Ds.

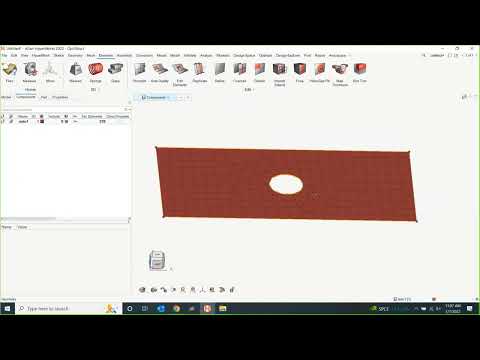

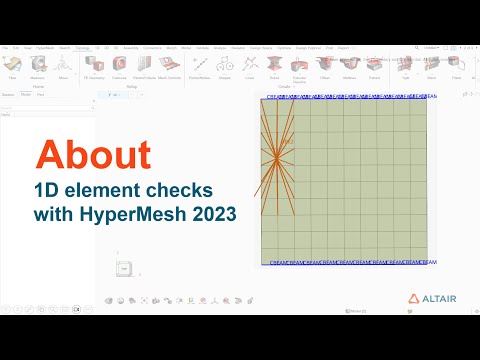

Here are the demo video links on model checker from "Altair How to" Youtube channel.
https://www.youtube.com/watch?v=d1uAO0a0KxA
https://www.youtube.com/watch?v=lnt3E-K9hbY
Thanks
Anjan
