How to run a Abaqus file from HWX user interface (2024)

Anuj Nandal_21993
Anuj Nandal_21993 Altair Community Member
edited September 16 in Community Q&A

I currently use the latest Hypermesh (2024 version). I am new to Abaqus, and I have been asked to run a linear static analysis creating deck from Hyperworks UI. I have tried browsing online, but didn't get concrete tutorials or articles on it (Most of them are of the old GUI). Can someone please guide me to a useful link or let me know step by step how to setup a file (In new GUI).

Browsing internet I did get some sort of way, but I am unable to view the results in Hyperview.

I have tried using the 2023.1 version as well. I am attaching the .inp file for reference. Can someone please go through it and let me know what changes can be done.

Regards,


Tagged:

Answers

  • Jason_Craanen
    Jason_Craanen
    Altair Employee
    edited September 16

    Hello,

    This video is a bit older, but the workflow should be the same.

    https://www.youtube.com/watch?v=ZxxHkpJ_3VM

    If you are having issues with the actual Abaqus setup, you may have to contact Abaqus support. You can setup an analysis for other solvers (such as Abaqus) in Hypermesh, but you should have a good idea of what keywords are needed and how to setup a general analysis.

  • Jason_Craanen
    Jason_Craanen
    Altair Employee
    edited September 16
    Jason Craanen_20442 said:

    Hello,

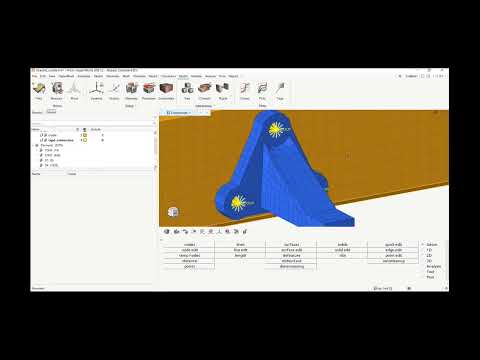

    This video is a bit older, but the workflow should be the same.

    https://www.youtube.com/watch?v=ZxxHkpJ_3VM

    If you are having issues with the actual Abaqus setup, you may have to contact Abaqus support. You can setup an analysis for other solvers (such as Abaqus) in Hypermesh, but you should have a good idea of what keywords are needed and how to setup a general analysis.

    Here are some other videos as well to help with other workflows
