How to measure size and volume of porosity results

Paulo Araujo
Paulo Araujo Altair Community Member
edited January 2021 in Community Q&A

Hi!

I wanted to know how eficiently measure the sizes and volumes of voids results of porosity. I did measured 3 dimensions using MEASURE tool, but could find a way to precisely measure the volume. How can I do that?

Thank you in advance.


Paulo

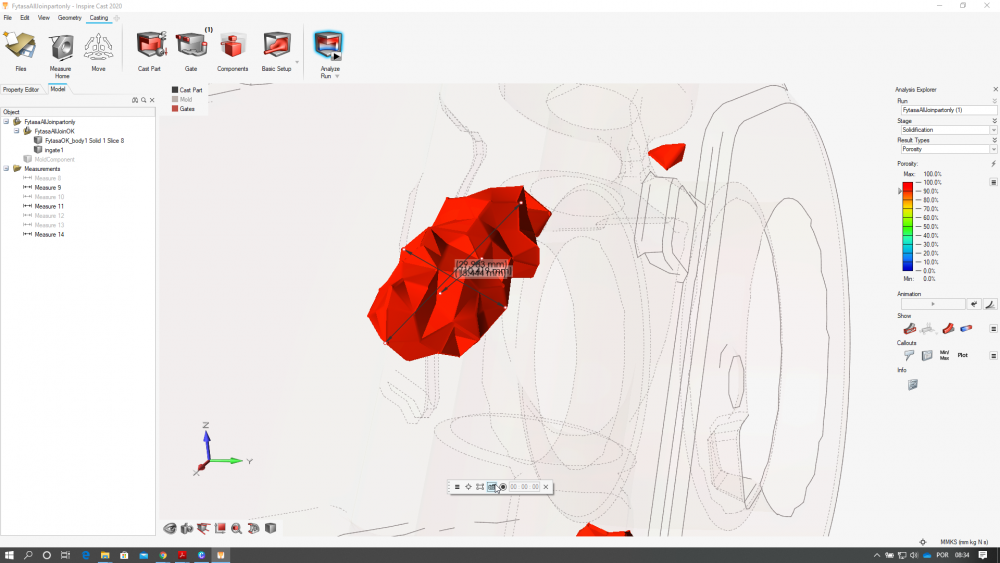

<?xml version="1.0" encoding="UTF-8"?>MEASURE POROSITY VOLUME.png

Tagged:

Answers

  • Junta_20361
    Junta_20361 New Altair Community Member
    edited August 2020

    Hi Paulo,

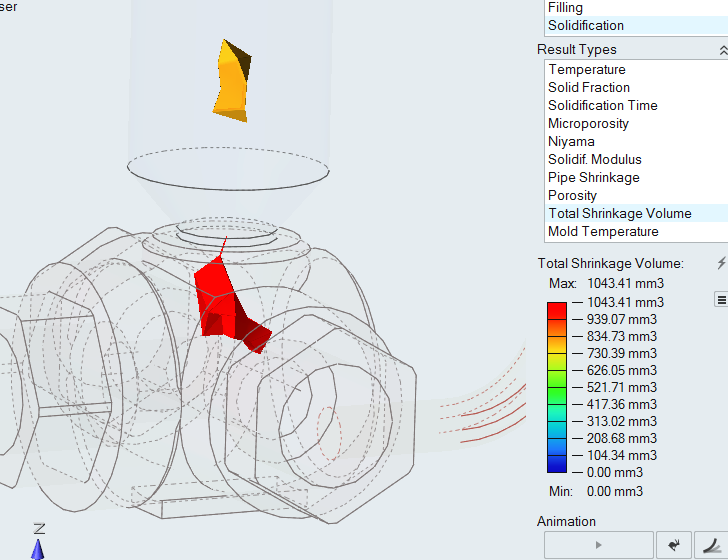

    You can use 'Total Shinkage Voume' result in Solidifcation.
    This is the combination of Porosity and PipeShinkage. The unit is volume already.




  • Paulo Araujo
    Paulo Araujo Altair Community Member
    edited January 2021

    Thank you very Junta. That's quite easy.
