Selection nodes in on a plane by .tcl macro

Mirhan Ozdemir_21843

Hi to all,

Is there any way that I can select the nodes on a plane ( x=12, y=0 and z=0) by a tcl macro. I did it manually on hypermesh but instead of specifying the plane location, node IDs are written in the macro. There are some ways doing it in ANSYS apdl and I wonder can it be done in tcl macro as well.

Thank you.

Adriano Koga_20259

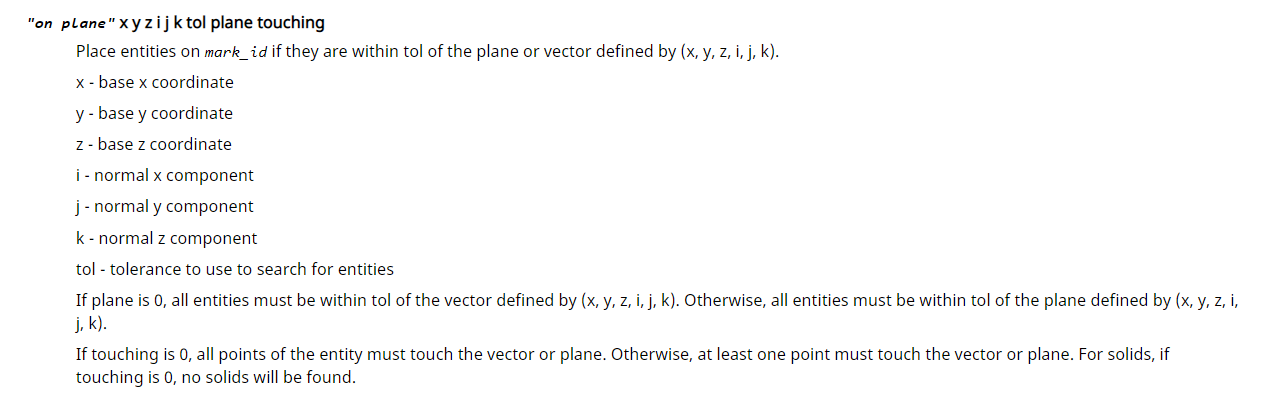

you may want to take a look at the documentation for *createmark, using the option 'on plane'.

take a look at this topic.

https://community.altair.com/community?id=community_question&sys_id=0586c83a1b2bd0908017dc61ec4bcb5e
