Hi,
Is it possible to change element normal of a shell element (QUAD4) in HM?. In other words, I have a shell elements which has a normal vector ( 1i+2j+3k), but I would like to change its normal to (5i-3j+3k).
Thank you.

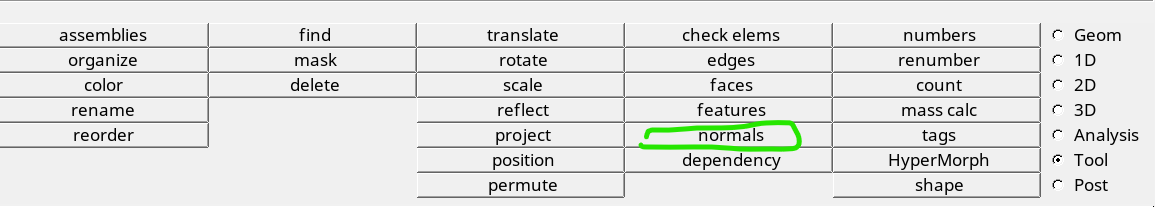

you can use the 'normals' panel
select your elem and click reverse.

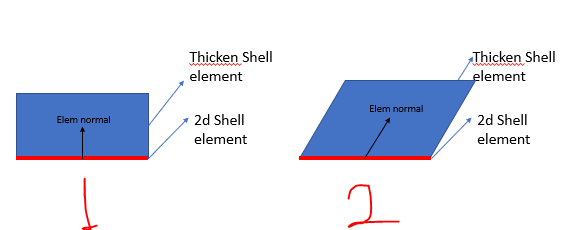

sir thank for your respond, but I am looking for a tool which will help me to change thickness direction of the shell elements. This tools helps to reverse thickness direction. However, ı want to change the elem normals as in the following figure.
