Not getting edges when creating a surface

ATLURI BHARATH KUMAR
ATLURI BHARATH KUMAR Altair Community Member
edited April 25 in Community Q&A

Hi,

I am trying to create a surface between two circular lines.

But sometimes I am not getting edges of that surface. Instead, I am getting surface as shown below

Further, I want to use these edges to perform washer split. The washer split is not happening




Thanks i advance for any help

Tagged:

Answers

  • Michael Herve_21439
    Michael Herve_21439
    Altair Employee
    edited April 25

    Hello @ATLURI BHARATH KUMAR ,



    are you looking for washers for 2D mesh or ofor 3D mesh? If you are looking for washers for 2D mesh, then the state of the art method in HyperMesh (either classic or new interface) is the batchmesh/QI optimize, with the use of param and criteria file:

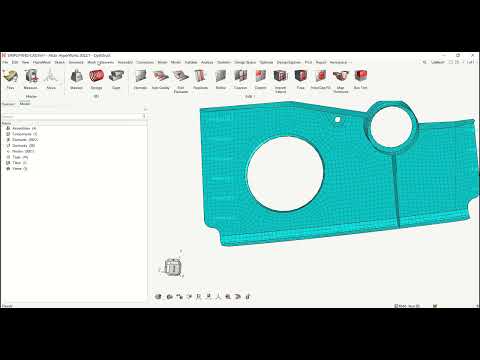

    https://youtu.be/RaGIyKehFdY?si=U2yE31rq88xOMxw2

    This will prevent you to create washer lines for each hole.



    Best Regards,

    Michael

  • ATLURI BHARATH KUMAR
    ATLURI BHARATH KUMAR Altair Community Member
    edited April 25
    Michael Herve_21439 said:

    Hello @ATLURI BHARATH KUMAR ,



    are you looking for washers for 2D mesh or ofor 3D mesh? If you are looking for washers for 2D mesh, then the state of the art method in HyperMesh (either classic or new interface) is the batchmesh/QI optimize, with the use of param and criteria file:

    https://youtu.be/RaGIyKehFdY?si=U2yE31rq88xOMxw2

    This will prevent you to create washer lines for each hole.



    Best Regards,

    Michael

    Hi @Michael Herve, Thanks for the reply

    Is there any possibility to resolve this surface edge issue when creating surface manually also?

    I am able to resolve using geometry cleanup tolerance as 0.001 to some extent, but not completely..



    Thanks in advance

  • Michael Herve_21439
    Michael Herve_21439
    Altair Employee
    edited April 25

    Hello again,



    I am not sure to understand how to fix the behavior you are raising as a surface should have edges any time. It should not exist without edges, so if you are not able to see or pick edges, it would be to me rlated to graphical glitches, or the pick-up tolerance. Is your model in millimeters or meters?



    Regards,

    Michael

  • ATLURI BHARATH KUMAR
    ATLURI BHARATH KUMAR Altair Community Member
    edited April 25
    Michael Herve_21439 said:

    Hello again,



    I am not sure to understand how to fix the behavior you are raising as a surface should have edges any time. It should not exist without edges, so if you are not able to see or pick edges, it would be to me rlated to graphical glitches, or the pick-up tolerance. Is your model in millimeters or meters?



    Regards,

    Michael

    my model is in millimeters
